Description

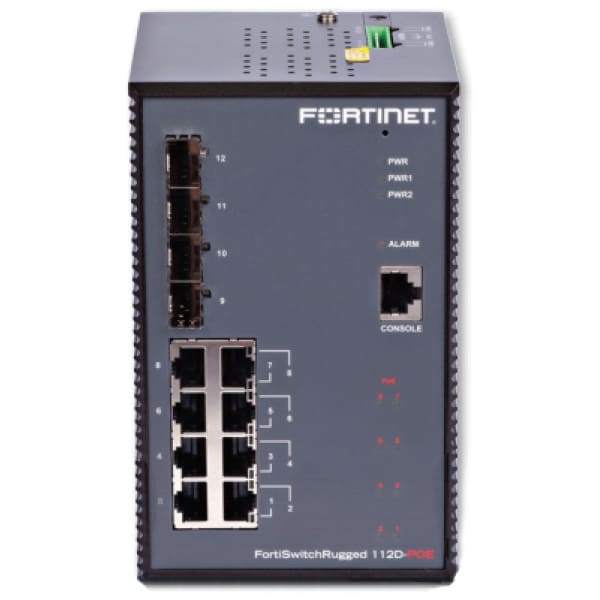

FortiSwitch Rugged switches deliver all of the performance and security of the trusted FortiSwitch Secure, Simple, Scalable Ethernet solution, but with added reinforcement that makes them ideal for deployments in harsh environments.
Resilient, sturdy and capable of withstanding intense temperature fluctuations, FortiSwitch Rugged ensures the integrity and performance of mission-critical networks in even the most challenging of deployments.
Add Ruggedized FortiGate for Tough and Powerful Protection
Engineered to survive in hostile environments with an extreme temperature range, the combination of FortiGate Rugged network security appliances with the FortiSwitch Rugged provides a connected network security solution.
Simple Network Deployment
The Power over Ethernet (PoE) capability enables simple installation of cameras, sensors and wireless access points in the network, with power and data delivered over the same network cable. There is no need to contract electricians to install power for your PoE devices, reducing your overall network TCO.
| Feature |
Feature Value |
| Switch type |
Managed |
| Switch layer |
L2 |
| Web-based management |
Yes |
| ARP inspection |
Yes |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
4 |
| Console port |
DB9 |
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support |
No |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Auto-negotiation |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
Private VLAN, Tagged VLAN |
| Number of VLANs |
4000 |
| MAC address table |
8000 entries |
| Switching capacity |
24 Gbit/s |
| Throughput |
46 Mpps |
| Jumbo frames support |
Yes |
| DHCP features |
DHCP client, DHCP snooping |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| SSH/SSL support |
Yes |
| Multicast support |
Yes |
| Product colour |
Grey |
| LED indicators |
Link, PoE, Power, Status |
| International Protection (IP) code |
IP30 |
| Wall mountable |
Yes |
| DIN rail mounting |
Yes |
| Certification |
CE, FCC, UL/cUL, RoHS, BSMI, WEEE |
| Memory type |
DRAM |
| Internal memory |
512 MB |
| Flash memory |
512 MB |
| Firmware upgradeable |
Yes |
| Mean time between failures (MTBF) |
262800 h |
| Power supply included |
Yes |
| Redundant power supply (RPS) support |
Yes |
| Power protection features |
Reverse polarity |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
30 W |
| Operating temperature (T-T) |
-40 – 75 °C |
| Storage temperature (T-T) |
-40 – 85 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Heat dissipation |
69.6 BTU/h |
| Width |
96.4 mm |
| Depth |
105.5 mm |
| Height |
154 mm |
| Weight |
1.23 kg |
| Harmonized System (HS) code |
85176990 |
