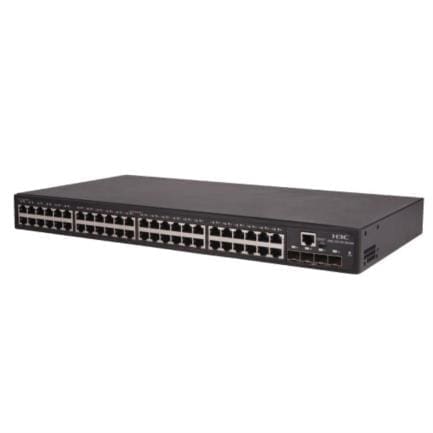

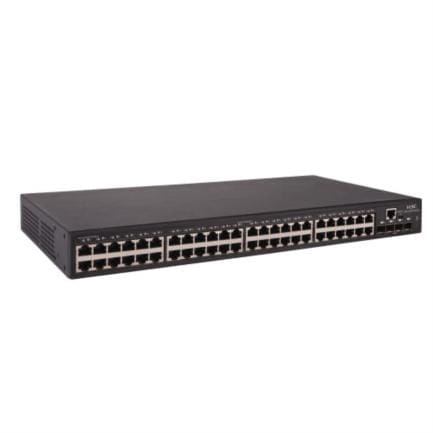

H3C S5130S-52S-EI Managed Gigabit Ethernet (10/100/1000) Black

Part No:

9801A410

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

A

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: 9801A410 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
H3C Logo

Related products

Description

H3C S5130S-EI Series Switches – A simple (fixed power design), cost-effective and easy to deploy access switching solution with POE+ that offer enhanced security, high-density GE and 10GbE uplinks, static route, RIP, OSPF, SDN and IRF enabled, flexible management, which meet the requirements for SME access, enterprise desktop access and high-density campus access.

Feature Feature Value
Switch type Managed
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
SFP+ module slots quantity 4
Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Yes
VLAN support Yes
Virtual LAN features Port-based VLAN, Private VLAN, VLAN mapping, Voice VLAN
Number of VLANs 4096
MAC address table 16000 entries
Switching capacity 176 Gbit/s
Forwarding rate 131 Mpps
Jumbo frames support Yes
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) Yes
Authentication type HWTACACS, RADIUS
Multicast support Yes
Rack mounting Yes
Stackable Yes
Product colour Black
Built-in processor Yes
Processor frequency 800 MHz
Internal memory 512 MB
Flash memory 256 MB
Power source AC
Power supply included Yes
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Power consumption (max) 41 W
Power over Ethernet (PoE) No
Bandwidth 80 Gbit/s
Operating temperature (T-T) -5 – 50 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 95%
Storage relative humidity (H-H) 5 – 95%
Width 440 mm
Depth 230 mm
Height 43.6 mm
Weight 3.5 kg

Additional information

Switch type

Managed
SFP module slots quantity

4
10G support

Yes
Virtual LAN features

Port-based VLAN, Private VLAN, VLAN mapping, Voice VLAN
MAC address table

16000 entries
Forwarding rate

131 Mpps
DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping
Authentication type

HWTACACS+, RADIUS
Rack mounting

Yes
Product colour

Black
Processor frequency

800 MHz
Flash memory

256 MB
Power supply included

Yes
AC input frequency

50/60 Hz
Power over Ethernet (PoE)

No
Operating temperature (T-T)

5 – 50 °C
Width

440 mm
Height

43.6 mm
Networking standards
VLAN support

Yes
Number of VLANs

4096
Switching capacity

176 Gbit/s
Jumbo frames support

Yes
Access Control List (ACL)

Yes
Multicast support

Yes
Stackable

Yes
Built-in processor

Yes
Internal memory

512 MB
Power source

AC
AC input voltage

100 – 240 V
Power consumption (max)

41 W
Bandwidth

80 Gbit/s
Storage temperature (T-T)

-40 – 70 °C
Depth

230 mm
Weight

3.5 kg

Brand

H3C
