Description
The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers an innovative approach to dealing with network demands in the mobile, cloud, and IoT era. CX 8325 Switch Series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. CX 8325 provides line rate 1GbE, 10GbE, 25GbE, and 40GbE in a compact 1U form factor. CX 8325P, delivers key solutions for providers in their 5G (Radio Access Network) and edge computing deployments. CX 8325H are high-performance 1/10/25/40/100G half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.
What is new supporting point:
High-performance with 2,000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or End of Row (EoR).
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock.

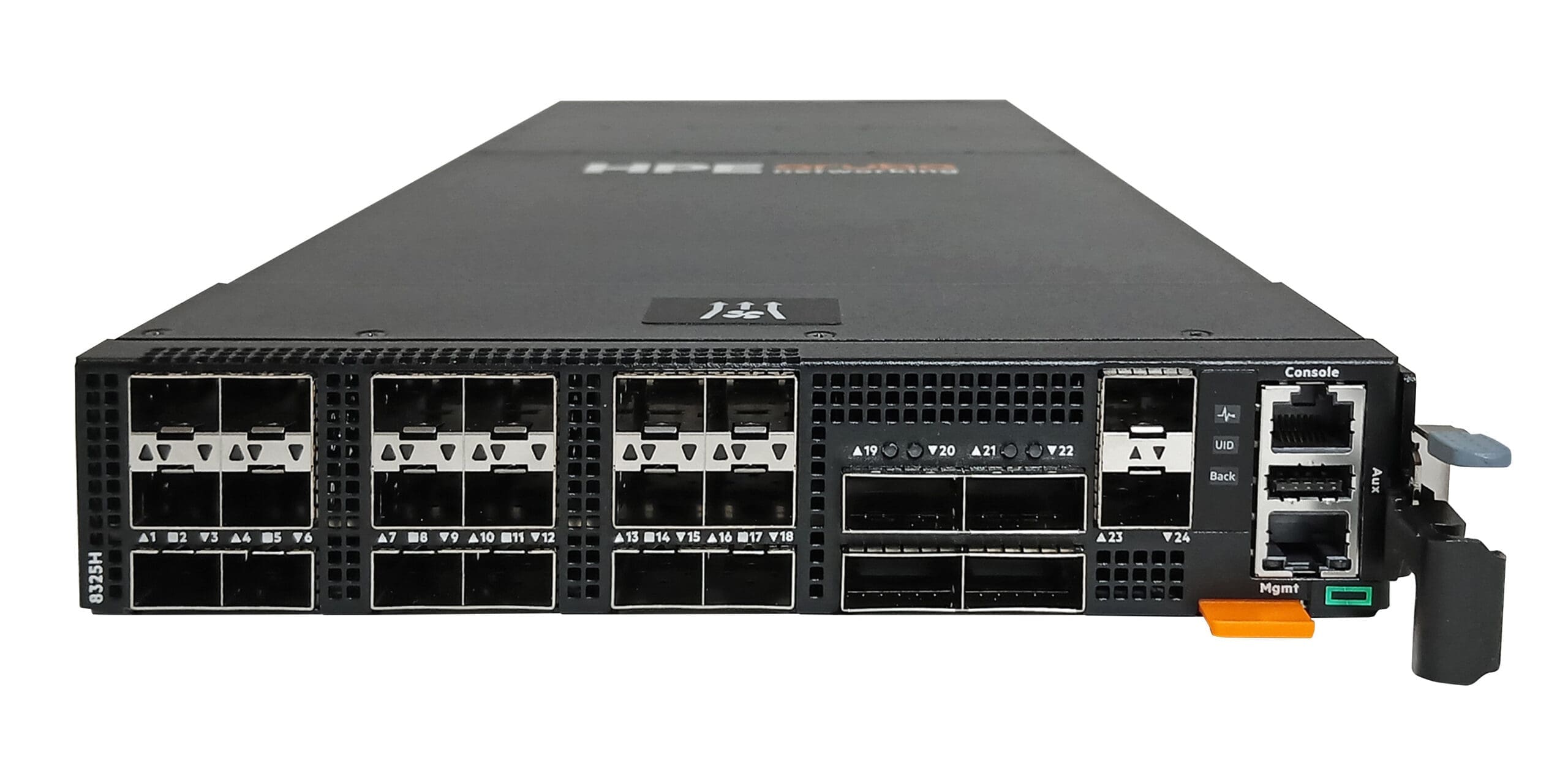

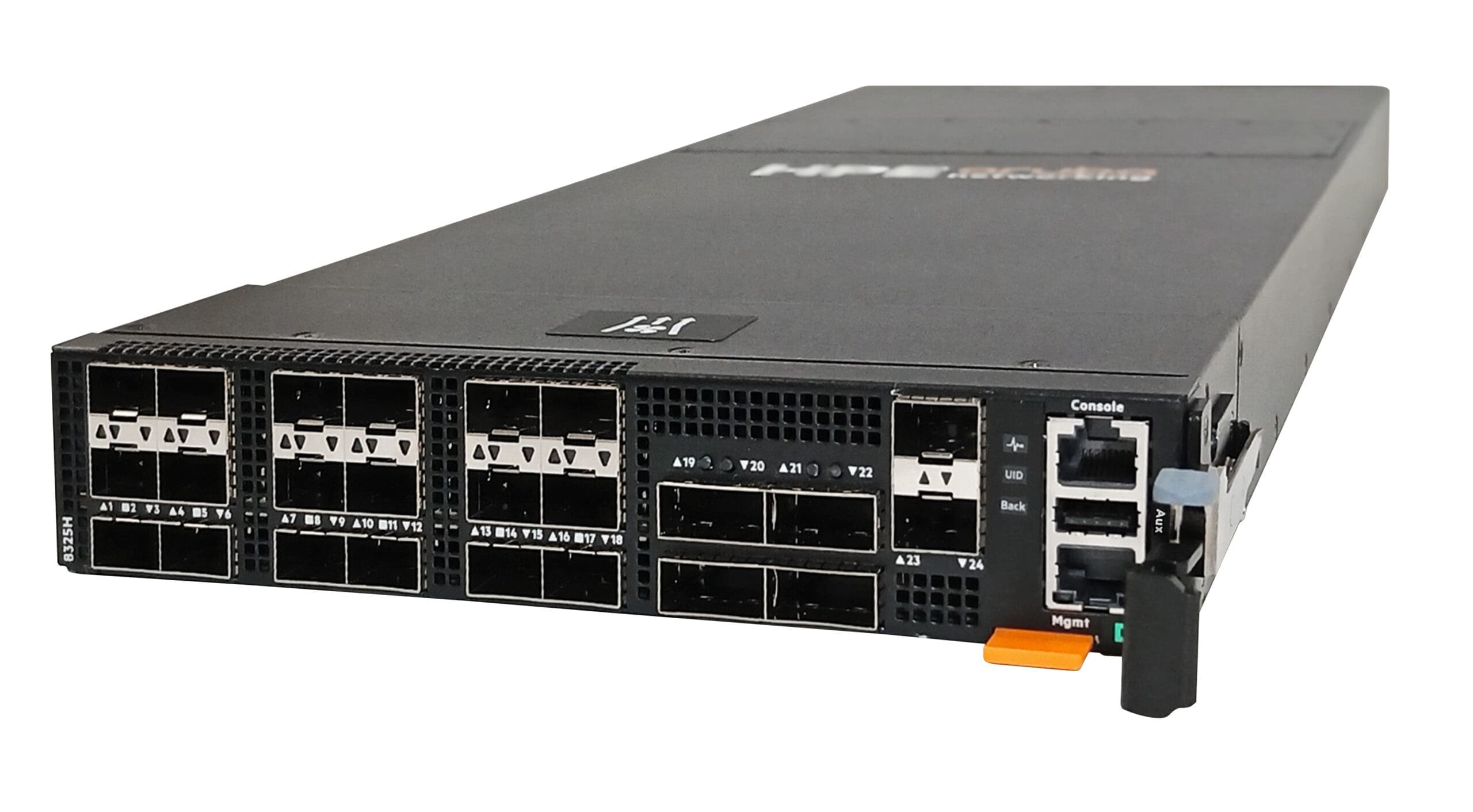

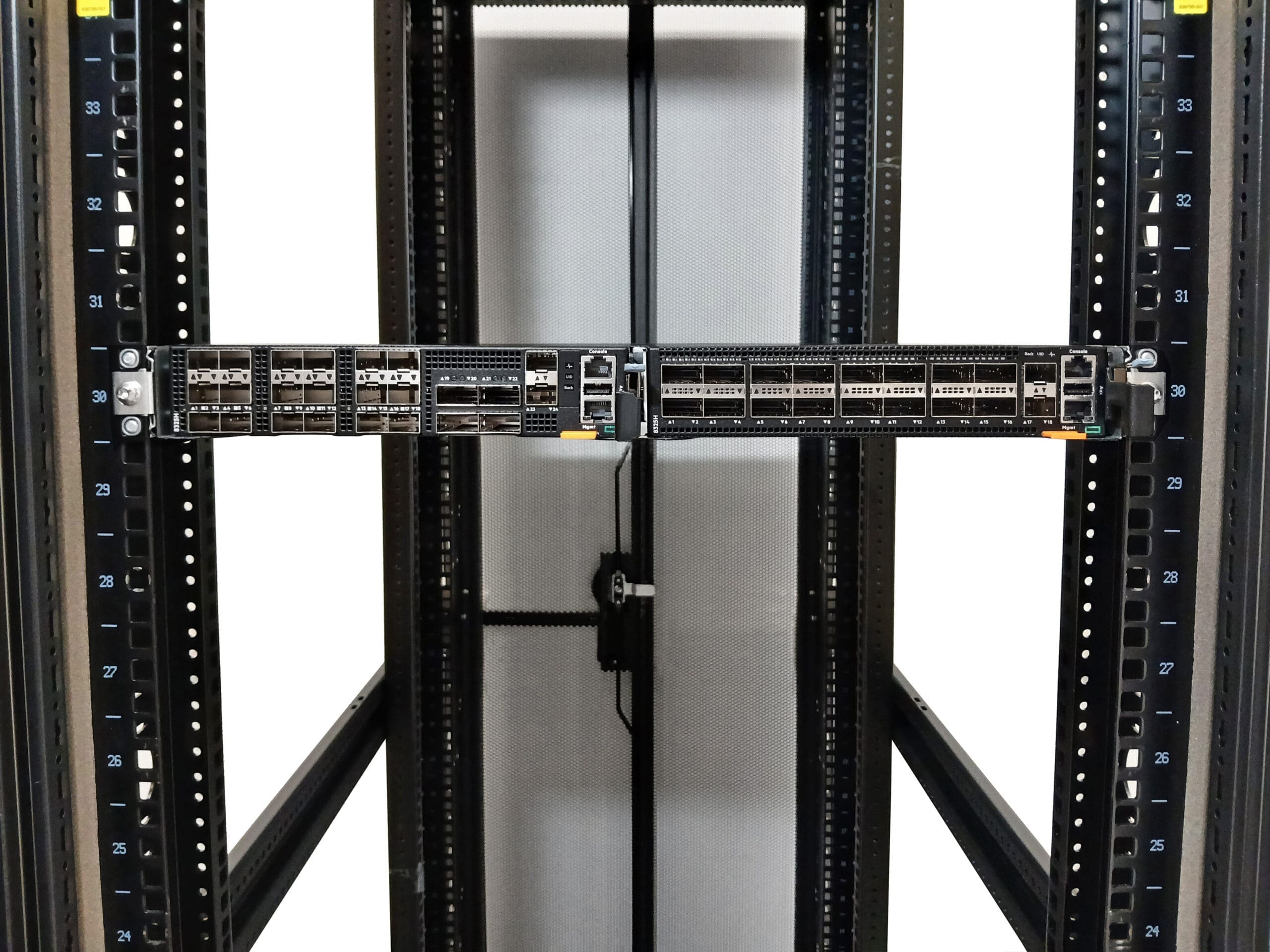

CX 8325H has two variations: • 2.16Tbps half-width fixed switch that supports 18 ports of 1/10/25 and 4 ports of 40/100GbE • 4Tbps half-width fixed switch that supports 16 ports of 40/100 GbE
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High availability with industry-leading VSX redundancy, and redundant power supplies and fans.
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN.
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, and IPv6.
| Feature |
Feature Value |
| Switch type |
Managed |
| Switch layer |
L3 |
| Quality of Service (QoS) support |
Yes |
| Cloud-managed |
Yes |
| Basic switching RJ-45 Ethernet ports quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
No |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| SFP+ module slots quantity |
2 |
| Fiber ports quantity |
24 |
| Fiber optic connector |
QSFP28, SFP+, SFP28 |
| QSFP28 ports quantity |
4 |
| SFP28 ports quantity |
18 |
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Ethernet LAN data rates |
1000,10000,25000,40000,100000 Mbit/s |
| VLAN support |
Yes |
| Virtual LAN features |
Private VLAN |
| Number of VLANs |
4040 |
| Switching capacity |
2160 Gbit/s |
| Throughput |
1000 Mpps |
| Jumbo frames support |
Yes |
| Packet buffer memory |
32 MB |
| DHCP features |
DHCP relay, DHCP server |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| SSH/SSL support |
Yes |
| Authentication type |
RADIUS, TACACS+ |
| Multicast support |
Yes |
| Management protocols |
SNMP v2c, SNMP v3, RMON |
| Routing protocols |
BGP, BGP4, OSPF, OSPFv2, OSPFv3, RIPng, VRRP |
| Rack mounting |
Yes |
| Stackable |
Yes |
| Form factor |
1U |
| Airflow direction |
Back-to-front airflow |
| Number of fans |
4 fan(s) |
| Built-in processor |
Yes |
| Internal memory |
32768 MB |

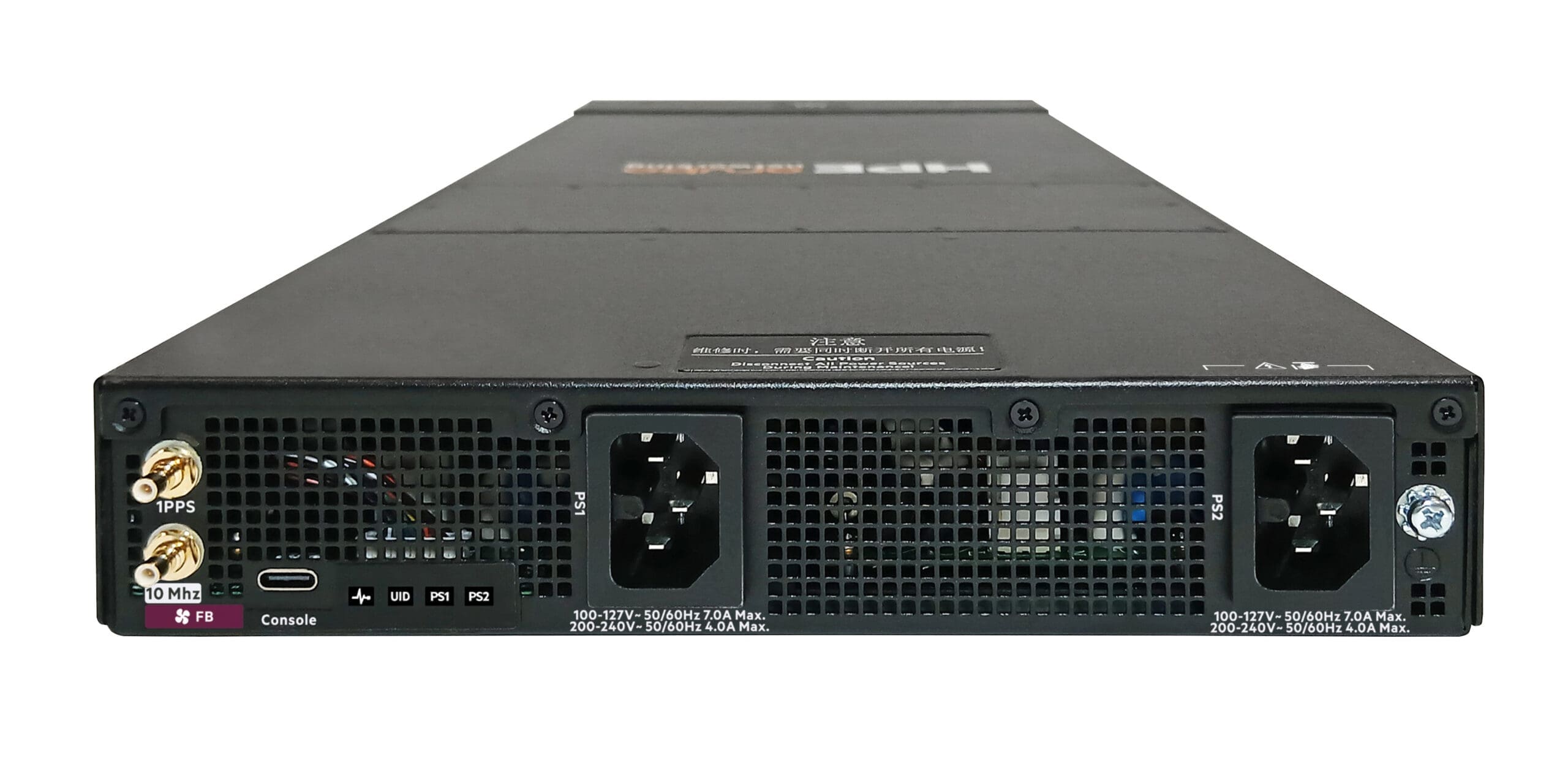

| Power source |
AC |
| Power supply included |
Yes |
| Number of power supply units |
2 |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
500 W |
| Power over Ethernet (PoE) |
No |
| Heat dissipation |
1705 BTU/h |
