HPE FlexNetwork 5130 24G 4SFP+ EI Managed L3 Gigabit Et
This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

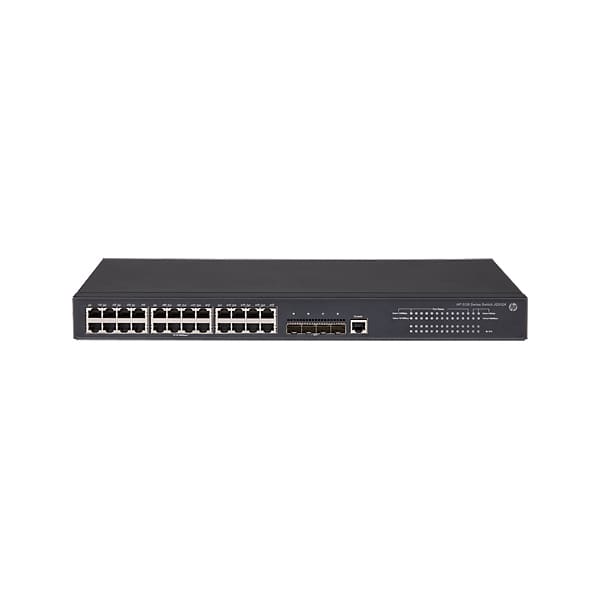

HP Switch 5130-24G-4SFP+ 24xGBit/4xSFP+ JG932A
Description
The HPE 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise class QoS and security, Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet.
The 5130 EI Switch Series can be managed with HPE Intelligent Management Center (IMC) for a single view of your entire network.
Features
Scalable and Flexible Access Layer Switches
– The HPE 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium- and large-enterprise campus networks. The 5130 supports stacking, fixed 10GbE ports, static layer 3 routing and RIP v1/v2, PoE+, ACLs, IPv6 and power savings with Energy Efficient Ethernet.
– Intelligent Resilient Fabric (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks.
– Four fixed 10GbE uplinks (SFP+ and 10GBASE-T) deliver performance for bandwidth intensive applications.
– Includes Software-defined Network (SDN) capabilities with OpenFlow 1.3 support for future proofing your network.
– Limited Lifetime Warranty and no software licensing required.
Improved Quality of Service with Traffic Management
– The HPE 5130 EI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
– Provides traffic prioritization with supported congestion actions include: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate.
– Reduce unwanted network traffic with broadcast control allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.
Comprehensive Security Control
– The HPE 5130 EI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control.
– ACLs provide IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL.
– Security with encryption of access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, dynamic ARP protection and RADIUS/HWTACAS.
Single View of the Network
– The HPE 5130 EI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
– RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Feature | Feature Value |
---|---|
Switch type | Managed |
Switch layer | L3 |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
SFP+ module slots quantity | 4 |
Console port | RJ-45 |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
10G support | Yes |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Full duplex | Yes |
IP routing | Yes |
Flow control support | Yes |
Link aggregation | Yes |
Broadcast storm control | Yes |
Auto MDI/MDI-X | Yes |
Spanning tree protocol | Yes |
Auto-sensing | Yes |
VLAN support | Yes |
MAC address table | 16384 entries |
Switching capacity | 128 Gbit/s |
Throughput | 96 Mpps |
Latency (1 Gbps) | 5 µs |
Latency (10 Gbps) | 3 µs |
Jumbo frames support | Yes |
Packet buffer memory | 1.5 MB |
DHCP features | DHCP server, DHCP client |
Access Control List (ACL) | Yes |
IGMP snooping | Yes |
SSH/SSL support | Yes |
Authentication | MAC-based authentication |
Rack mounting | Yes |
Stackable | Yes |
Form factor | 1U |
Product colour | Black |
Physical stacking (units) | 9 |
Memory type | SDRAM |
Internal memory | 1024 MB |
Flash memory | 512 MB |
Power source | AC |
Power supply included | Yes |
AC input voltage | 100 – 240 V |
AC input frequency | 50 – 60 Hz |
Power consumption (typical) | 19 W |
Power consumption (max) | 26 W |
Power over Ethernet (PoE) | No |
Operating temperature (T-T) | -5 – 45 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 10 – 90% |
Storage relative humidity (H-H) | 5 – 95% |
Width | 440 mm |
Depth | 160 mm |
Height | 43.6 mm |
Weight | 5 kg |
Additional information
Switch type | Managed |
---|---|
SFP module slots quantity | 4 |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
IP routing | Yes |
Link aggregation | Yes |
Auto MDI/MDI-X | Yes |
Auto-sensing | Yes |
MAC address table | 16384 entries |
Throughput | 96 Mpps |
Latency (10 Gbps) | 3 µs |
Packet buffer memory | 1.5 MB |
Access Control List (ACL) | Yes |
SSH/SSL support | Yes |
Rack mounting | Yes |
Form factor | 1U |
Physical stacking (units) | 9 |
Internal memory | 1024 MB |
Power source | AC |
AC input voltage | 100 – 240 V |
Power consumption (typical) | 19 W |
Power over Ethernet (PoE) | No |
Storage temperature (T-T) | -40 – 70 °C |
Depth | 160 mm |
Weight | 5 kg |
Switch layer | L3 |
Web-based management | Yes |
Console port | RJ-45 |
10G support | Yes |
Full duplex | Yes |
Flow control support | Yes |
Broadcast storm control | Yes |
Spanning tree protocol | Yes |
VLAN support | Yes |
Switching capacity | 128 Gbit/s |
Latency (1 Gbps) | 5 µs |
Jumbo frames support | Yes |
DHCP features | DHCP server, DHCP client |
IGMP snooping | Yes |
Authentication | MAC-based authentication |
Stackable | Yes |
Product colour | Black |
Memory type | SDRAM |
Flash memory | 512 MB |
Power supply included | Yes |
AC input frequency | 50/60 Hz |
Power consumption (max) | 26 W |
Operating temperature (T-T) | 5 – 45 °C |
Width | 440 mm |
Height | 43.6 mm |
