Juniper EX2300-24T Network Switch. UK Price

Part No:
EX2300-24T
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£639.70
£767.64
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

EX2300 24-PORT

Available on back-order

Safe & Secure shopping

SKU: EX2300-24T Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Juniper Networks

Related products

Description

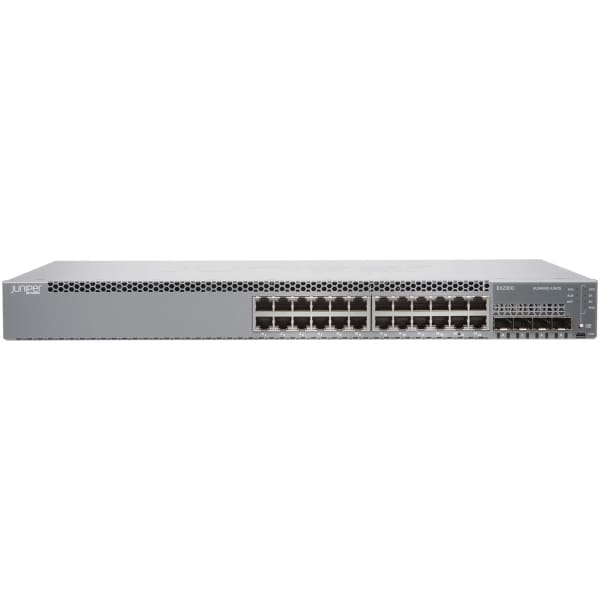

Juniper Networks EX2300-24T Network Switch UK Price

EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.

The Juniper Networks EX2300-24T offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices.

Both models support Juniper’s unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.

First Order Discount available with Juniper Networks EX2300-24T UK Price. Phone our Juniper Team on: 0203 617 7663

Feature Feature Value
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Y
Web-based management Y
ARP inspection Y
System event log Y
MIB support RFC 1155, RFC 1157, RFC 1212, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1724, RFC 1905, RFC 1981, RFC 2011, RFC 2012, RFC 2013, RFC 2096, RFC 2287, RFC 2460, RFC 2464, RFC 2570-2575, RFC 2576, RFC 2578, RFC 2579, RFC 2665, RFC 2819, RFC 2863, RFC 2922, RFC 2925, RFC 3413, RFC 3414, RFC 3415, RFC 3484, RFC 3621, RFC 4188, RFC 4213, RFC 4291, RFC 4363, RFC 4443, RFC 4861, RFC 4862
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
10G support Y
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring Y
IP routing Y
Link aggregation Y
Rate limiting Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
VLAN support Y
Virtual LAN features Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs 4093
Fiber ethernet cabling technology 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Throughput 95 Mpps
Store-and-forward Y
Jumbo frames support Y
Jumbo frames 9216
DHCP features DHCP server, DHCP client
Access Control List (ACL) Y
Access Control List (ACL) rules 1500
IGMP snooping Y
Security algorithms 802.1x RADIUS, HTTPS, SNMP, SSH-2
Multicast support Y
Rack mounting Y
Form factor 1U
Product colour Grey
Safety UL-UL60950-1, C-UL CAN/CSA 22.2 #.60950-1, TUV/GS EN 60950-1, CB-IEC60950-1, EN 60825-1
Electromagnetic compatibility FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, CISPR 22 A, EN 55024, EN 300386, CE
Certification ROHS
Built-in processor Y
Processor frequency 1250 MHz
Memory type DRAM
Internal memory 2000 MB
Flash memory 2000 MB
Noise level 34.2 dB
Power consumption (max) 55 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 45 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 10 – 85%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 3962 m
Non-operating altitude 0 – 4572 m
Width 441.9 mm
Depth 259 mm
Height 44.5 mm
Weight 3.29 kg
Harmonized System (HS) code 85176990


Additional information

Switch type

Managed
ARP inspection

Y
Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
IP routing

Y
Rate limiting

Y
Spanning tree protocol

Y
Virtual LAN features

Private VLAN, Tagged VLAN, Port-based VLAN
Switching capacity

128 Gbit/s
Store-and-forward

Y
Jumbo frames

9216
Access Control List (ACL)

Y
IGMP snooping

Y
Multicast support

Y
Form factor

1U
Safety

UL-UL60950-1, C-UL CAN/CSA 22.2 #.60950-1, TUV/GS EN 60950-1, CB-IEC60950-1, EN 60825-1
Certification

RoHS
Processor frequency

1250 MHz
Internal memory

2000 MB
Noise level

34.2 dB
Power over Ethernet (PoE)

N
Storage temperature (T-T)

-40 – 70 °C
Non-operating altitude

0 – 4572 m
Depth

259 mm
Weight

3.29 kg
Switch layer

L2/L3
Web-based management

Y
System event log

Y
SFP module slots quantity

4
10G support

Y
Port mirroring

Y
Link aggregation

Y
Auto MDI/MDI-X

Y
VLAN support

Y
Number of VLANs

4093
MAC address table

16000 entries
Throughput

95 Mpps
Jumbo frames support

Y
DHCP features

DHCP server, DHCP client
Security algorithms

802.1x RADIUS, HTTPS, SNMP, SSH-2
Rack mounting

Y
Product colour

Grey
Built-in processor

Y
Memory type

DRAM
Flash memory

2000 MB
Power consumption (max)

55 W
Operating temperature (T-T)

0 – 45 °C
Operating altitude

0 – 3962 m
Width

441.9 mm
Height

44.5 mm
Harmonized System (HS) code

85176990

Brand

Juniper Networks
