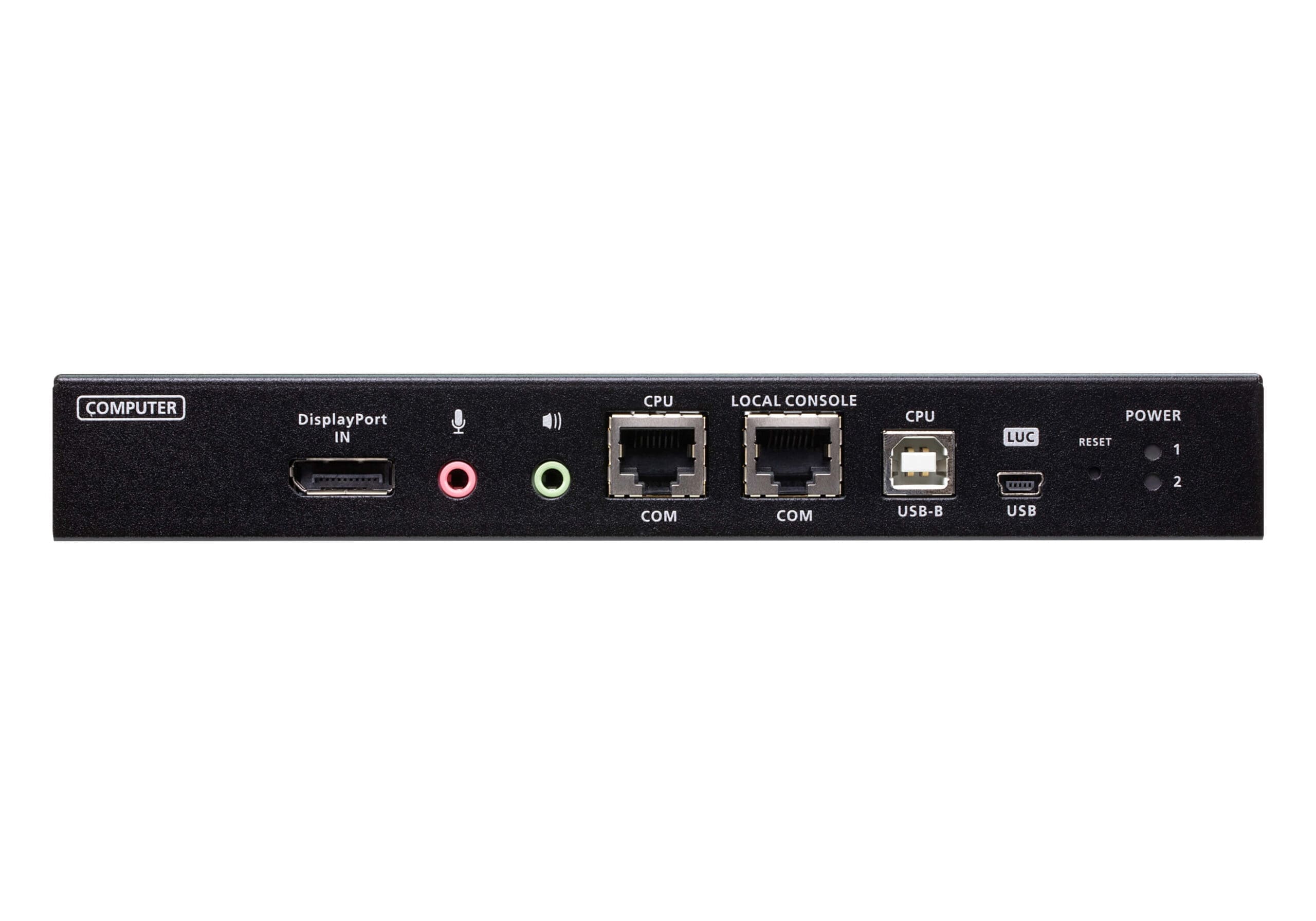

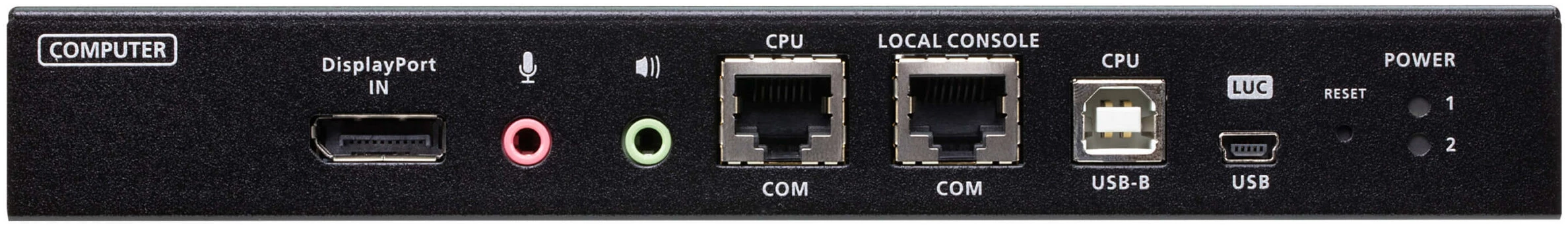

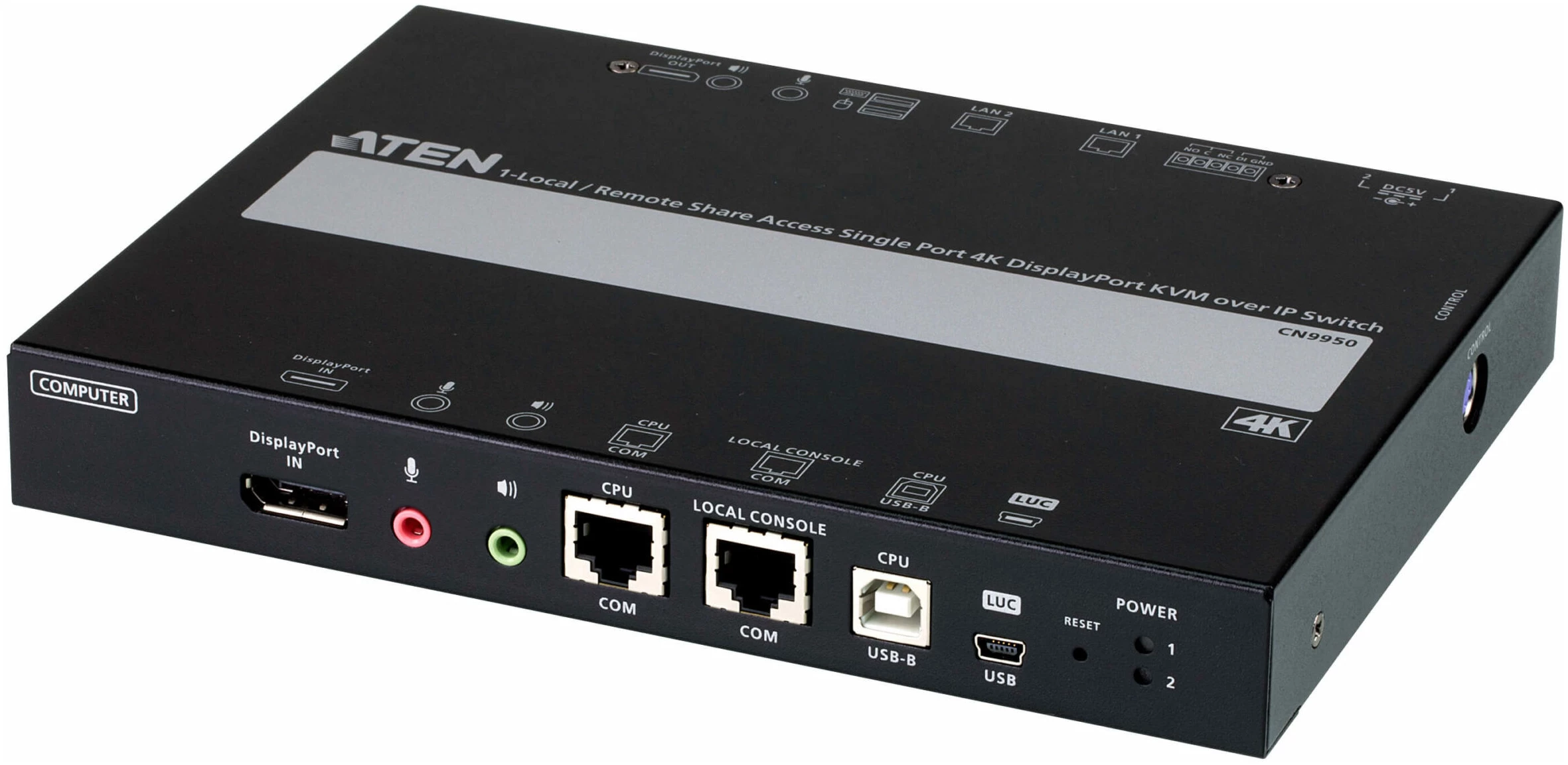

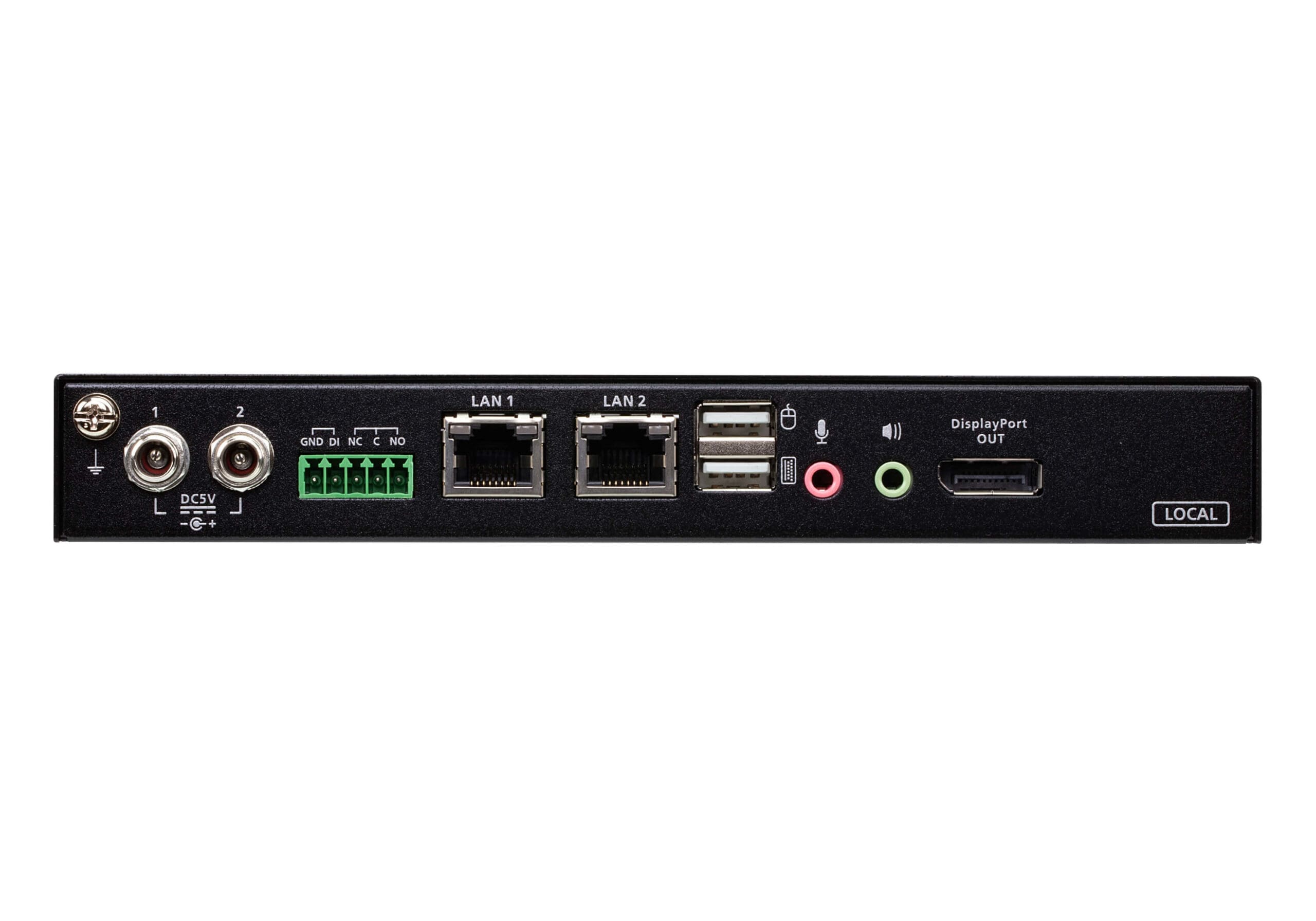

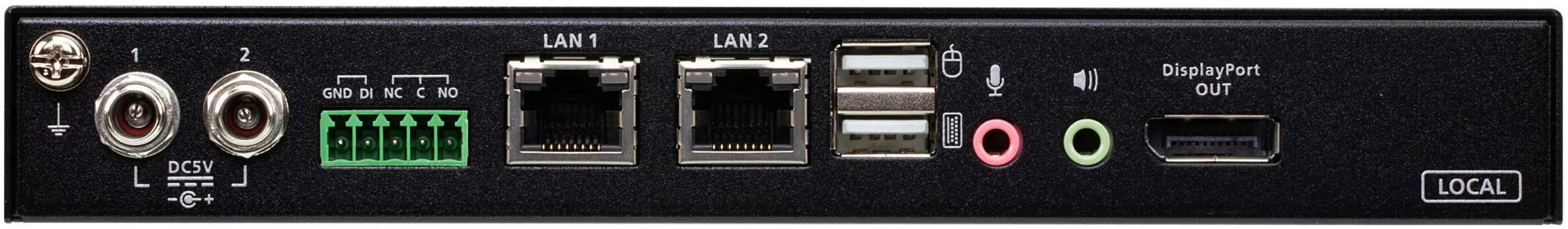

ATEN 1-Local/Remote Share Access Single Port 4K DisplayPort KVM over IP Switch

Part No:

CN9950

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

1-Local/Remote Single Port 4K DP KVM OIP

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CN9950 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

1x CN9950 4K DisplayPort KVM over IP Switch
1x DisplayPort cable
1x USB cable (USB-A to USB-B)
1x USB cable (USB-A to Mini-USB)
1x power adapter
1x control terminal block
1x mounting kit
1x foot pad set
1x user instructions

Feature Feature Value
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
DisplayPorts quantity 2
USB 2.0 Type-B ports quantity 1
Console USB ports quantity 2
USB connector type Mini-USB B
PS/2 ports quantity 1
Serial port type RJ-45
Serial ports quantity 2
Audio connections Yes
Headphone outputs 2
Number of microphone inputs 2
DC-in jack Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 2
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 30 Hz
Product colour Black
Housing material Metal
LED indicators Yes
Built-in display No
Power source DC
DC input voltage 5 V
Power consumption (typical) 9.76 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 149.3 mm
Depth 200 mm
Height 28.5 mm
Weight 1.25 kg
Package width 98 mm
Package depth 325 mm
Package height 210 mm
Package weight 1.67 kg
Cables included DisplayPort, USB, USB Type-A to USB Type-B
Manual Yes
AC adapter included Yes
Master (outer) case net weight 6.25 kg
Harmonized System (HS) code 85176200
Master (outer) case width 342 mm
Master (outer) case length 512 mm
Master (outer) case height 232 mm
Master (outer) case gross weight 8.98 kg
Products per master (outer) case 5 pc(s)

Additional information

Keyboard port type

USB
Video port type

DisplayPort
DisplayPorts quantity

2
Console USB ports quantity

2
PS/2 ports quantity

1
Serial ports quantity

2
Headphone outputs

2
DC-in jack

Yes
Ethernet LAN (RJ-45) ports

2
Maximum resolution

4096 x 2160 pixels
Product colour

Black
LED indicators

Yes
Power source

DC
Power consumption (typical)

9.76 W
Storage temperature (T-T)

-20 – 60 °C
Width

149.3 mm
Height

28.5 mm
Package width

98 mm
Package height

210 mm
Cables included

DisplayPort, USB, USB Type-A to USB Type-B
AC adapter included

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

512 mm
Mouse port type

USB
Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB connector type

Mini-USB B
Serial port type

RJ-45
Audio connections

Yes
Number of microphone inputs

2
Ethernet LAN

Yes
HD type

4K Ultra HD
Video bandwidth

30 Hz
Housing material

Metal
Built-in display

No
DC input voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Depth

200 mm
Weight

1.25 kg
Package depth

325 mm
Package weight

1.67 kg
Manual

Yes
Master (outer) case width

342 mm
Master (outer) case height

232 mm

Brand

Aten
