1-Local/Remote Share Access Single Port VGA KVM Over IP Switch

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CN9000 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

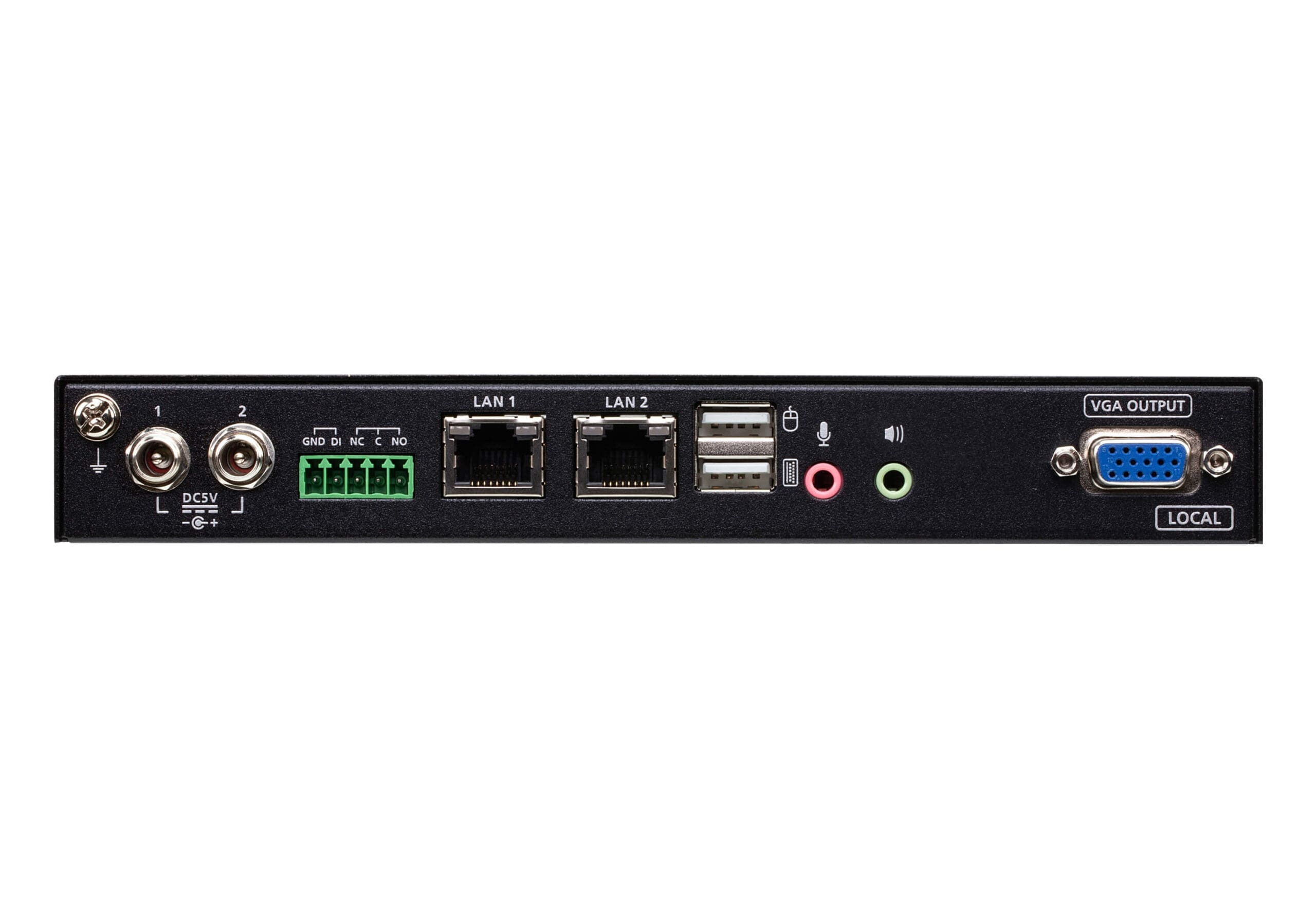

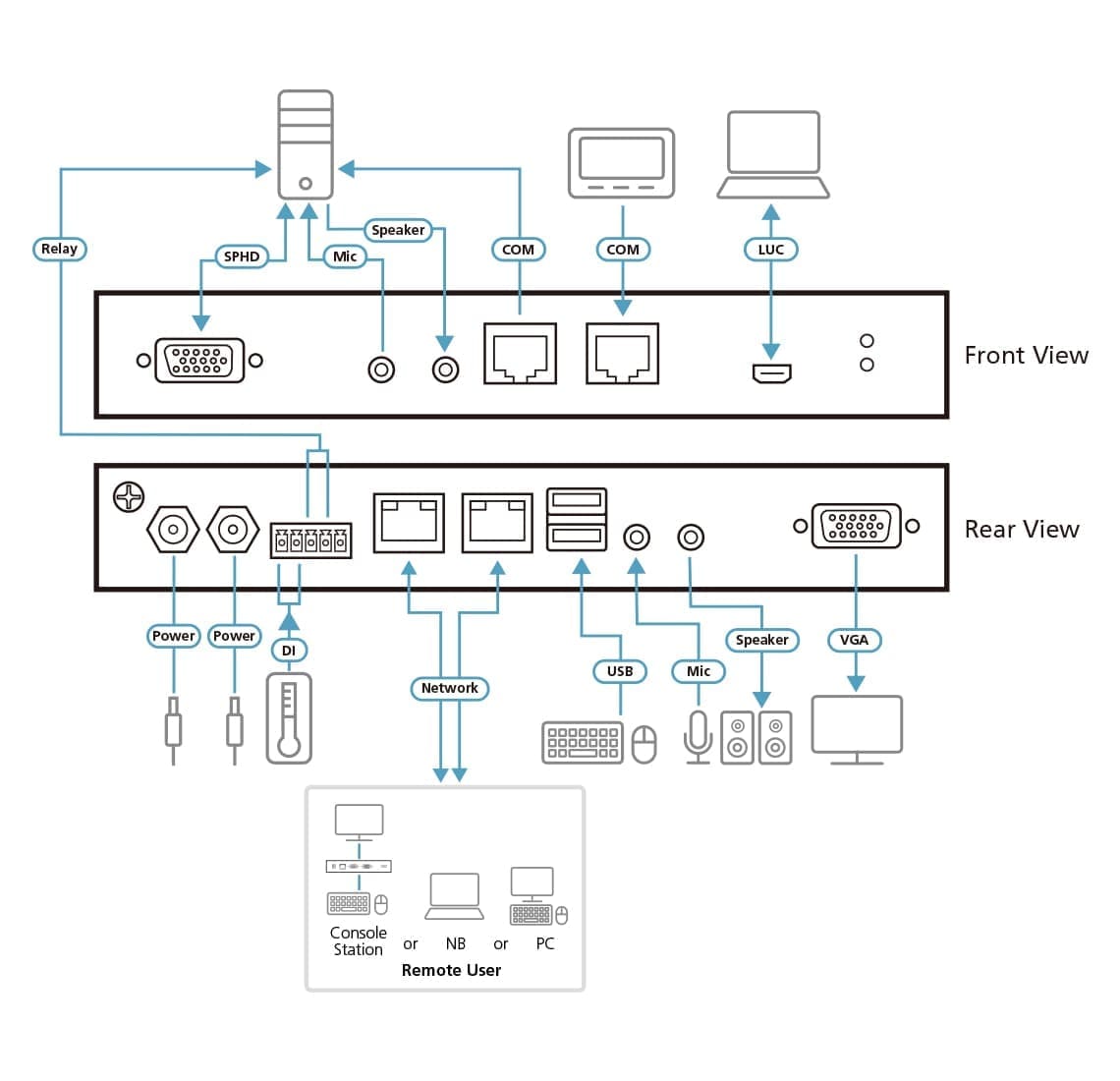

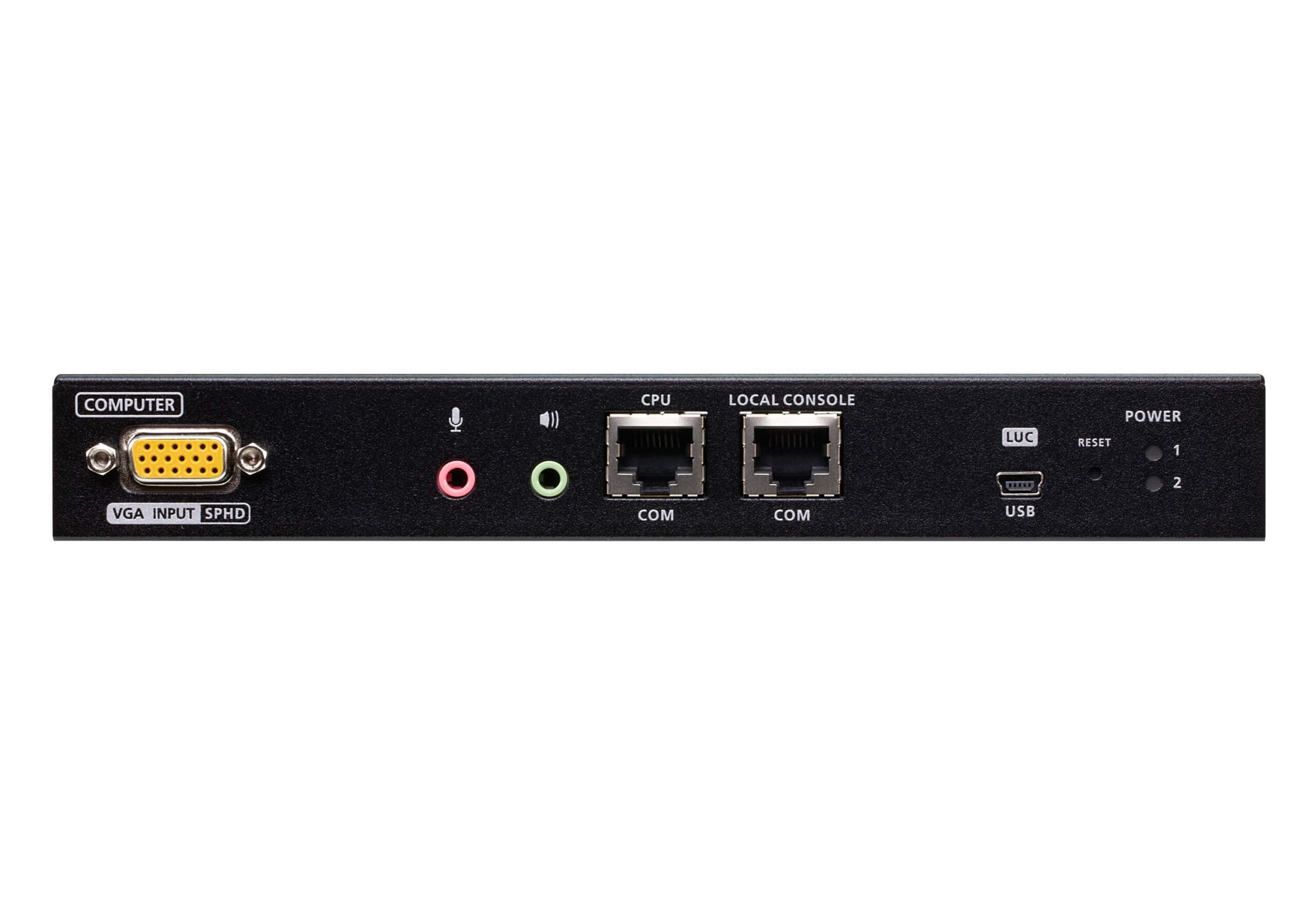

The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio and virtual media of a PC or workstation, featuring VGA high video resolution up to 1920 x 1200 @ 60Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible not only with modern-day workstations, but also legacy systems and older generation servers.
1x CN9000 VGA KVM over IP Switch
1x KVM cable (VGA, PS/2, USB)
1x USB cable (USB Type-A to Mini-B)
1x power adapter
1x control terminal block
1x mounting kit
1x foot pad set
1x user instructions

Feature Feature Value
Number of computers controlled 1
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity 2
Console USB ports quantity 2
USB connector type USB Type-A
Serial port type RS-232
Serial ports quantity 1
Audio connections Yes
DC-in jack Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 2
HD type Full HD
Maximum resolution 1920 x 1200 pixels
Rack mounting No
Product colour Black
Housing material Metal
LED indicators Yes
Power source AC
DC input voltage 5 V
Power consumption (typical) 7.46 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 200 mm
Depth 154.1 mm
Height 28.5 mm
Weight 1.26 kg
Package width 98 mm
Package depth 325 mm
Package height 210 mm
Package weight 1.68 kg
Master (outer) case net weight 6.3 kg
Harmonized System (HS) code 85176200
Master (outer) case width 342 mm
Master (outer) case length 512 mm
Master (outer) case height 232 mm
Master (outer) case gross weight 9.03 kg
Products per master (outer) case 5 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity

2
Serial port type

RS-232
Audio connections

Yes
Ethernet LAN

Yes
HD type

Full HD
Rack mounting

No
Housing material

Metal
Power source

AC
Power consumption (typical)

7.46 W
Storage temperature (T-T)

-20 – 60 °C
Depth

154.1 mm
Weight

1.26 kg
Package depth

325 mm
Package weight

1.68 kg
Harmonized System (HS) code

85176200
Master (outer) case length

512 mm
Keyboard port type

USB, PS/2
Video port type

VGA
VGA (D-Sub) ports quantity

2
USB connector type

USB Type-A
Serial ports quantity

1
DC-in jack

Yes
Ethernet LAN (RJ-45) ports

2
Maximum resolution

1920 x 1200 pixels
Product colour

Black
LED indicators

Yes
DC input voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Width

200 mm
Height

28.5 mm
Package width

98 mm
Package height

210 mm
Master (outer) case width

342 mm
Master (outer) case height

232 mm

Brand

Aten
