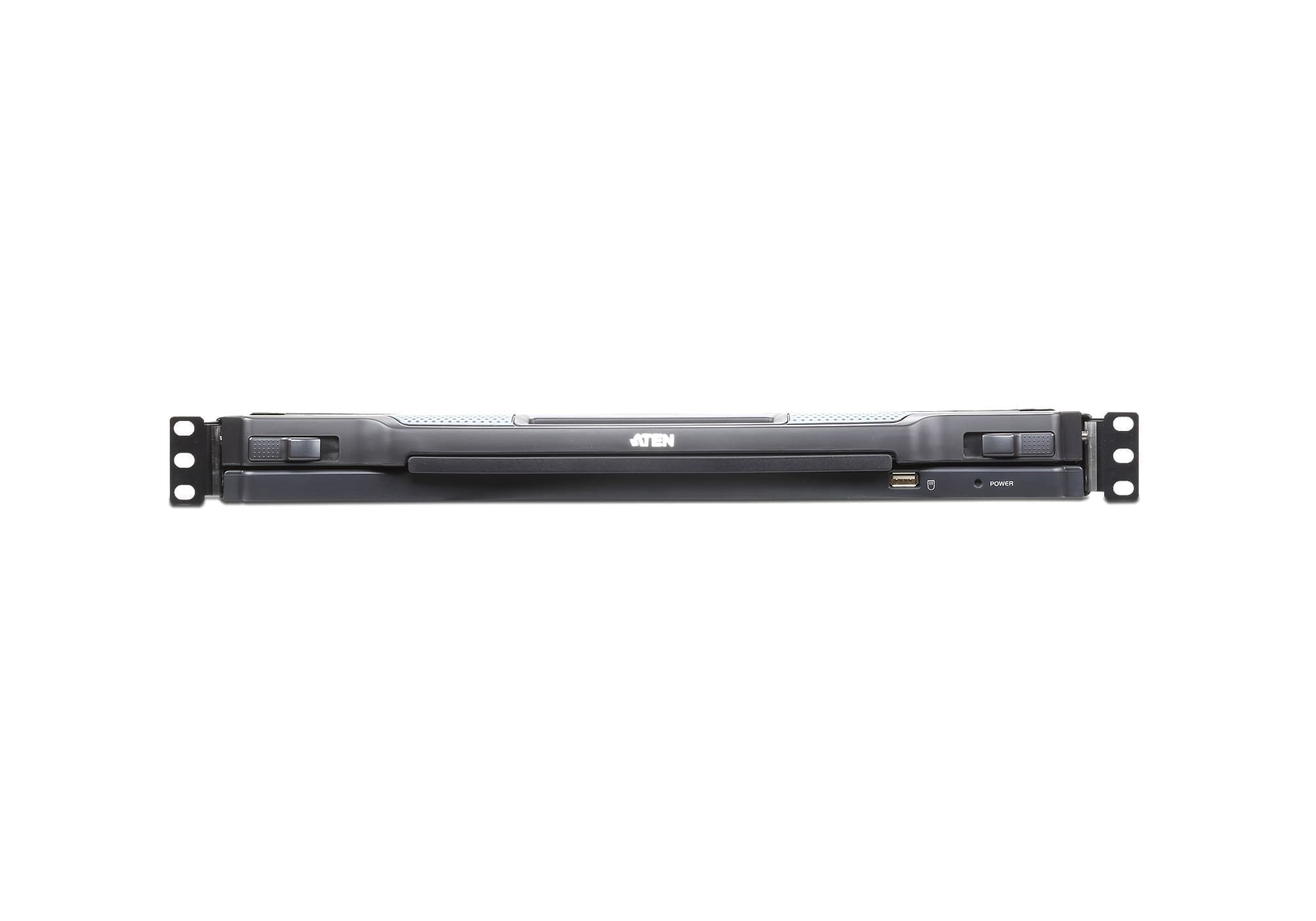

ATEN 16-Port 19″ LCD KVM Switch Over IP (USB – PS/2 VGA) with USB Peripheral port

Part No:

CL5716IN

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

1916P PS/2-USB VGA LCD KVM

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CL5716IN Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The CL5716I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716I can control up to 16 computers. As many as 15 additional KVM switches can be daisychained to the CL5716I, so that up to 256 computers can all be controlled from a single KVM console.

1x CL5716I LCD KVM over IP Switch with standard Rack Mount Kit
2x 2L-5202U Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
1x LIN5-27X6-U22G Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions

Feature Feature Value
Number of computers controlled 1
Keyboard port type USB
Mouse port type USB
Video port type VGA
Console ports VGA (D-Sub)
VGA (D-Sub) ports quantity 16
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Video bandwidth 75 Hz
Scan interval 1,255 s
Firmware upgradeable Yes
Rack mounting Yes
Product colour Black
Housing material Metal, Plastic
LED indicators Yes
Hot keys Yes
Built-in display Yes
Display LCD
Display diagonal 48.3 cm (19″)
Power source AC
AC input voltage 100 – 240 V
AC input frequency 50-60 Hz
Input current 1 A
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 689.2 mm
Depth 480 mm
Height 44 mm
Weight 14.3 kg
Package width 668 mm
Package depth 833 mm
Package height 135 mm
Package weight 17.3 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 14.3 kg
Harmonized System (HS) code 85176200
Master (outer) case width 668 mm
Master (outer) case length 833 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 17.3 kg
Products per master (outer) case 1 pc(s)

Additional information

Mouse port type

USB
Console ports

VGA (D-Sub)
USB hub

Yes
USB connector type

USB Type-A
Ethernet LAN (RJ-45) ports

1
Maximum resolution

1920 x 1200 pixels
Scan interval

1,255 s
Rack mounting

Yes
Housing material

Metal, Plastic
Hot keys

Yes
Display

LCD
Power source

AC
AC input frequency

50/60 Hz
Operating temperature (T-T)

0 – 50 °C
Width

689.2 mm
Height

44 mm
Package width

668 mm
Package height

135 mm
Quick installation guide

Yes
Master (outer) case width

668 mm
Master (outer) case height

135 mm
Keyboard port type

USB
Video port type

VGA
VGA (D-Sub) ports quantity

16
Ethernet LAN

Yes
HD type

WUXGA
Video bandwidth

75 Hz
Firmware upgradeable

Yes
Product colour

Black
LED indicators

Yes
Built-in display

Yes
Display diagonal

48.3 cm (19")
AC input voltage

100 – 240 V
Input current

1 A
Storage temperature (T-T)

-20 – 60 °C
Depth

480 mm
Weight

14.3 kg
Package depth

833 mm
Package weight

17.3 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

833 mm

Brand

Aten
