ATEN 16-Port 19″ LCD KVM Switch (USB – PS/2 VGA) with USB Peripheral port (Dual Rail)

Part No:

CL5816N

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

19 INCH Dual Rail LCD PS/2-USB Console – 16PORTS (inc 2 x 2L5302UP)

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CL5816N Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

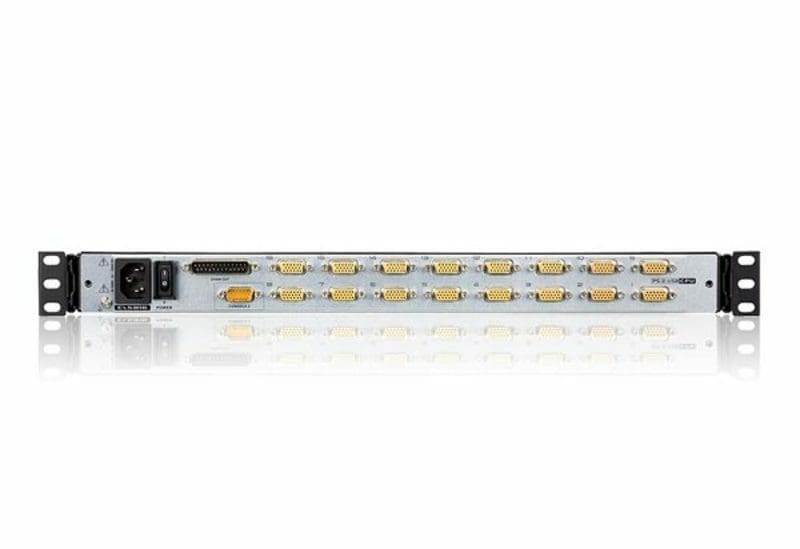

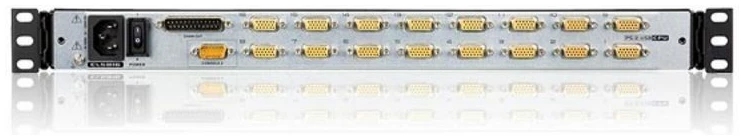

The CL5816 Slideaway™ Dual Rail LCD KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external consoles.
1x CL5816 LCD KVM Switch
2x 2L-5302UP PS/2 USB KVM Cables (1,8m)
1x LIN5-27X6-U21G 5-in-1 Console Cable (26cm)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x Rack Mounting Kit
2x L Brackets
1x User Instructions

Feature Feature Value
Number of computers controlled 16
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity 16
USB connector type USB Type-A
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Scan interval 1,255 s
DDC2B support Yes
Hot-swap Yes
Daisy chain Yes
Number of users 512 user(s)
Rack mounting Yes
Product colour Black
Rack capacity 1U
Housing material Metal, Plastic
LED indicators Yes
Push button Yes
Built-in display Yes
Display LCD
Display diagonal 48.3 cm (19″)
On Screen Display (OSD) Yes
Power source AC
AC input voltage 100-240 V
AC input frequency 50 – 60 Hz
Input current 1 A
Power consumption (typical) 26.8 W
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 680.4 mm
Depth 480 mm
Height 44 mm
Weight 15.3 kg
Package width 668 mm
Package depth 833 mm
Package height 135 mm
Package weight 19.3 kg
Manual Yes
Master (outer) case net weight 15.3 kg
Harmonized System (HS) code 85176200
Master (outer) case width 668 mm
Master (outer) case length 833 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 19.3 kg
Products per master (outer) case 1 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

USB A, VGA (D-Sub)
USB connector type

USB Type-A
Maximum resolution

1920 x 1200 pixels
DDC2B support

Yes
Daisy chain

Yes
Rack mounting

Yes
Rack capacity

1U
LED indicators

Yes
Built-in display

Yes
Display diagonal

48.3 cm (19")
Power source

AC
AC input frequency

50/60 Hz
Power consumption (typical)

26.8 W
Operating temperature (T-T)

0 – 50 °C
Depth

480 mm
Weight

15.3 kg
Package depth

833 mm
Package weight

19.3 kg
Master (outer) case width

668 mm
Master (outer) case height

135 mm
Keyboard port type

USB, PS/2
Video port type

VGA
VGA (D-Sub) ports quantity

16
HD type

WUXGA
Scan interval

1,255 s
Hot-swap

Yes
Number of users

512 user(s)
Product colour

Black
Housing material

Metal, Plastic
Push button

Yes
Display

LCD
On Screen Display (OSD)

Yes
AC input voltage

100 – 240 V
Input current

1 A
Storage temperature (T-T)

-20 – 60 °C
Width

680.4 mm
Height

44 mm
Package width

668 mm
Package height

135 mm
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

833 mm

Brand

Aten
