ATEN 16-Port USB – PS/2 VGA KVM Over IP Switch with USB Peripheral port

Part No:

CS1716I

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

16 PORT – PS/2 – USB KVM Switch over the NET with 1 local/remote user access

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS1716I Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

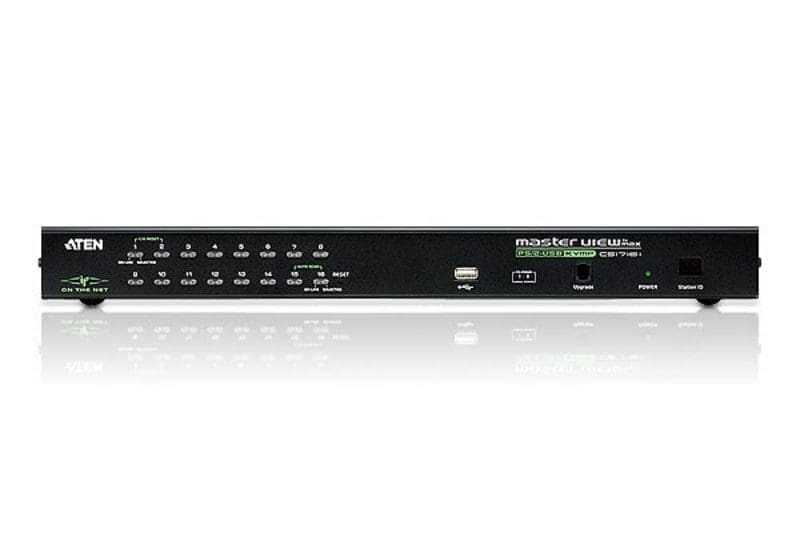

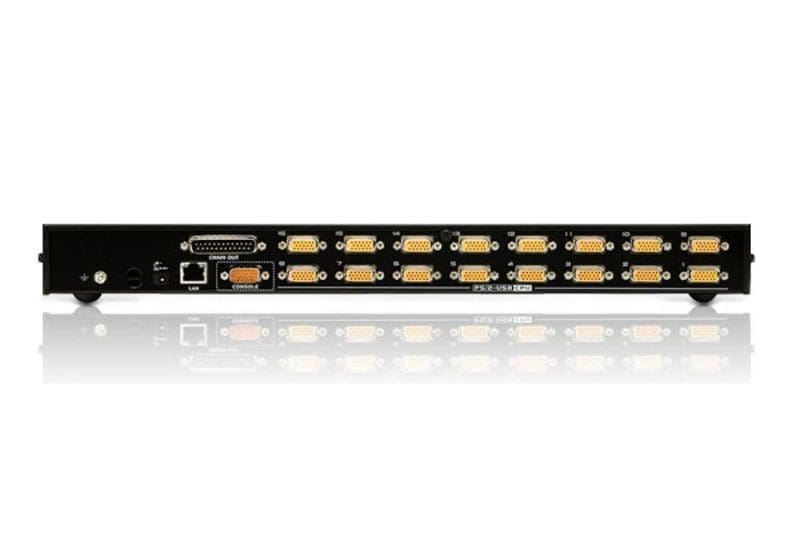

The CS1716i is a 16-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1716i works platform independent and supports e.g. Windows, Linux, MAC, SUN

The special KVM cables and the Aten feature “Video DynaSync”, makes sure that an optimal video resolution can be maintained. In addition it’s easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 256.
1x CS1716i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Feature Feature Value
Number of computers controlled 256
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity 16
Console USB ports quantity 1
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Security algorithms 128-bit RC4, SSL/TLS
HD type QXGA
Maximum resolution 2048 x 1536 pixels
Video bandwidth 60 Hz
Scan interval 1,255 s
DDC2B support Yes
HDCP Yes
Hot-Plug support Yes
Daisy chain Yes
Number of users 32 user(s)
Firmware upgradeable Yes
Rack mounting Yes
Product colour Black
Rack capacity 1U
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
On Screen Display (OSD) Yes
Power source DC
DC input voltage 5.3 V
Power consumption (typical) 11 W
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Sustainability certificates RoHS
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 437.2 mm
Depth 159.6 mm
Height 44 mm
Weight 3.59 kg
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 3.98 kg
Cables included DC, KVM
Quick installation guide Yes
Manual Yes
AC adapter included Yes
Software included Yes
Rack mount kit Yes
Master (outer) case net weight 10.8 kg
Harmonized System (HS) code 85176200
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 12.6 kg
Products per master (outer) case 3 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

USB A, VGA (D-Sub)
Console USB ports quantity

1
Ethernet LAN (RJ-45) ports

1
HD type

QXGA
Video bandwidth

60 Hz
DDC2B support

Yes
Hot-Plug support

Yes
Number of users

32 user(s)
Rack mounting

Yes
Rack capacity

1U
LED indicators

Yes
Hot keys

Yes
On Screen Display (OSD)

Yes
DC input voltage

5.3 V
Operating temperature (T-T)

0 – 50 °C
Depth

159.6 mm
Weight

3.59 kg
Package depth

540 mm
Package weight

3.98 kg
Quick installation guide

Yes
AC adapter included

Yes
Rack mount kit

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

565 mm
Keyboard port type

USB, PS/2
Video port type

VGA
VGA (D-Sub) ports quantity

16
Ethernet LAN

Yes
Security algorithms

128-bit RC4, SSL/TLS
Maximum resolution

2048 x 1536 pixels
Scan interval

1,255 s
HDCP

Yes
Daisy chain

Yes
Firmware upgradeable

Yes
Product colour

Black
Housing material

Metal
Push button

Yes
Built-in display

No
Power source

DC
Power consumption (typical)

11 W
Sustainability certificates

RoHS
Storage temperature (T-T)

-20 – 60 °C
Width

437.2 mm
Height

44 mm
Package width

116 mm
Package height

233 mm
Cables included

DC, KVM
Manual

Yes
Software included

Yes
Master (outer) case width

375 mm
Master (outer) case height

258 mm

Brand

Aten
