ATEN 16-Port USB – PS/2 VGA KVM Switch

Part No:

CS1316

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

16x PS2/USB PORT KVM Switch

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS1316 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

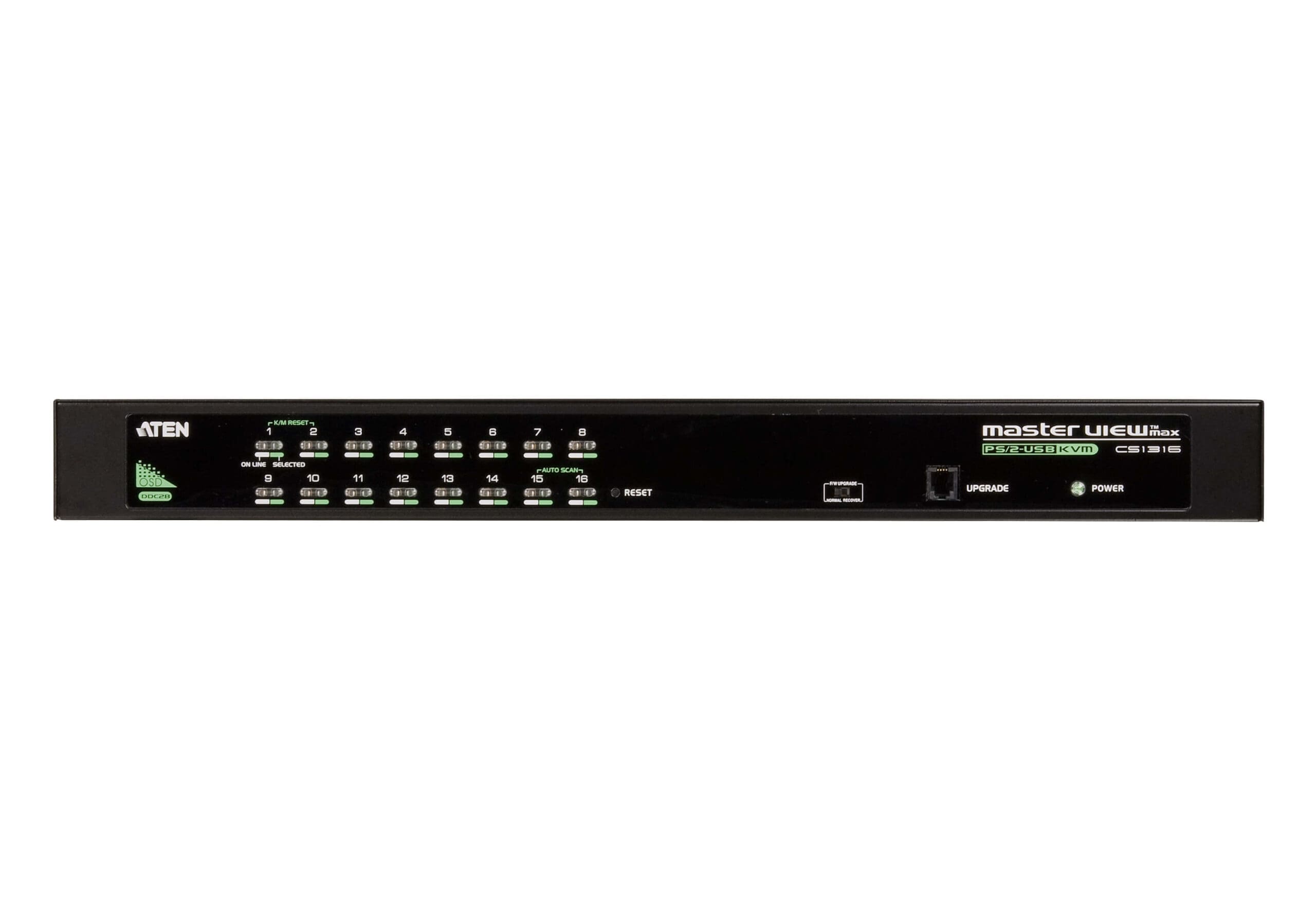

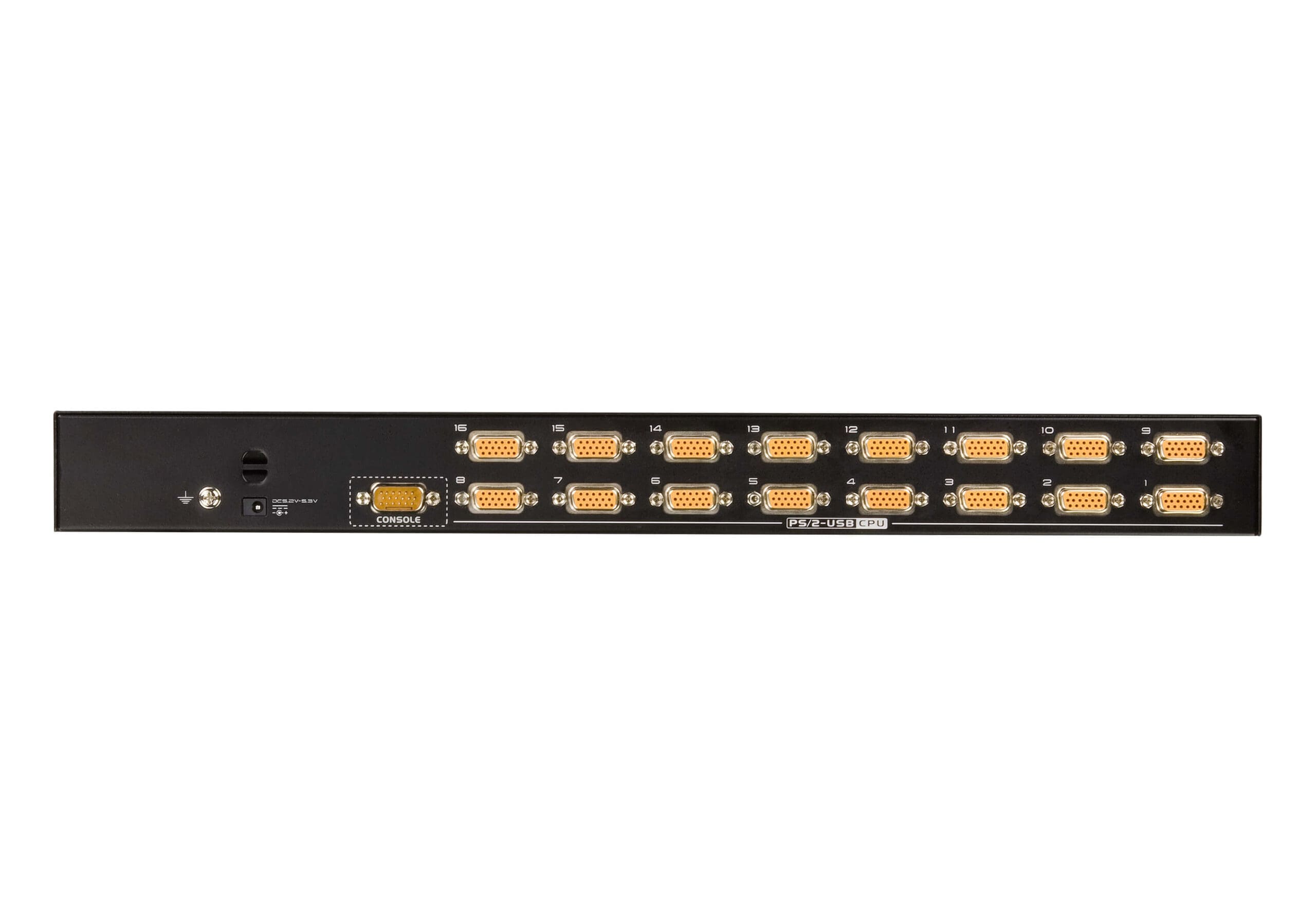

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Feature Feature Value
Number of computers controlled 256
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports VGA (D-Sub)
HD type QXGA
Maximum resolution 2048 x 1536 pixels
Scan interval 1,255 s
DDC2B support Yes
Hot-Plug support Yes
Firmware upgradeable Yes
Rack mounting Yes
Product colour Black
Rack capacity 1U
Housing material Metal
Cascadable Yes
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
On Screen Display (OSD) Yes
Power source DC
DC input voltage 5.3 V
Power consumption (typical) 6.5 W
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 437.2 mm
Depth 161.3 mm
Height 44 mm
Weight 2.5 kg
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 2.87 kg
Cables included KVM
Quick installation guide Yes
Manual Yes
AC adapter included Yes
Master (outer) case net weight 7.5 kg
Harmonized System (HS) code 85176200
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 9.27 kg
Products per master (outer) case 3 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

VGA (D-Sub)
Maximum resolution

2048 x 1536 pixels
DDC2B support

Yes
Firmware upgradeable

Yes
Product colour

Black
Housing material

Metal
LED indicators

Yes
Hot keys

Yes
On Screen Display (OSD)

Yes
DC input voltage

5.3 V
Storage temperature (T-T)

-20 – 60 °C
Width

437.2 mm
Height

44 mm
Package width

116 mm
Package height

233 mm
Cables included

KVM
Manual

Yes
Master (outer) case width

375 mm
Master (outer) case height

258 mm
Keyboard port type

USB, PS/2
Video port type

VGA
HD type

QXGA
Scan interval

1,255 s
Hot-Plug support

Yes
Rack mounting

Yes
Rack capacity

1U
Cascadable

Yes
Push button

Yes
Built-in display

No
Power source

DC
Power consumption (typical)

6.5 W
Operating temperature (T-T)

0 – 50 °C
Depth

161.3 mm
Weight

2.5 kg
Package depth

540 mm
Package weight

2.87 kg
Quick installation guide

Yes
AC adapter included

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

565 mm

Brand

Aten
