ATEN 19″ LCD Console (USB – PS/2 VGA) with USB Peripheral port (Dual Rail)

Part No:

CL5800N

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

19 INCH inch Dual Rail LCD PS/2-USB Console

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CL5800N Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

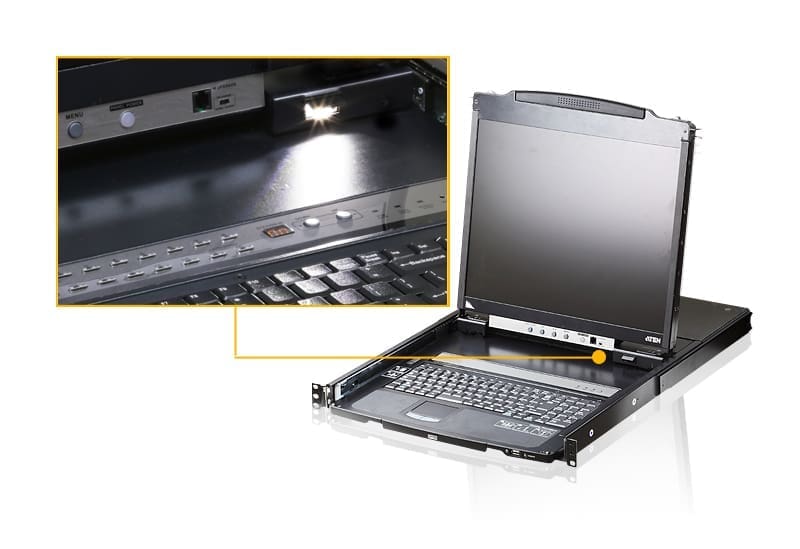

The CL5800 is a LCD KVM console featuring an integrated 19″ LED-backlit LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing.
1x CL5800 Dual Rail LCD PS/2-USB Console with Standard Rack Mount Kit
1x 2L-5302UP PS/2-USB KVM cable (1.8m)
1x LIN2-418K-E12G Power Cord
1x LIN5-04A2-J14G Firmware Upgrade Cable
2x L Brackets
1x User Instructions

Feature Feature Value
Number of computers controlled 1
Video port type VGA
Console ports DVI-D, USB A
Console USB ports quantity 2
USB connector type USB Type-A
Audio connections Yes
Headphone outputs 6
Number of microphone inputs 6
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Video bandwidth 60 Hz
Firmware upgradeable Yes
Rack mounting Yes
Product colour Black
LED indicators Yes
Hot keys Yes
Built-in display Yes
Display LCD
Display diagonal 48.3 cm (19″)
Power source AC
AC input voltage 100 – 240 V
AC input frequency 50-60 Hz
Input current 1 A
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 680.4 mm
Depth 480 mm
Height 44 mm
Weight 14.6 kg
Package width 668 mm
Package depth 833 mm
Package height 135 mm
Package weight 18.2 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 14.6 kg
Harmonized System (HS) code 85176200
Master (outer) case width 668 mm
Master (outer) case length 833 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 18.2 kg
Products per master (outer) case 1 pc(s)

Additional information

Console ports

DVI-D, USB A
USB connector type

USB Type-A
Headphone outputs

6
HD type

WUXGA
Video bandwidth

60 Hz
Rack mounting

Yes
LED indicators

Yes
Built-in display

Yes
Display diagonal

48.3 cm (19")
AC input voltage

100 – 240 V
Input current

1 A
Operating temperature (T-T)

0 – 50 °C
Width

680.4 mm
Height

44 mm
Package width

668 mm
Package height

135 mm
Quick installation guide

Yes
Master (outer) case width

668 mm
Master (outer) case height

135 mm
Video port type

VGA
Console USB ports quantity

2
Audio connections

Yes
Number of microphone inputs

6
Maximum resolution

1920 x 1200 pixels
Firmware upgradeable

Yes
Product colour

Black
Hot keys

Yes
Display

LCD
Power source

AC
AC input frequency

50/60 Hz
Storage temperature (T-T)

-20 – 60 °C
Depth

480 mm
Weight

14.6 kg
Package depth

833 mm
Package weight

18.2 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

833 mm

Brand

Aten
