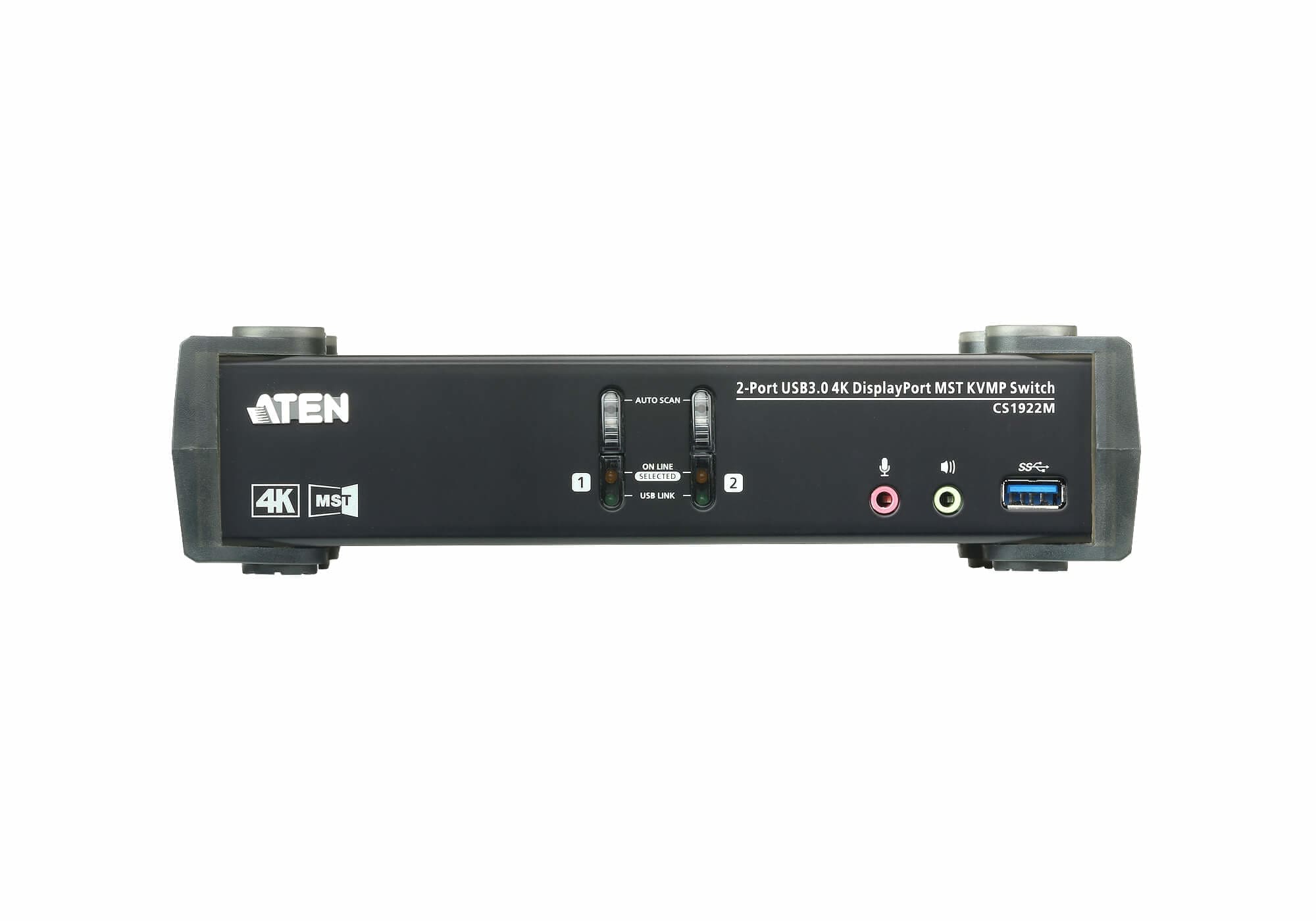

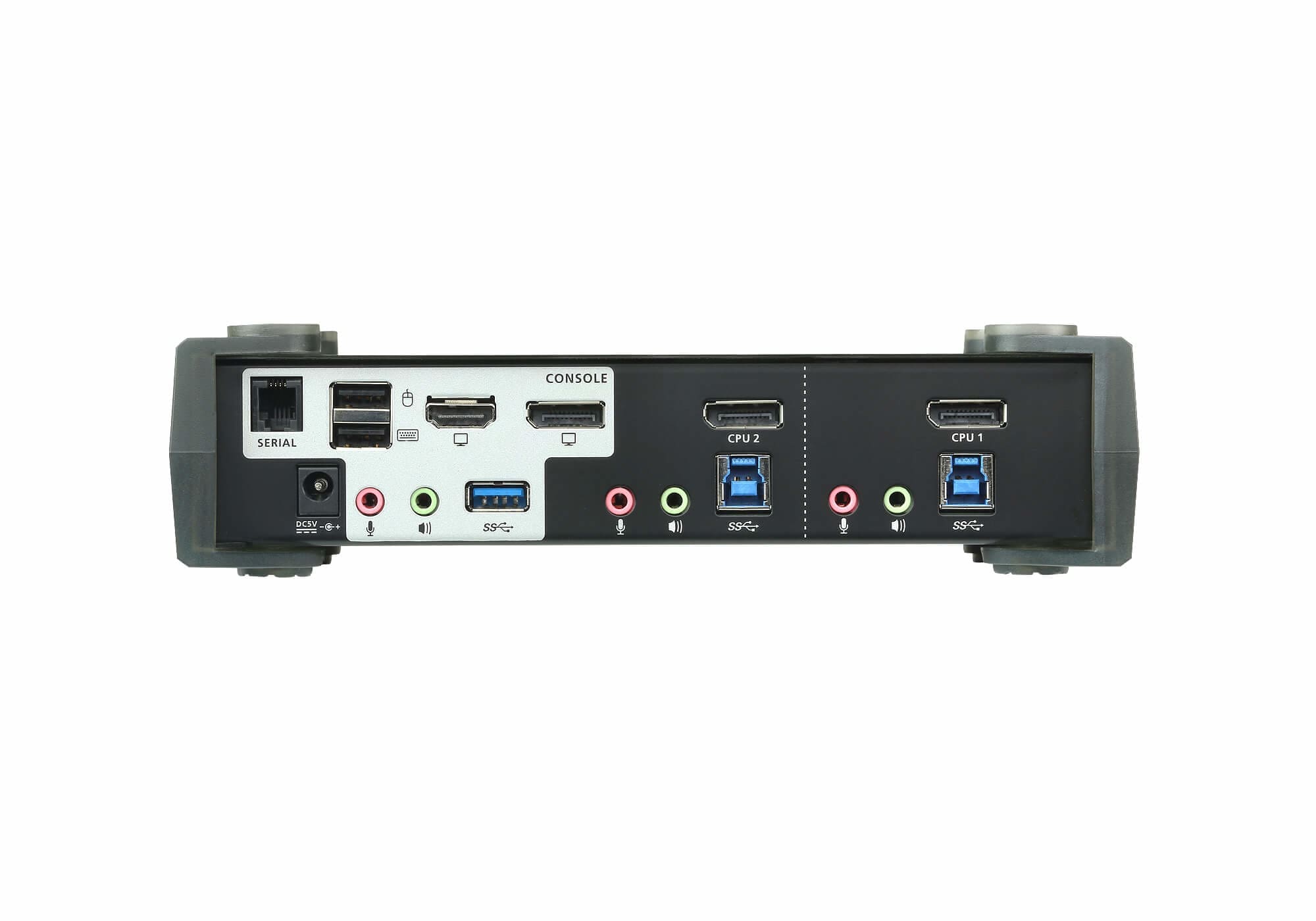

ATEN 2-Port USB 3.0 4K DisplayPort MST KVMP Switch

Part No:

CS1922M

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

2-Port USB3.0 4K DisplayPort KVMP Switch with build-in MST hub

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS1922M Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world’s first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.
1x 2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort 1.2 Cables (1.5m/5ft)
2x LIN6-11C1-E12G USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
4x LIN5-0205-21DG/CD Audio Cables (1.8m/6ft)
1x LIN2-418K-E12G / 0AD8-8005-40MG Power Adapter
1x User Instructions

Feature Feature Value
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
DisplayPorts quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 2
Console USB ports quantity 2
USB hub Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 4
Number of microphone inputs 4
DC-in jack Yes
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 60 Hz
Scan interval 1,5,99 s
Firmware upgradeable Yes
Product colour Black
Housing material Metal, Plastic
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source DC
DC input voltage 5 V
Power consumption (typical) 4.09 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 210 mm
Depth 88 mm
Height 55.5 mm
Weight 560 g
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.84 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 2.8 kg
Harmonized System (HS) code 85176200
Master (outer) case width 292 mm
Master (outer) case length 517 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 9.85 kg
Products per master (outer) case 5 pc(s)
