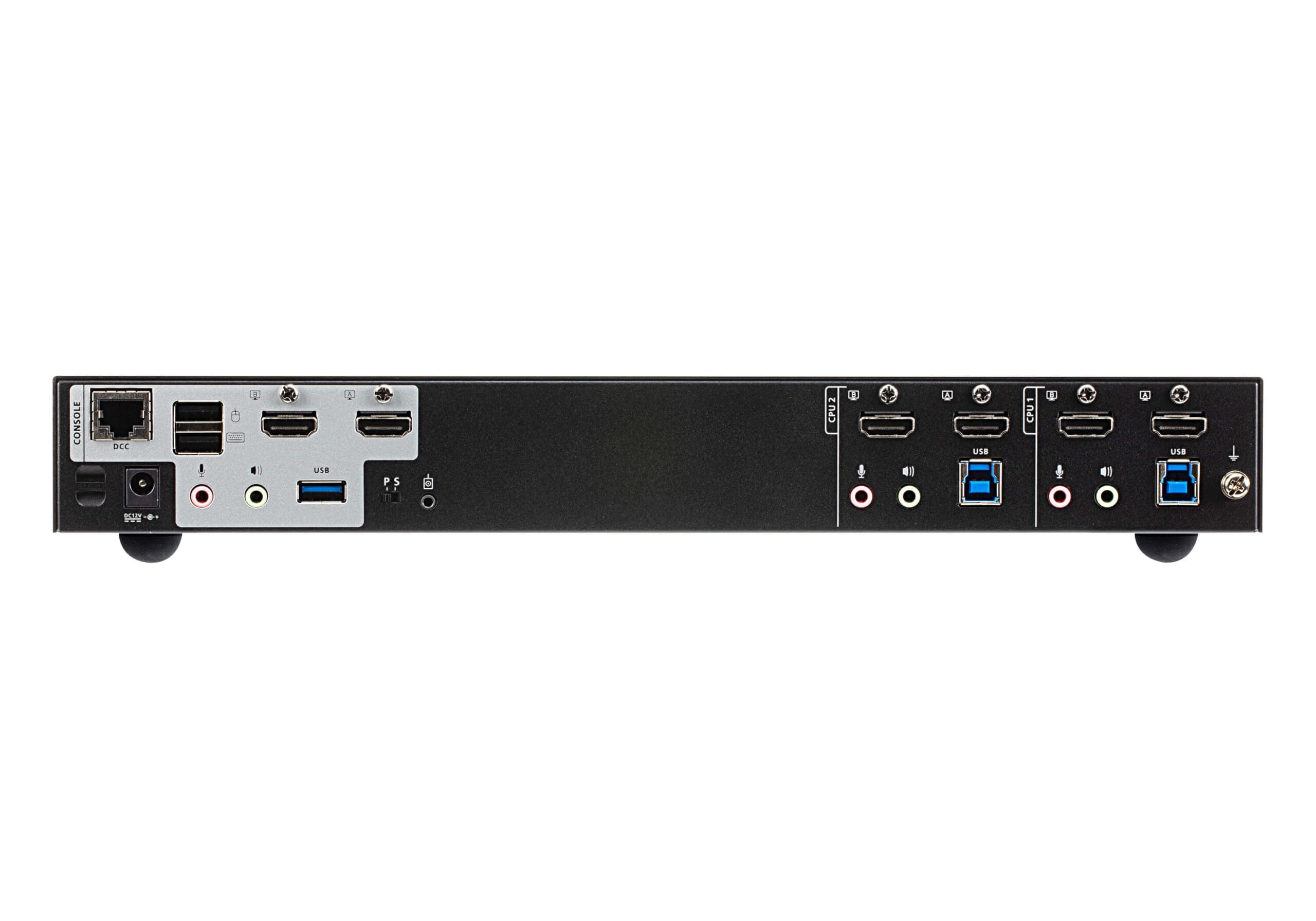

ATEN 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch

Part No:

CS1842

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

2-Port 4K 60Hz Dual Display HDMI KVM

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS1842 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

1x CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Speaker Cables
2x LIN5-0205-21DG Microphone Cables
1x 0AD8-8012-33MG Power Adapter
1x 2XRT-0016G Remote Port Selector
1x User Instructions

Feature Feature Value
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type HDMI
Console ports 3.5mm headphone, HDMI, USB A
HDMI ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 2
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 4
Number of microphone inputs 4
DC-in jack Yes
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 60 Hz
Scan interval 1,5,99 s
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source DC
DC input voltage 12 V
Power consumption (typical) 3.17 W
Windows operating systems supported Yes
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 335 mm
Depth 160.5 mm
Height 44 mm
Weight 2.75 kg
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 3.52 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 8.25 kg
Harmonized System (HS) code 85176200
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 11.5 kg
Products per master (outer) case 3 pc(s)

Additional information

Mouse port type

USB
Console ports

3.5mm headphone, HDMI, USB A
USB hub

Yes
Audio connections

Yes
Number of microphone inputs

4
HD type

4K Ultra HD
Video bandwidth

60 Hz
Product colour

Black
LED indicators

Yes
Hot keys

Yes
Power source

DC
Power consumption (typical)

3.17 W
Operating temperature (T-T)

0 – 40 °C
Width

335 mm
Height

44 mm
Package width

116 mm
Package height

233 mm
Quick installation guide

Yes
Master (outer) case width

375 mm
Master (outer) case height

258 mm
Keyboard port type

USB
Video port type

HDMI
HDMI ports quantity

4
Console USB ports quantity

2
USB connector type

USB Type-A, USB Type-B
Headphone outputs

4
DC-in jack

Yes
Maximum resolution

4096 x 2160 pixels
Scan interval

1,5,99 s
Housing material

Metal
Push button

Yes
Built-in display

No
DC input voltage

12 V
Storage temperature (T-T)

-20 – 60 °C
Depth

160.5 mm
Weight

2.75 kg
Package depth

540 mm
Package weight

3.52 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

565 mm

Brand

Aten
