ATEN 2-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included)

Part No:

CS1922

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£179.04
£214.85
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

2-Port USB 3.0 True 4K DisplayPort KVMP Switch

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: CS1922 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.

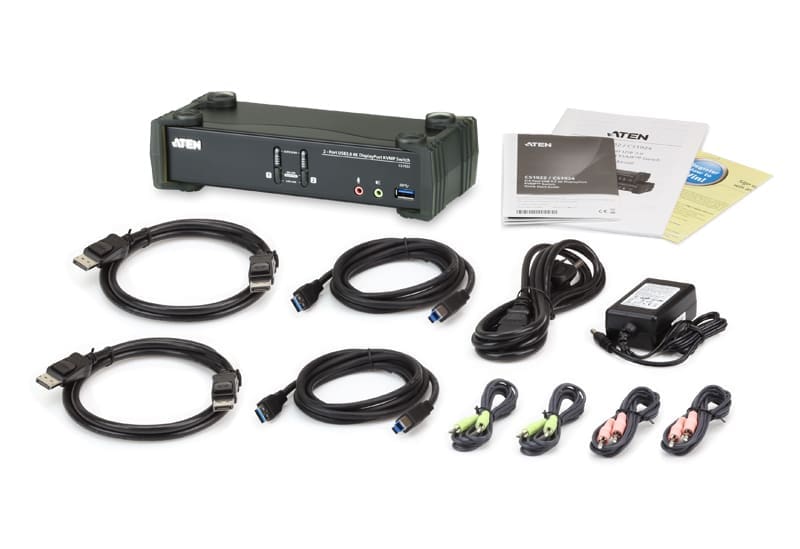

1x CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cable
2x LIN5-0205-21DG Audio Cable
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions

Feature Feature Value
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Console ports 3.5mm mic, DisplayPort, USB B
DisplayPorts quantity 3
Console USB ports quantity 2
USB hub Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
USB connector type USB Type-B
USB version 3.2 Gen 1 (3.1 Gen 1)
Audio connections Yes
Headphone outputs 4
Number of microphone inputs 4
DC-in jack Yes
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Scan interval 1,99 s
HDCP Yes
Hot-Plug support Yes
Product colour Black
Housing material Metal, Plastic
LED indicators Operation, USB
Push button Yes
Built-in display No
Power source DC
Output voltage 5 V
Power consumption (typical) 2 W
External power adapter Yes
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 88 mm
Depth 210 mm
Height 55.5 mm
Weight 1.42 kg
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.86 kg
Cables included Audio (3.5mm), DisplayPort, USB
Manual Yes
AC adapter included Yes
Master (outer) case net weight 7.1 kg
Harmonized System (HS) code 85176200
Master (outer) case width 292 mm
Master (outer) case length 517 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 9.8 kg
Products per master (outer) case 5 pc(s)

Additional information

Mouse port type

USB
Console ports

3.5mm mic, DisplayPort, USB B
Console USB ports quantity

2
USB version

3.2 Gen 1 (3.1 Gen 1)
Headphone outputs

4
DC-in jack

Yes
Maximum resolution

4096 x 2160 pixels
HDCP

Yes
Product colour

Black
LED indicators

Operation, USB
Built-in display

No
Output voltage

5 V
External power adapter

Yes
Operating temperature (T-T)

0 – 50 °C
Depth

210 mm
Weight

1.42 kg
Package depth

283 mm
Package weight

1.86 kg
Manual

Yes
Master (outer) case width

292 mm
Master (outer) case height

194 mm
Keyboard port type

USB
Video port type

DisplayPort
DisplayPorts quantity

3
USB hub

Yes
USB connector type

USB Type-B
Audio connections

Yes
Number of microphone inputs

4
HD type

4K Ultra HD
Scan interval

1,99 s
Hot-Plug support

Yes
Housing material

Metal, Plastic
Push button

Yes
Power source

DC
Power consumption (typical)

2 W
Storage temperature (T-T)

-20 – 60 °C
Width

88 mm
Height

55.5 mm
Package width

100 mm
Package height

173 mm
Cables included

Audio (3.5mm), DisplayPort, USB
AC adapter included

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

517 mm

Brand

Aten
