ATEN 2-Port USB DVI KVM Switch

Part No:
CS22D
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
55 available

CS22D-AT

Request info below or give us a call on 0203 617 7663
SKU: CS22D Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

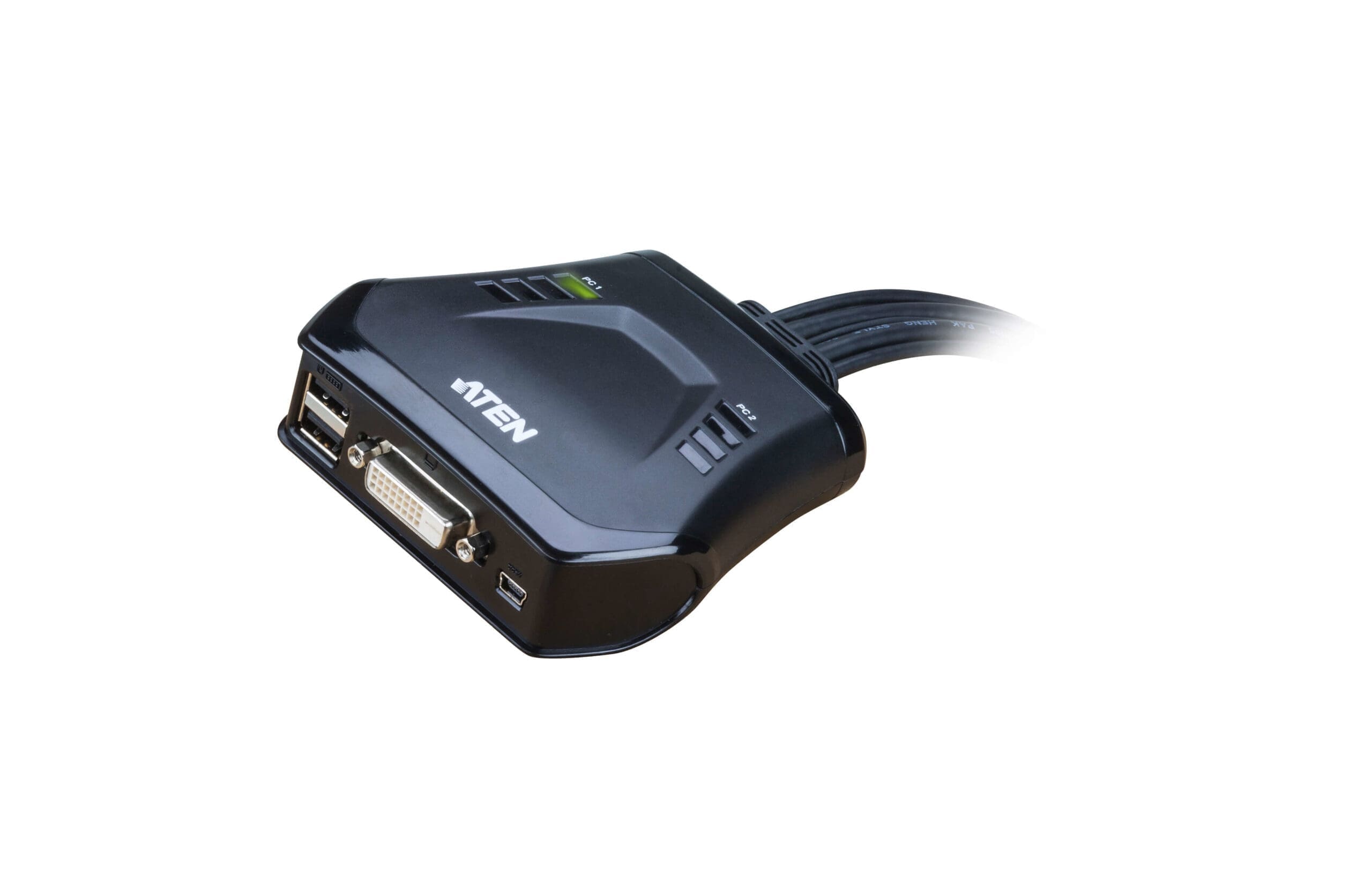

The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.
1 x CS22D 2-Port USB DVI KVM Switch
1 x User Instructions

Feature Feature Value
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DVI-D
Console ports DVI-D, USB A, Mini-USB B
DVI-D ports quantity 2
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Video bandwidth 60 Hz
Rack mounting No
Product colour Black
LED indicators Yes
Built-in display No
Power source DC
Input voltage 5 V
Power consumption (typical) 0.93 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 99.5 mm
Depth 96.6 mm
Height 30.1 mm
Weight 340 g
Package width 55 mm
Package depth 155 mm
Package height 223 mm
Package weight 408 g
Quick installation guide Yes
Master (outer) case net weight 6.8 kg
Harmonized System (HS) code 85176200
Master (outer) case width 328 mm
Master (outer) case length 389 mm
Master (outer) case height 330 mm
Master (outer) case gross weight 9.06 kg
Products per master (outer) case 20 pc(s)

Additional information

Mouse port type

USB
Console ports

DVI-D, USB A, Mini-USB B
HD type

WUXGA
Video bandwidth

60 Hz
Product colour

Black
Built-in display

No
Input voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Width

99.5 mm
Height

30.1 mm
Package width

55 mm
Package height

223 mm
Quick installation guide

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

389 mm
Keyboard port type

USB
Video port type

DVI-D
DVI-D ports quantity

2
Maximum resolution

1920 x 1200 pixels
Rack mounting

No
LED indicators

Yes
Power source

DC
Power consumption (typical)

0.93 W
Storage temperature (T-T)

-20 – 60 °C
Depth

96.6 mm
Weight

340 g
Package depth

155 mm
Package weight

408 g
Master (outer) case width

328 mm
Master (outer) case height

330 mm

Brand

Aten
