Description
The CS72U 2-Port USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (keyboard and mouse, audio and VGA monitor).

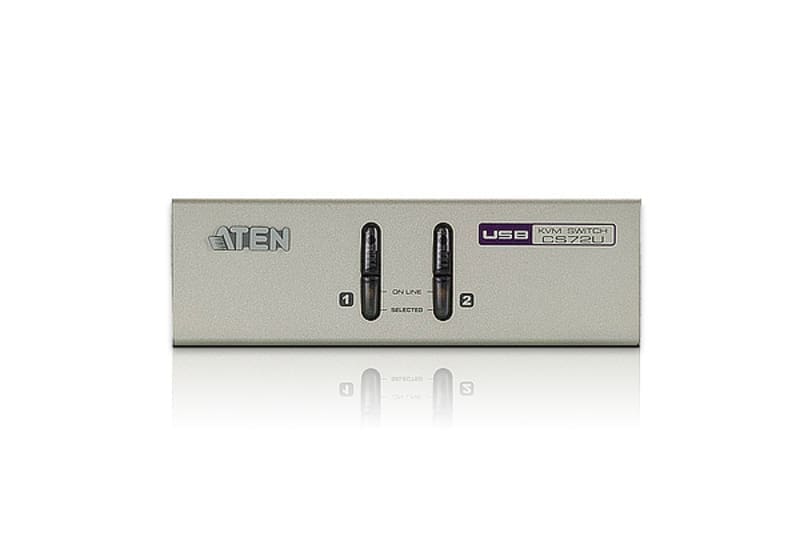

With the CS72U, you can access computers conveniently using port selection pushbuttons located on the unit’s front panel.
1x CS72U 2-Port USB KVM Switch
2x Custom KVM Cable sets
1x User Instructions
Note: The provided custom KVM cable set is custom-made to work with CS72U / CS74U, which transmits video, audio, and USB signals from the unit to the connected PC. There are two custom KVM cable sets available for purchase (1.2 m custom KVM cable set: LIN5-23X5-X31G; 1.8 m custom KVM cable set: LIN5-23X5-X32G). To purchase additional custom-made KVM cables, please contact your ATEN dealer for more information.
| Feature |
Feature Value |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Console ports |

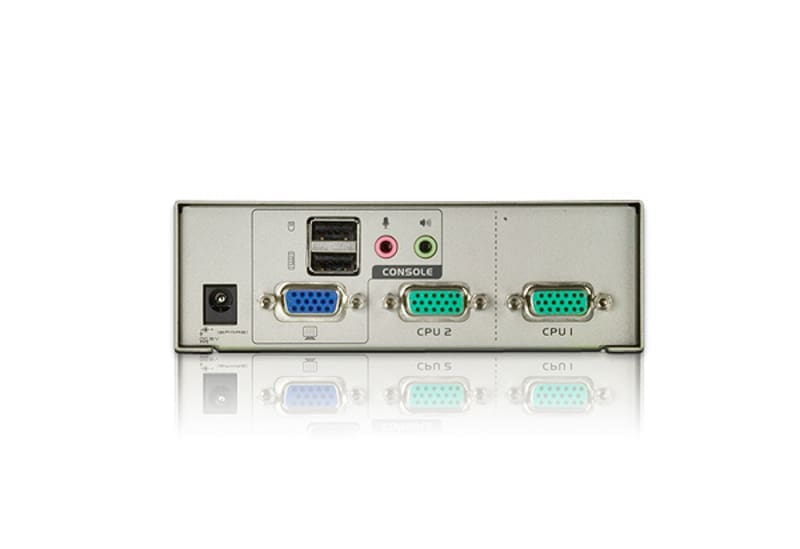

3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
2 |
| Console USB ports quantity |
2 |
| DC-in jack |
Yes |
| HD type |
QXGA |
| Maximum resolution |
2048 x 1536 pixels |
| Video bandwidth |
60 Hz |
| DDC2B support |
Yes |
| Rack mounting |
No |
| Product colour |
Grey |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Built-in display |
No |
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
0.142 W |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Width |
130 mm |
| Depth |
76.5 mm |
| Height |
44 mm |
| Weight |
804 g |
| Package width |
59 mm |
| Package depth |
239 mm |
| Package height |
160 mm |
| Package weight |
963 g |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Master (outer) case net weight |
16.1 kg |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
315 mm |
| Master (outer) case length |
490 mm |
| Master (outer) case height |
338 mm |
| Master (outer) case gross weight |
19.9 kg |
| Products per master (outer) case |
20 pc(s) |
