ATEN 2P USB3.0 DisplayPORT Dual View KVMP SW

Part No:

CS1942DP

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£275.94
£331.13
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

2-Port USB3.0 4K DisplayPort Dual Display KVMP Switch

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: CS1942DP Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

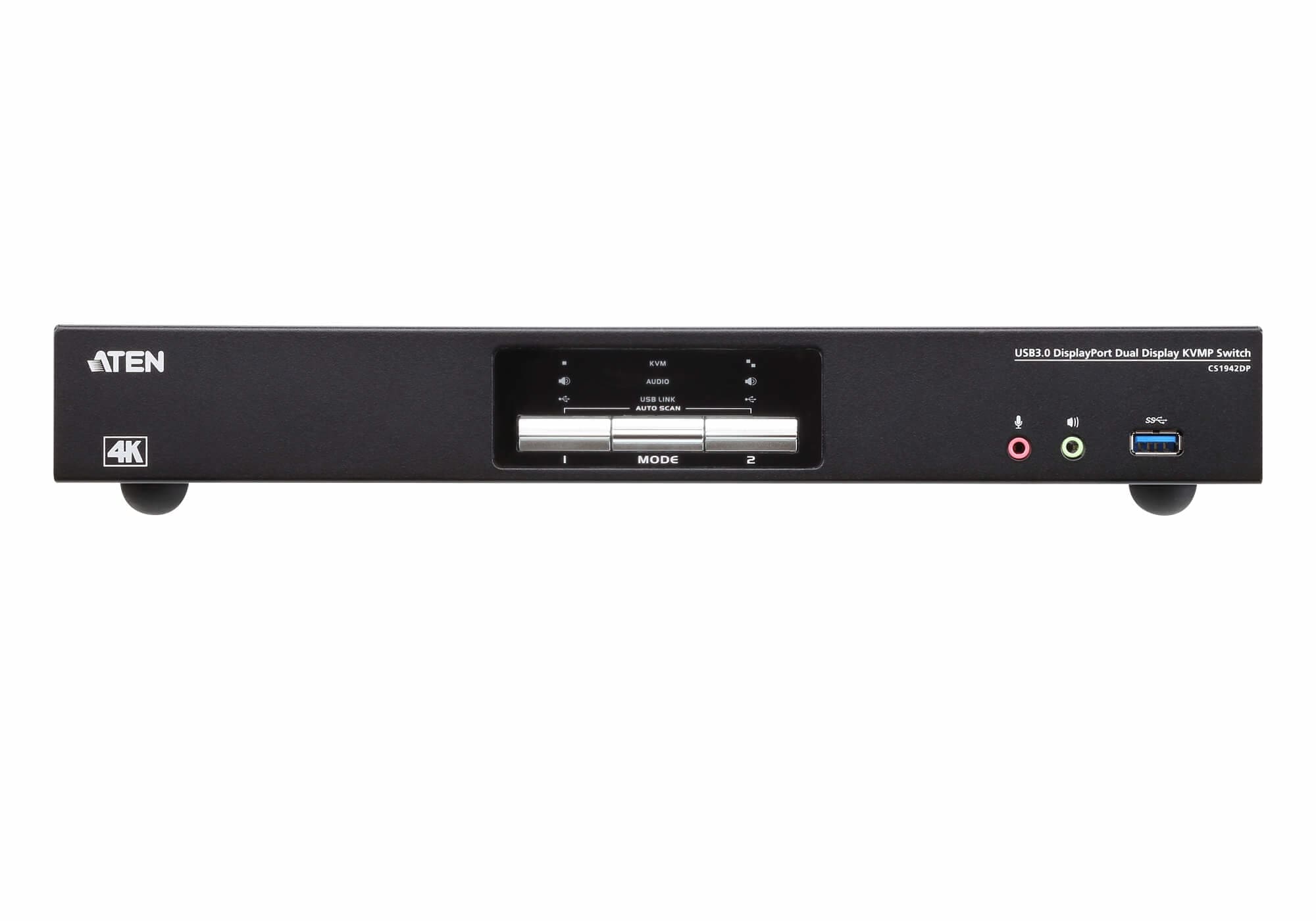

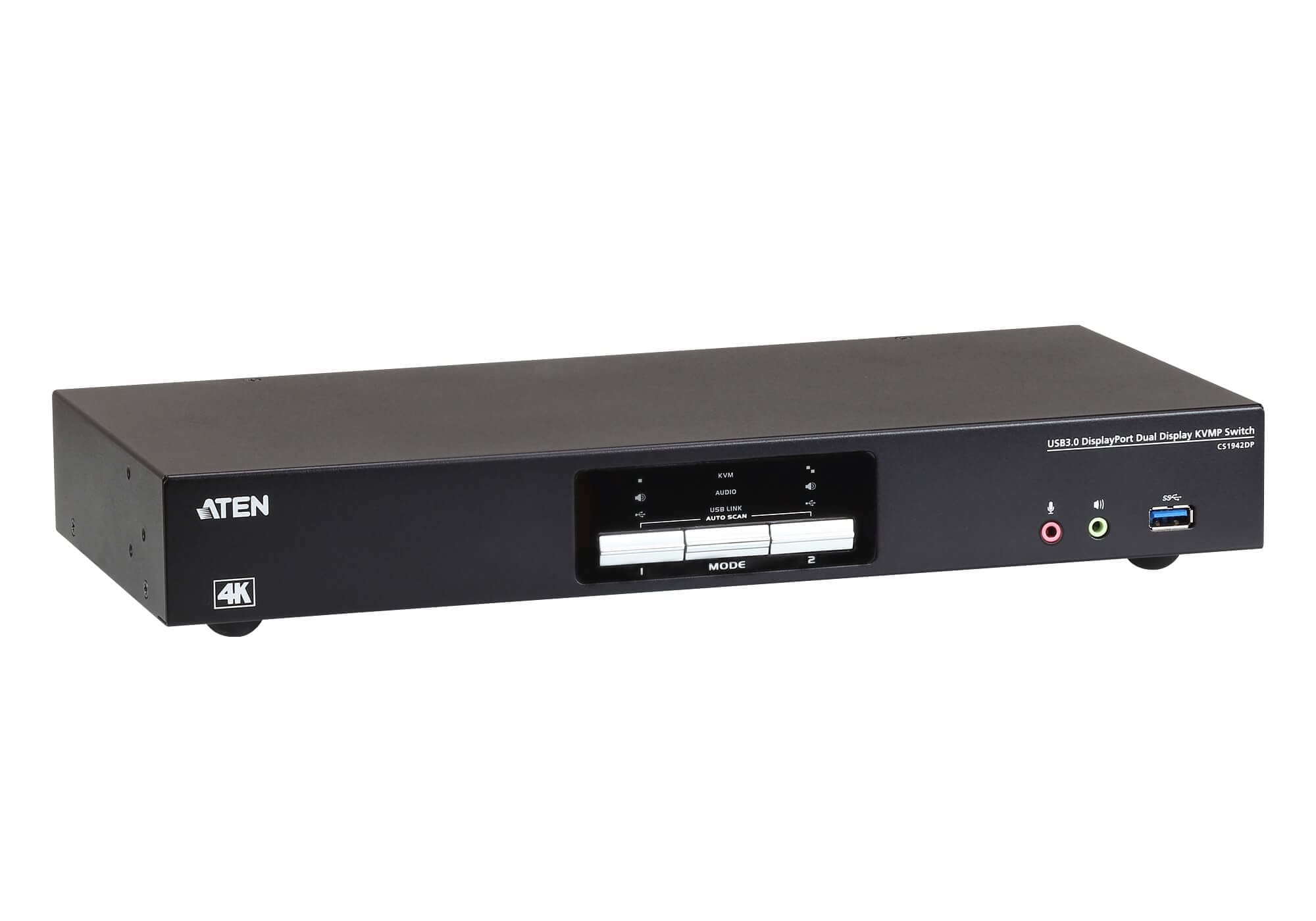

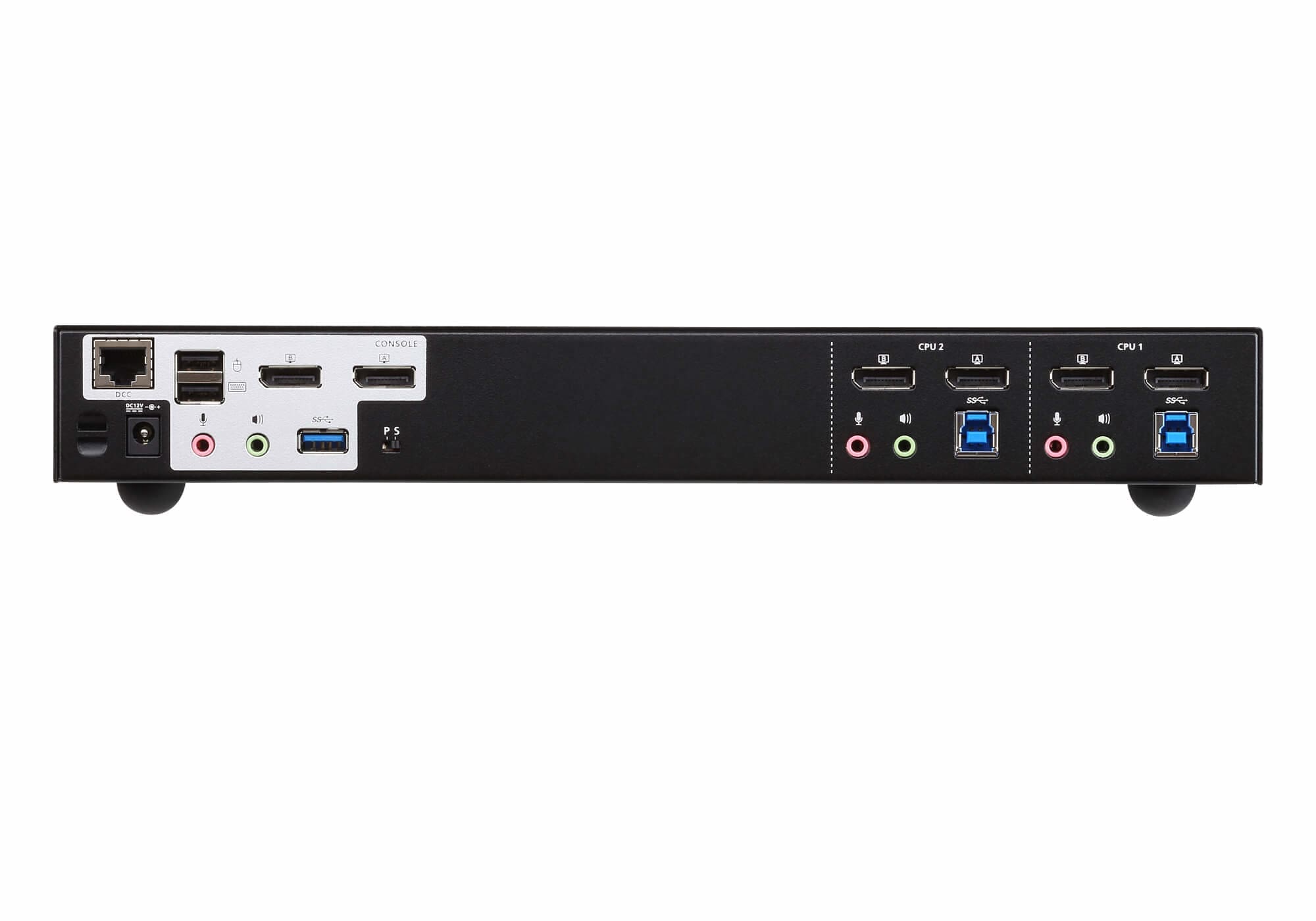

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.

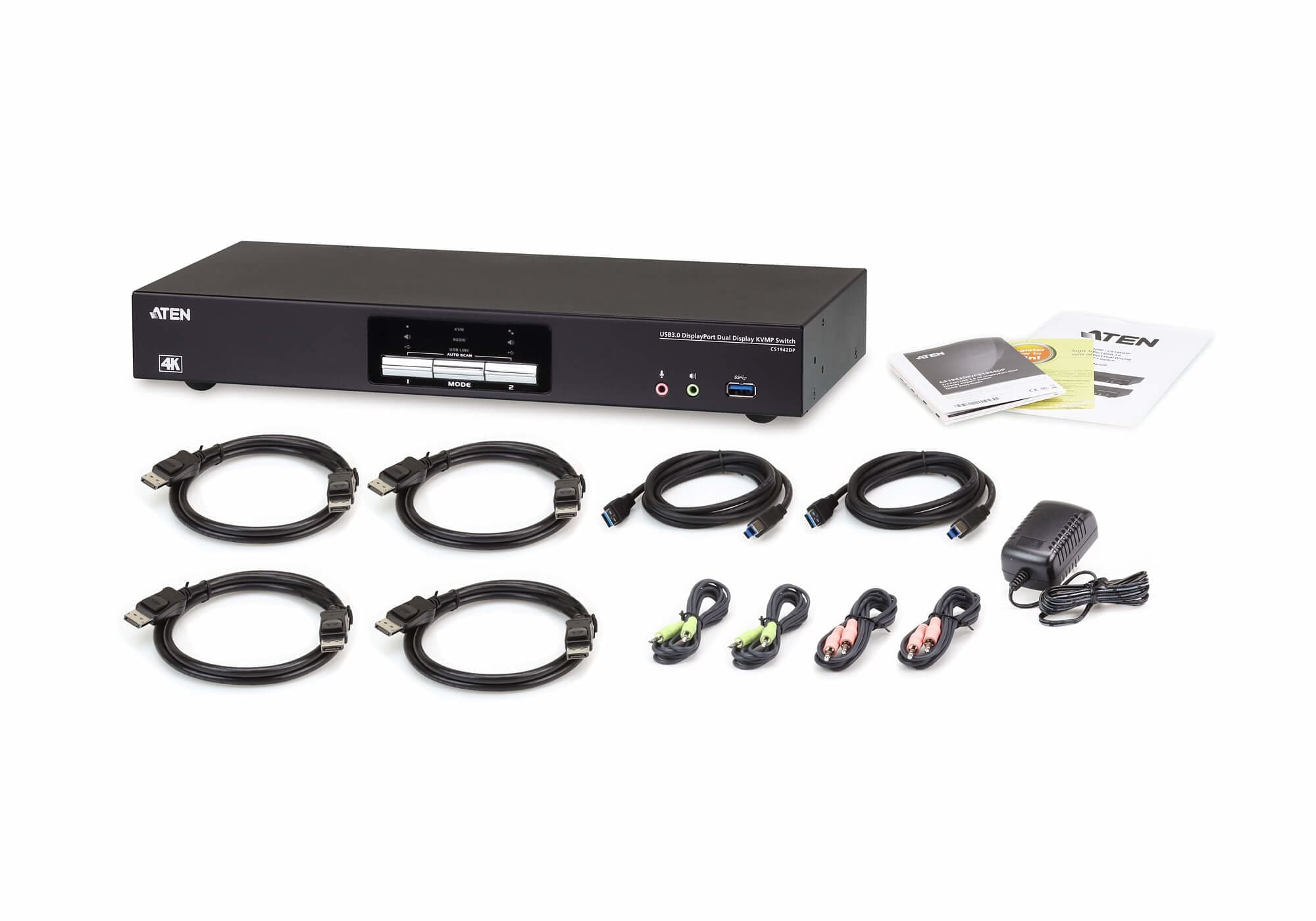

1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
4x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG/LIN5-0205-21DG Audio Cables
1x LIN2-418K-E12G Power Adapter
1x User Instructions

Feature Feature Value
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
DisplayPorts quantity 6
DisplayPort version 1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 2
Console USB ports quantity 2
USB hub Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
Headphone outputs 4
Number of microphone inputs 4
DC-in jack Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 60 Hz
Scan interval 1,99 s
Auto scan delay (min) 1 s
Auto scan delay (max) 99 s
HDCP Yes
Daisy chain Yes
Firmware upgradeable Yes
Rack mounting No
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source DC
DC input voltage 12 V
Power consumption (typical) 3.48 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 156.6 mm
Depth 335 mm
Height 44 mm
Weight 2.74 kg
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 3.36 kg
Cables included Audio (3.5mm), DisplayPort to Mini DisplayPort, USB
Manual Yes
AC adapter included Yes
Master (outer) case net weight 8.22 kg
Harmonized System (HS) code 85176200
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 11.2 kg
Products per master (outer) case 3 pc(s)

Additional information

Mouse port type

USB
Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A
DisplayPort version

1.2
Console USB ports quantity

2
Number of microphone inputs

4
Ethernet LAN

Yes
HD type

4K Ultra HD
Video bandwidth

60 Hz
Auto scan delay (min)

1 s
HDCP

Yes
Firmware upgradeable

Yes
Product colour

Black
LED indicators

Yes
Hot keys

Yes
Power source

DC
Power consumption (typical)

3.48 W
Storage temperature (T-T)

-20 – 60 °C
Width

156.6 mm
Height

44 mm
Package width

116 mm
Package height

233 mm
Cables included

Audio (3.5mm), DisplayPort to Mini DisplayPort, USB
AC adapter included

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

565 mm
Keyboard port type

USB
Video port type

DisplayPort
DisplayPorts quantity

6
USB hub

Yes
Headphone outputs

4
DC-in jack

Yes
Ethernet LAN (RJ-45) ports

1
Maximum resolution

4096 x 2160 pixels
Scan interval

1,99 s
Auto scan delay (max)

99 s
Daisy chain

Yes
Rack mounting

No
Housing material

Metal
Push button

Yes
Built-in display

No
DC input voltage

12 V
Operating temperature (T-T)

0 – 50 °C
Depth

335 mm
Weight

2.74 kg
Package depth

540 mm
Package weight

3.36 kg
Manual

Yes
Master (outer) case width

375 mm
Master (outer) case height

258 mm

Brand

Aten
