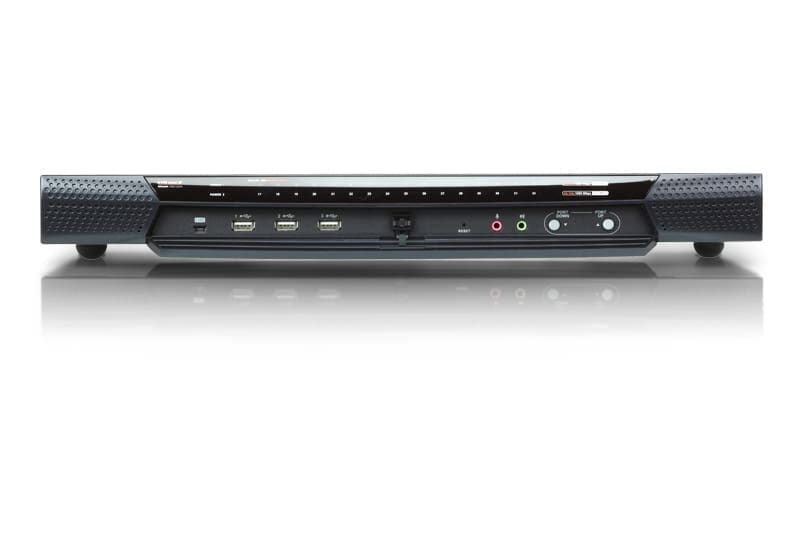

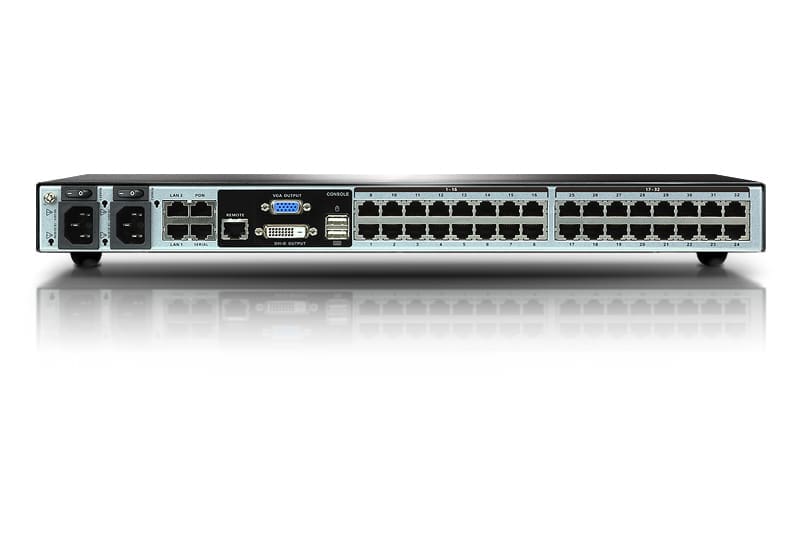

ATEN 32-Port 3-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

Part No:

KN2132VA

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£5,426.83
£6,512.20
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

POA Only 32 Port CAT5 High Density KVM Switch over IP with 1 local console and 2 remote user access (3 bus) Cascade Panel Array Mo de Out-o

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: KN2132VA Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN2132VA features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down.

1x KN2132VA KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x LIN2-418K-E12G Power Cords
1x Mounting Kit
2x 0X12-0017-301G Lok-U-Plugs
1x 0X12-0017-401G Lok-U-Plug Installation Tool
1x Foot Pad Set (4 pcs.)
1x User Instructions

Feature Feature Value
Number of computers controlled 32
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type DVI-D
Console ports DVI-D, USB A, VGA (D-Sub)
DVI-D ports quantity 1
VGA (D-Sub) ports quantity 1
Console USB ports quantity 2
USB connector type Mini-USB
Audio connections Yes
Number of microphone inputs 1
DC-in jack Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 38
Cabling technology 10/100/1000Base-T(X)
Security algorithms FIPS 140-2
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Scan interval 255 s
Number of users 3 user(s)
Rack mounting Yes
Product colour Metallic
Rack capacity 1U
Housing material Metal
LED indicators Link, Power
Push button Yes
Hot keys No
Built-in display No
AC input voltage 100-240 V
AC input frequency 50 – 60 Hz
Input current 1 A
Power consumption (typical) 43.23 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 433.6 mm
Depth 412.1 mm
Height 44 mm
Weight 6.23 kg
Package width 521 mm
Package depth 570 mm
Package height 152 mm
Package weight 7.65 kg
Manual Yes
Master (outer) case net weight 6.23 kg
Harmonized System (HS) code 85176200
Master (outer) case width 506 mm
Master (outer) case length 575 mm
Master (outer) case height 130 mm
Master (outer) case gross weight 7.65 kg
Products per master (outer) case 1 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

DVI-D, USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity

1
USB connector type

Mini-USB
Number of microphone inputs

1
Ethernet LAN

Yes
Cabling technology

10/100/1000Base-T(X)
HD type

WUXGA
Scan interval

255 s
Rack mounting

Yes
Rack capacity

1U
LED indicators

Link, Power
Hot keys

No
AC input voltage

100 – 240 V
Input current

1 A
Operating temperature (T-T)

0 – 40 °C
Depth

412.1 mm
Weight

6.23 kg
Package depth

570 mm
Package weight

7.65 kg
Master (outer) case width

506 mm
Master (outer) case height

130 mm
Keyboard port type

USB, PS/2
Video port type

DVI-D
DVI-D ports quantity

1
Console USB ports quantity

2
Audio connections

Yes
DC-in jack

Yes
Ethernet LAN (RJ-45) ports

38
Security algorithms

FIPS 140-2
Maximum resolution

1920 x 1200 pixels
Number of users

3 user(s)
Product colour

Metallic
Housing material

Metal
Push button

Yes
Built-in display

No
AC input frequency

50/60 Hz
Power consumption (typical)

43.23 W
Storage temperature (T-T)

-20 – 60 °C
Width

433.6 mm
Height

44 mm
Package width

521 mm
Package height

152 mm
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

575 mm

Brand

Aten
