ATEN 32-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

Part No:

KN4132VA

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£7,329.80
£8,795.76
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

POA Only 32 Port CAT5 High Density KVM Switch over IP with 1 local console and 4 remote user access (5 bus) Cascade Panel Array Mo de Out-o

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: KN4132VA Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

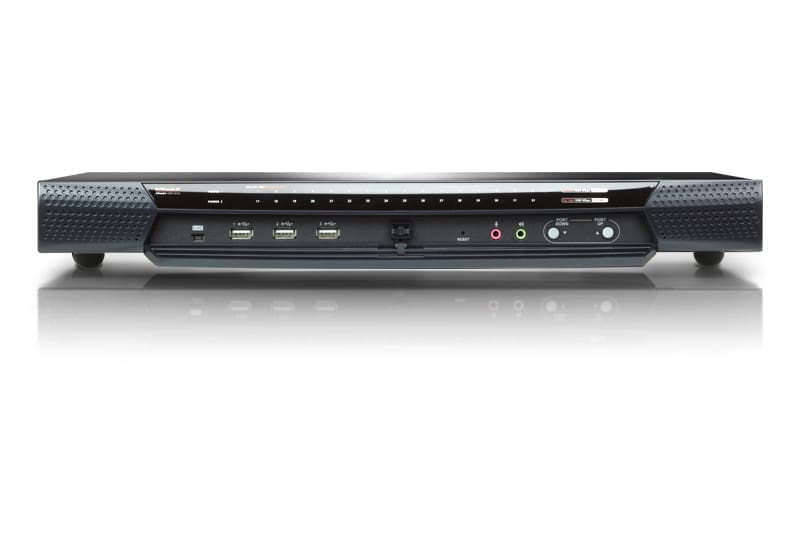

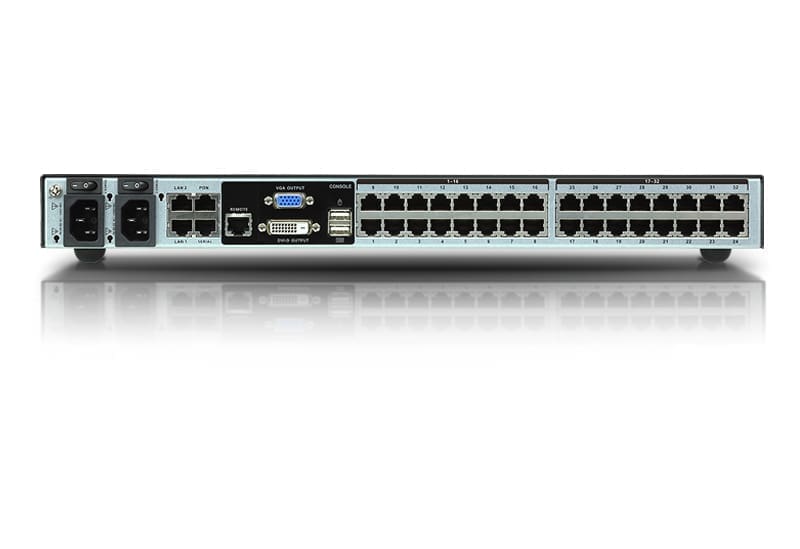

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN4132VA features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down.

1x KN4132VA KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x LIN2-418K-E12G Power Cords
1x Mounting Kit
2x 0X12-0017-301G Lok-U-Plugs
1x 0X12-0017-401G Lok-U-Plug Installation Tool
1x Foot Pad Set (4 pcs.)
1x User Instructions

Feature Feature Value
Number of computers controlled 32
Keyboard port type USB
Mouse port type USB
Video port type DVI-I
Console ports DVI-I, USB A
DVI-I ports quantity 1
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 3
USB connector type Mini-USB B, USB Type-A
Serial port type RJ-45
Serial ports quantity 1
Audio connections Yes
DC-in jack No
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 36
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security algorithms 3DES, 128-bit RC4, 256-bit AES, DES, FIPS 140-2, RSA, SSL/TLS
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Video bandwidth 60 Hz
Scan interval 1,255 s
Rack mounting Yes
Product colour Metallic
Rack capacity 1U
Housing material Metal
Cascadable Yes
LED indicators Yes
Push button Yes
Built-in display No
Power source AC
AC input voltage 100-240 V
AC input frequency 50 – 60 Hz
Input current 1 A
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 412.1 mm
Depth 433.6 mm
Height 44 mm
Weight 6.13 kg
Package width 521 mm
Package depth 570 mm
Package height 152 mm
Package weight 7.68 kg
Cables included AC
Manual Yes
Rack mount kit No
Master (outer) case net weight 6.13 kg
Harmonized System (HS) code 85176200
Master (outer) case width 506 mm
Master (outer) case length 575 mm
Master (outer) case height 130 mm
Master (outer) case gross weight 7.68 kg
Products per master (outer) case 1 pc(s)

Additional information

Mouse port type

USB
Console ports

DVI-I, USB A
Console USB ports quantity

2
Serial port type

RJ-45
Audio connections

Yes
Ethernet LAN

Yes
Cabling technology

10/100/1000Base-T(X)
Security algorithms

3DES, 128-bit RC4, 256-bit AES, DES, FIPS 140-2, RSA, SSL/TLS
Maximum resolution

1920 x 1200 pixels
Scan interval

1,255 s
Product colour

Metallic
Housing material

Metal
LED indicators

Yes
Built-in display

No
AC input voltage

100 – 240 V
Input current

1 A
Operating temperature (T-T)

0 – 40 °C
Depth

433.6 mm
Weight

6.13 kg
Package depth

570 mm
Package weight

7.68 kg
Manual

Yes
Master (outer) case width

506 mm
Master (outer) case height

130 mm
Keyboard port type

USB
Video port type

DVI-I
DVI-I ports quantity

1
USB hub

Yes
USB connector type

Mini-USB B, USB Type-A
Serial ports quantity

1
DC-in jack

No
Ethernet LAN (RJ-45) ports

36
Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
HD type

WUXGA
Video bandwidth

60 Hz
Rack mounting

Yes
Rack capacity

1U
Cascadable

Yes
Push button

Yes
Power source

AC
AC input frequency

50/60 Hz
Storage temperature (T-T)

-20 – 60 °C
Width

412.1 mm
Height

44 mm
Package width

521 mm
Package height

152 mm
Cables included

AC
Rack mount kit

No
Harmonized System (HS) code

85176200
Master (outer) case length

575 mm

Brand

Aten
