Description
The ATEN CS1924 4-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1924 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.

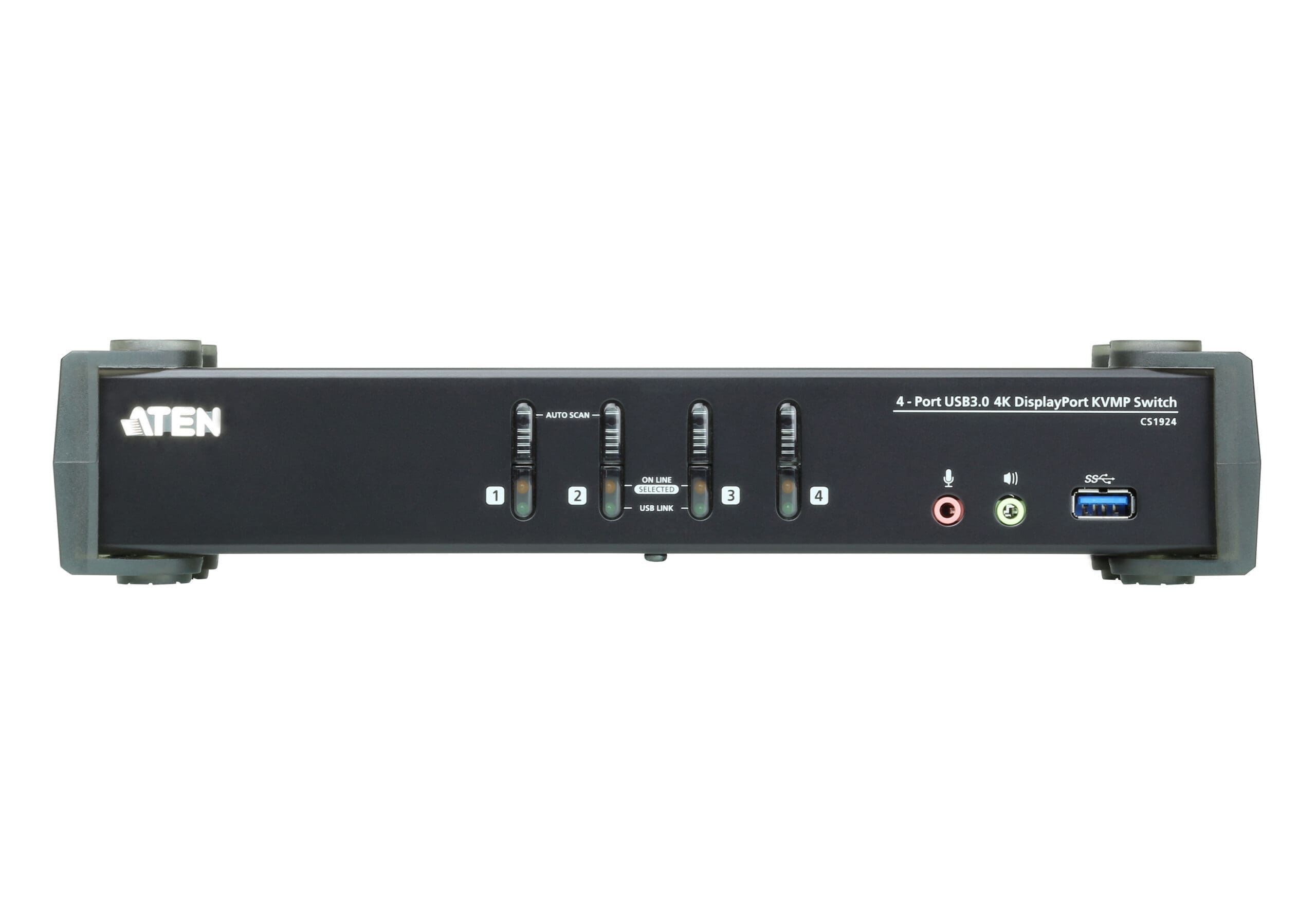

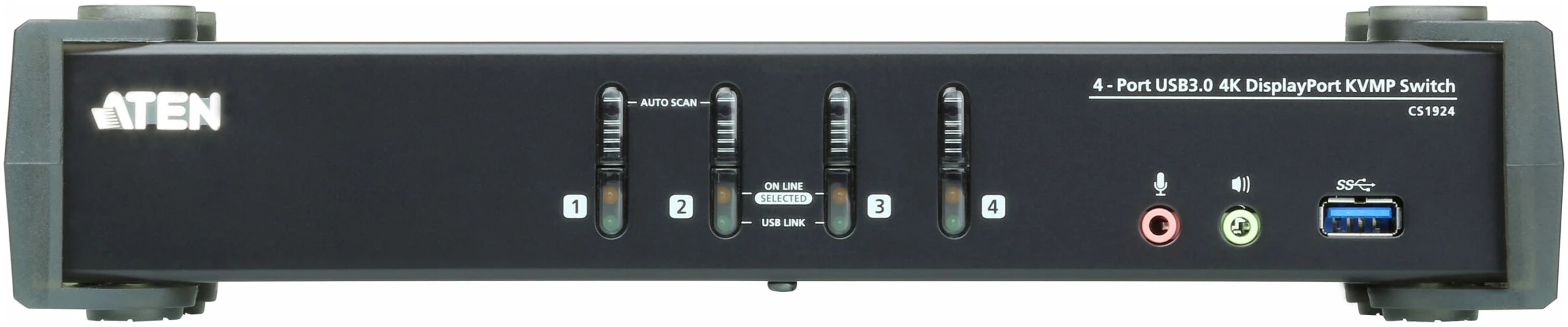

As a KVM switch, the CS1924 allows users to access four DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1924 provides three convenient switching methods – using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation.
The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server, modem splitter, etc.
With its rich feature set, the CS1924 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1924 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.
| Feature |
Feature Value |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
USB A |
| Display connection |
Yes |
| Console USB ports quantity |
2 |
| USB hub |
Yes |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
6 |
| USB connector type |
USB Type-A, USB Type-B |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Audio connections |
Yes |
| Headphone outputs |
6 |
| Number of microphone inputs |
6 |
| DC-in jack |
Yes |
| Ethernet LAN |
No |
| Maximum resolution |
4096 x 2160 pixels |
| Maximum digital resolution |
4096 x 2160 pixels |
| Scan interval |
1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s |
| HDCP |
Yes |
| Hot-Plug support |
Yes |
| Audio channels |
2.1 |
| Product colour |
Black |
| Housing material |
Metal, Plastic |
| LED indicators |
Activity, Link |
| Push button |
Yes |
| Built-in display |
No |
| Windows operating systems supported |
Windows 10 Home, Windows 2000, Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home Premium, Windows XP Home |
| Linux operating systems supported |
RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 9.3 |
| Mac operating systems supported |
Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Sustainability certificates |
RoHS |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
88 mm |
| Depth |
270 mm |
| Height |
55.5 mm |
| Weight |
910 g |

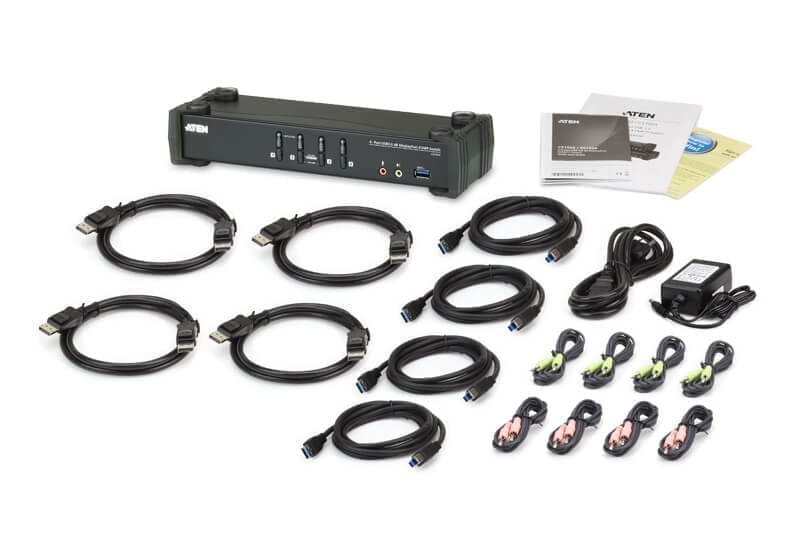

| Cables included |
Audio (3.5mm), DisplayPort, USB |
| Manual |
Yes |
| AC adapter included |
Yes |
| Power requirements |
5V DC |
