ATEN 4-Port USB DVI Dual Link KVM Switch with Audio & USB 2.0 Hub (KVM cables included)

Part No:

CS1784A

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

4 port Dual-Link DVI / USB 2.0 KVMP Switch with Audio Support (4 KVM Cables included)

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS1784A Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

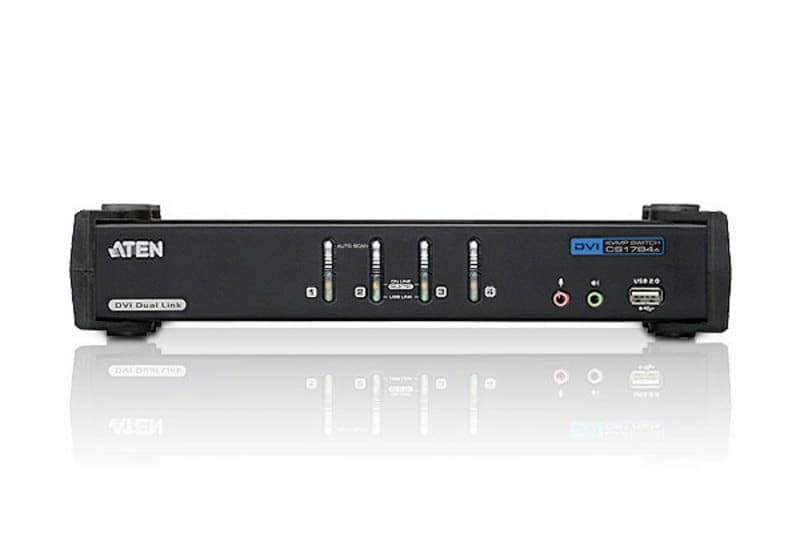

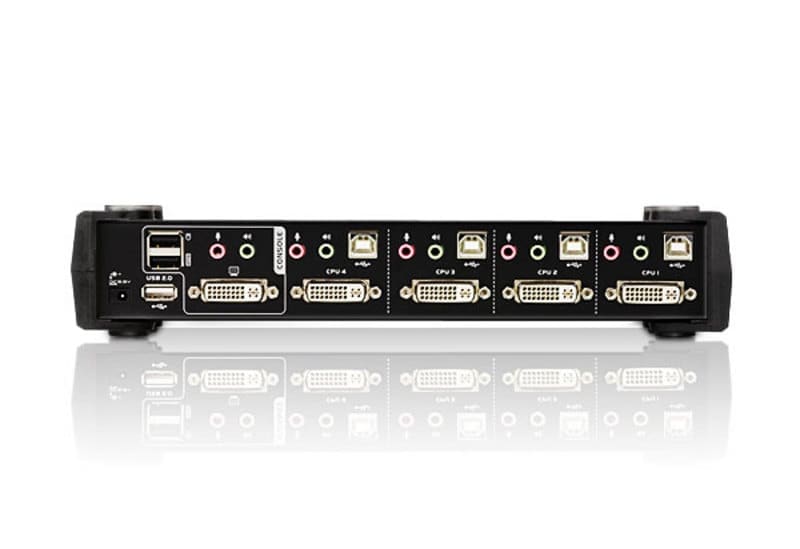

The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
1 x CS1784A USB DVI Dual Link KVMP™ Switch
4 x 2L-7D02UD DVI-D KVM Cable Sets
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions

Feature Feature Value
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type DVI-I
Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A
DVI-I ports quantity 4
USB 2.0 Type-B ports quantity 4
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 6
Number of microphone inputs 6
DC-in jack Yes
HD type WQXGA
Maximum resolution 2560 x 1600 pixels
Video bandwidth 60 Hz
Scan interval 1,5,99 s
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source DC
DC input voltage 5.3 V
Power consumption (typical) 5.91 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 270 mm
Depth 88 mm
Height 55.5 mm
Weight 2.32 kg
Package width 98 mm
Package depth 325 mm
Package height 210 mm
Package weight 2.56 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 11.6 kg
Harmonized System (HS) code 85176200
Master (outer) case width 342 mm
Master (outer) case length 512 mm
Master (outer) case height 232 mm
Master (outer) case gross weight 13.5 kg
Products per master (outer) case 5 pc(s)

Additional information

Mouse port type

USB
Console ports

3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB hub

Yes
USB connector type

USB Type-A, USB Type-B
Headphone outputs

6
DC-in jack

Yes
Maximum resolution

2560 x 1600 pixels
Scan interval

1,5,99 s
Housing material

Metal
Push button

Yes
Built-in display

No
DC input voltage

5.3 V
Operating temperature (T-T)

0 – 50 °C
Width

270 mm
Height

55.5 mm
Package width

98 mm
Package height

210 mm
Quick installation guide

Yes
Master (outer) case width

342 mm
Master (outer) case height

232 mm
Keyboard port type

USB
Video port type

DVI-I
DVI-I ports quantity

4
Console USB ports quantity

2
Audio connections

Yes
Number of microphone inputs

6
HD type

WQXGA+
Video bandwidth

60 Hz
Product colour

Black
LED indicators

Yes
Hot keys

Yes
Power source

DC
Power consumption (typical)

5.91 W
Storage temperature (T-T)

-20 – 60 °C
Depth

88 mm
Weight

2.32 kg
Package depth

325 mm
Package weight

2.56 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

512 mm

Brand

Aten
