ATEN 4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch

Part No:

CL3884NW

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

18.5 Short Depth USB HDMI

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CL3884NW Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

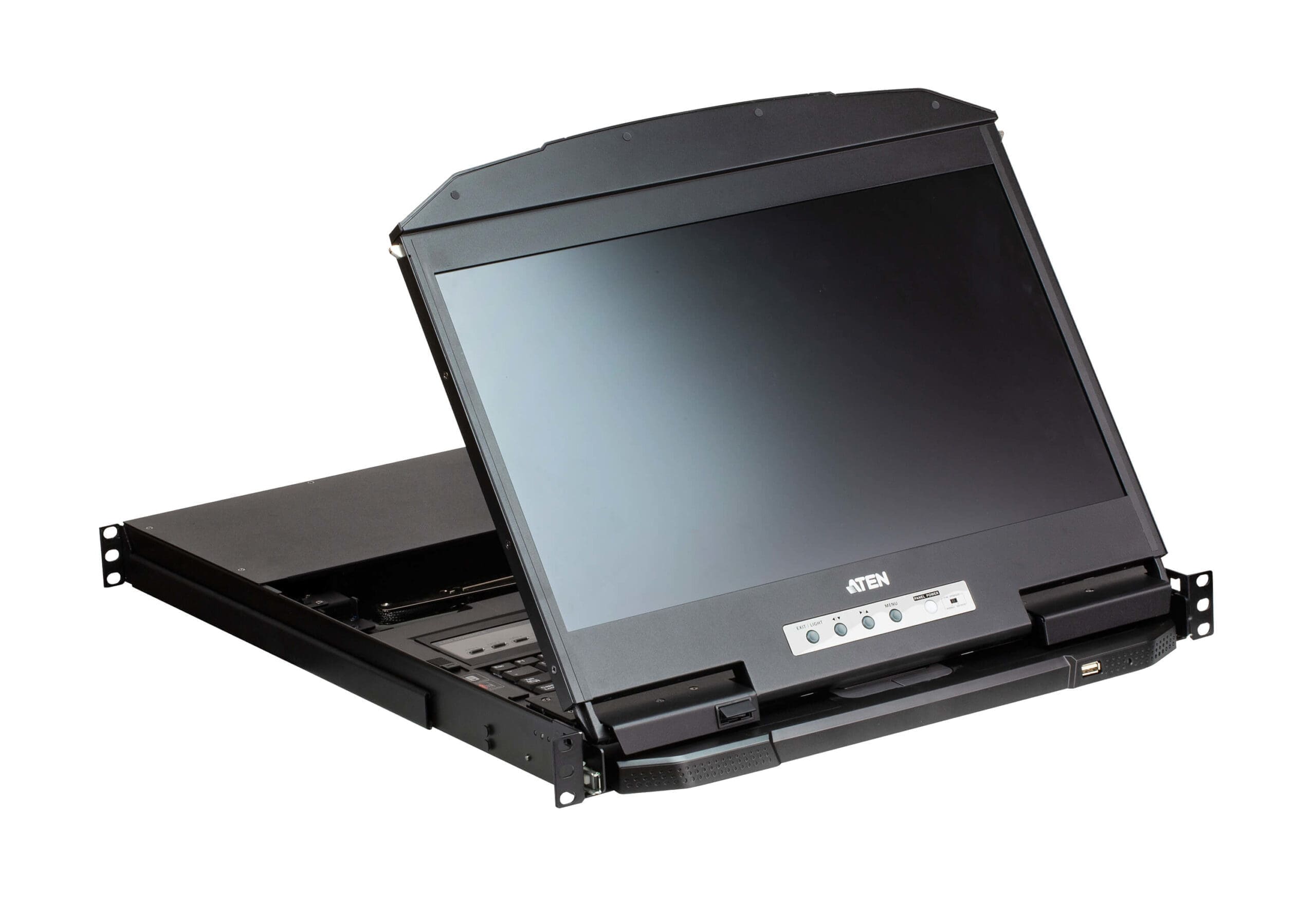

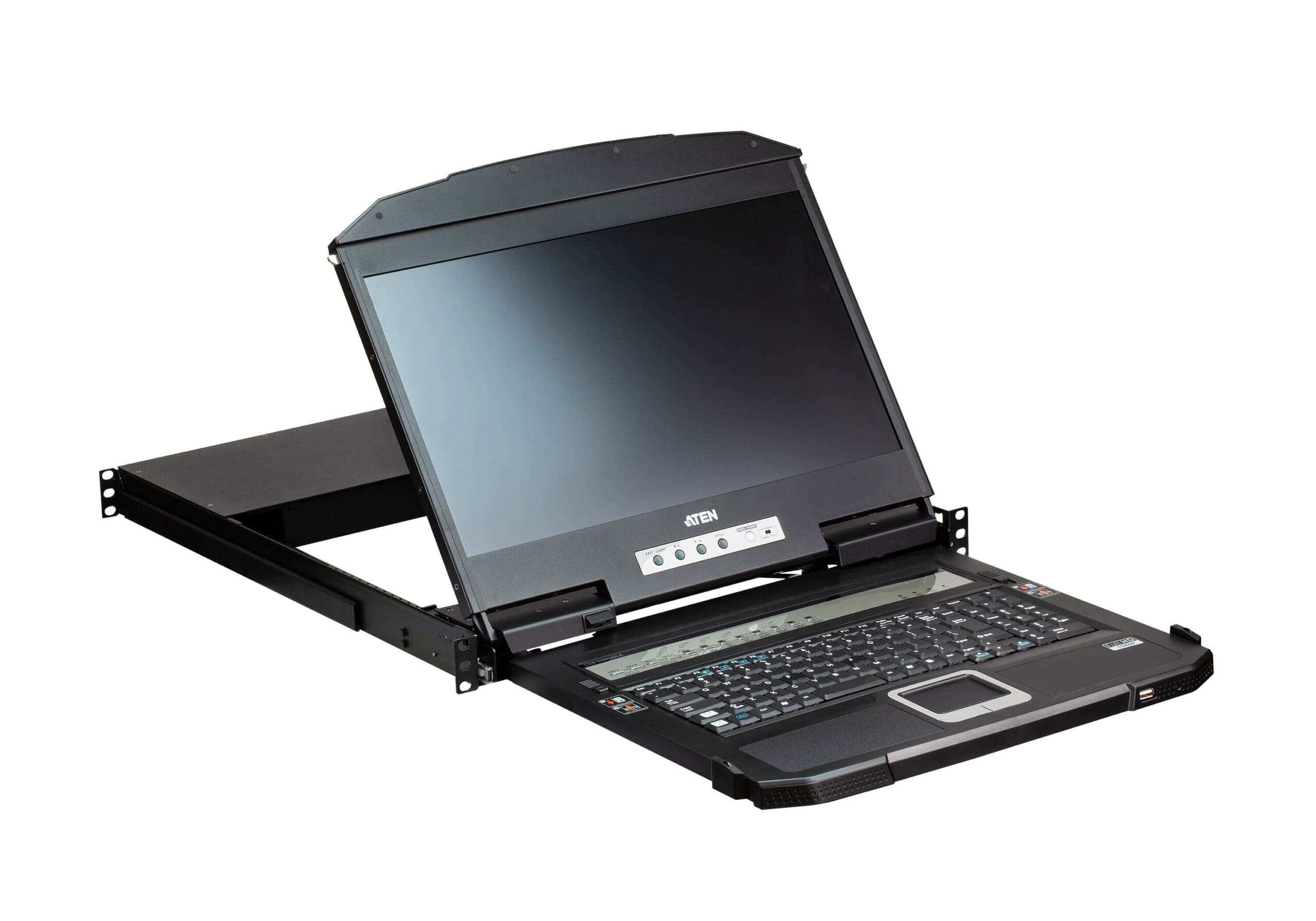

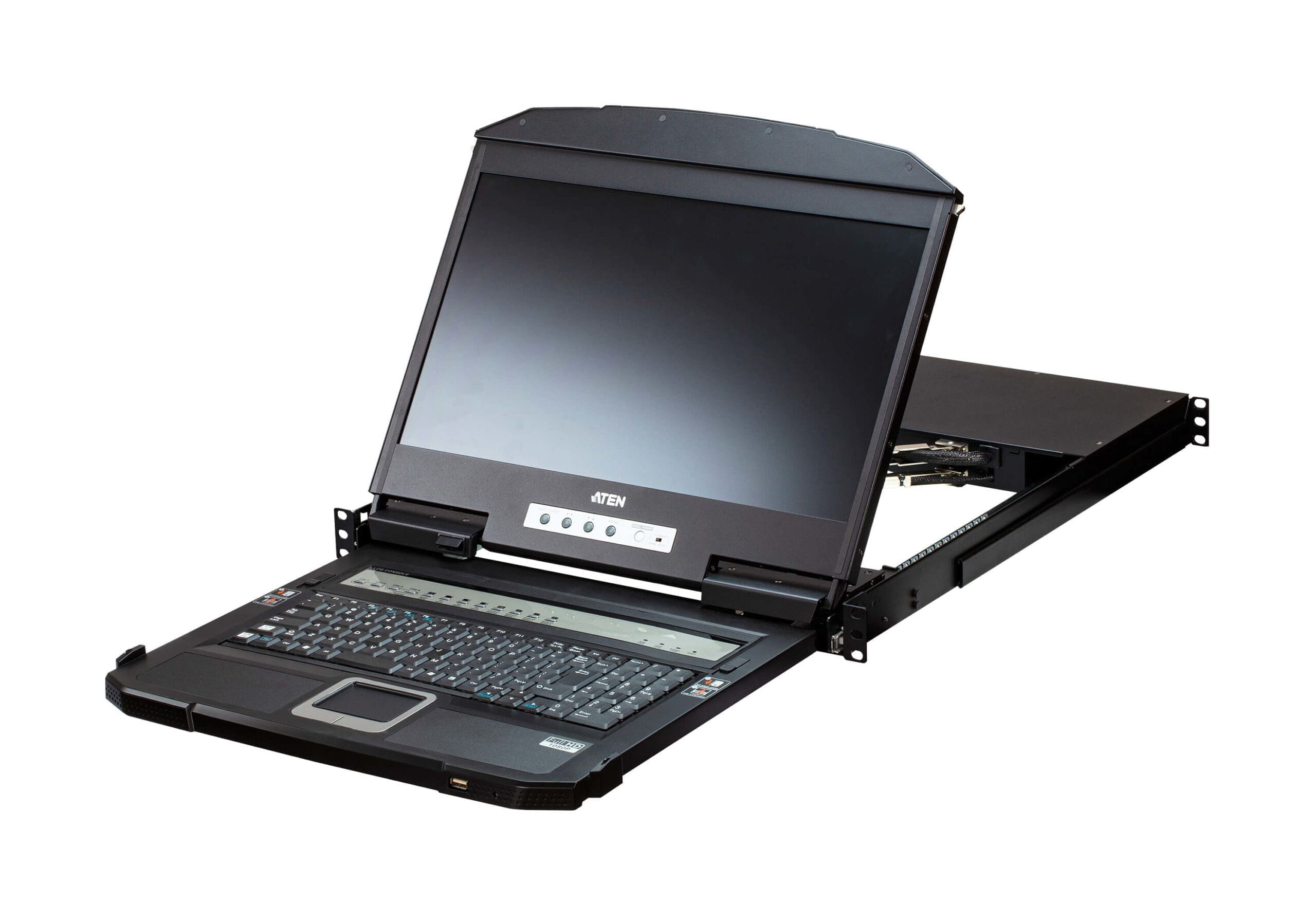

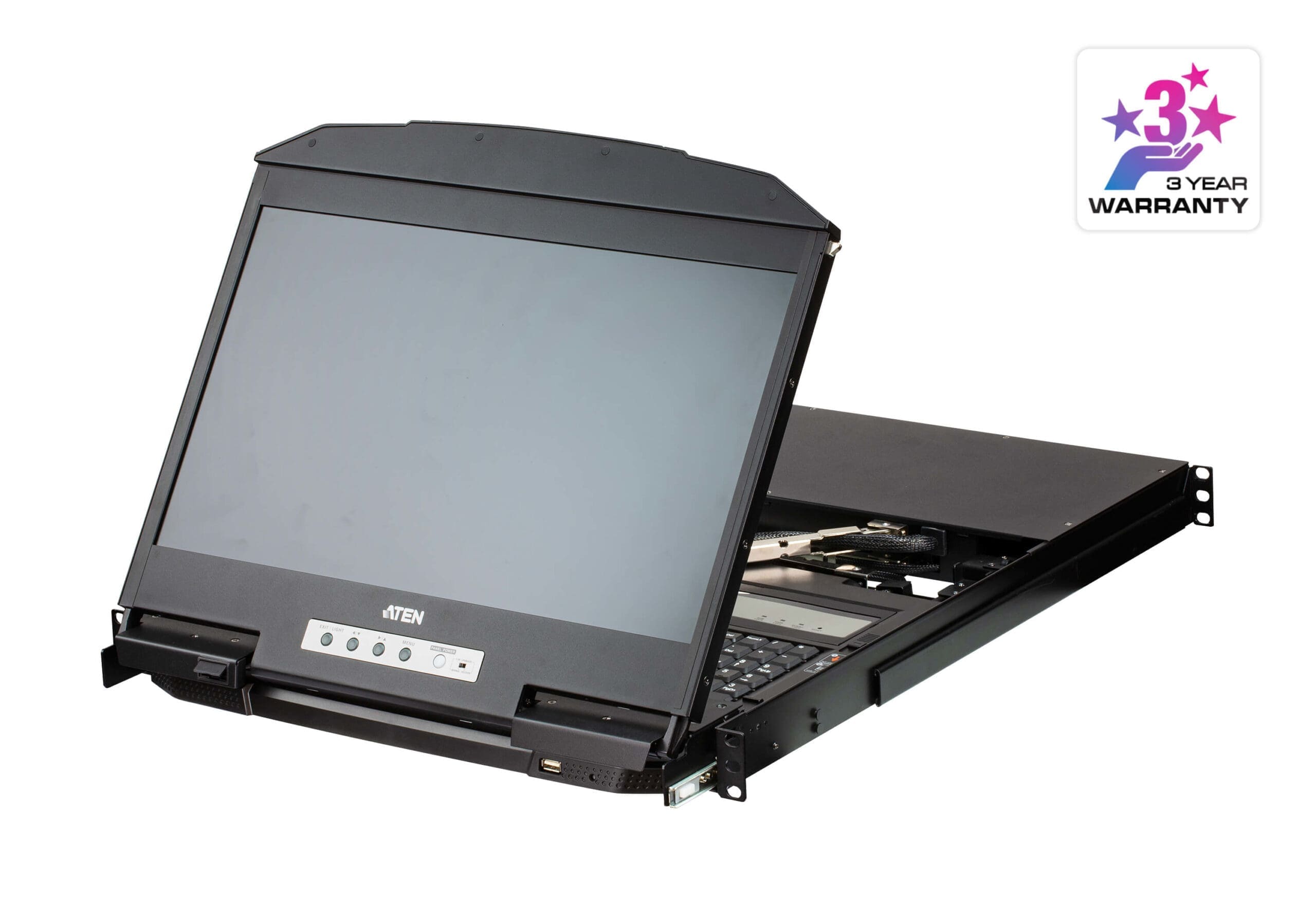

The ATEN CL3884NW LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5″ LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to “hideaway” when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.
1x CL3884NW LCD KVM Switch with Standard Rack Mounting Kit
2x LIN5-28V1-V11G KVM Cable Sets (USB, HDMI, Audio; 1.8m)
2x KC06-0024-100G/200G L Brackets
1x LIN2-418K-E12G Power Cord
1x User Instructions

Feature Feature Value
Number of computers controlled 16
Keyboard port type USB
Mouse port type USB
Video port type HDMI

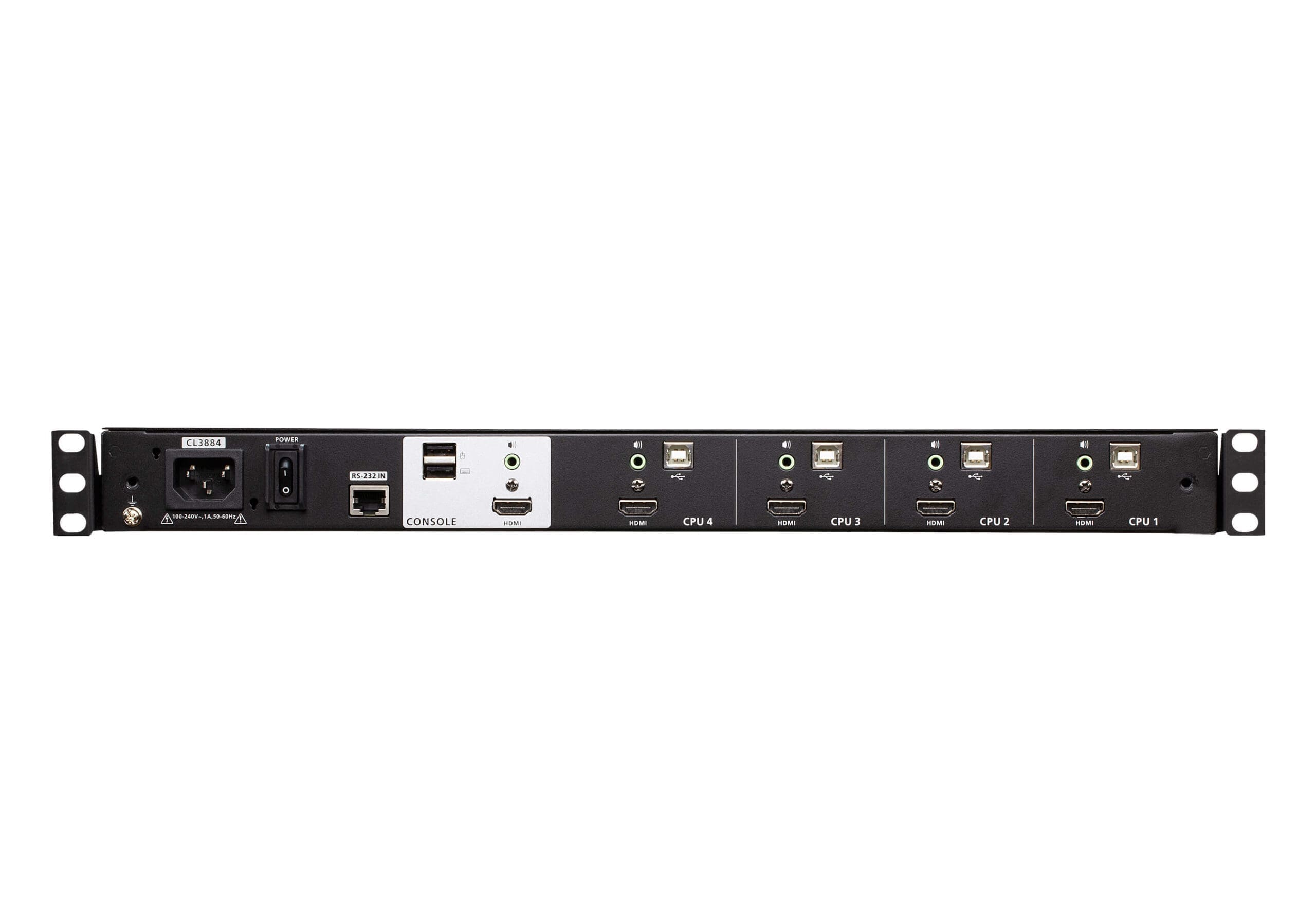

Console ports 3.5mm headphone, HDMI, USB A
HDMI ports quantity 4
USB 2.0 Type-B ports quantity 4
Console USB ports quantity 2
USB connector type USB Type-A, USB Type-B
Serial port type RJ-45
Audio connections Yes
Headphone outputs 4
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
HD type Full HD+
Maximum resolution 1920 x 1200 pixels
Video bandwidth 60 Hz
Scan interval 5,10,15,30,60,90 s
Rack mounting Yes
Product colour Black
LED indicators Yes
Push button Yes
Built-in display Yes
Display LCD
Display diagonal 47 cm (18.5″)
Power source DC
AC input voltage 100 – 240 V
AC input frequency 50-60 Hz
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 85%
Storage relative humidity (H-H) 0 – 85%
Width 631 mm
Depth 480.6 mm
Height 42.8 mm
Weight 11.8 kg
Package width 668 mm
Package depth 718 mm
Package height 135 mm
Package weight 14.6 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 11.8 kg
Harmonized System (HS) code 85176200
Master (outer) case width 668 mm
Master (outer) case length 718 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 14.6 kg
Products per master (outer) case 1 pc(s)

Additional information

Mouse port type

USB
Console ports

3.5mm headphone, HDMI, USB A
USB connector type

USB Type-A, USB Type-B
Audio connections

Yes
Ethernet LAN

Yes
HD type

Full HD
Video bandwidth

60 Hz
Rack mounting

Yes
LED indicators

Yes
Built-in display

Yes
Display diagonal

47 cm (18.5")
AC input voltage

100 – 240 V
Operating temperature (T-T)

0 – 40 °C
Width

631 mm
Height

42.8 mm
Package width

668 mm
Package height

135 mm
Quick installation guide

Yes
Master (outer) case width

668 mm
Master (outer) case height

135 mm
Keyboard port type

USB
Video port type

HDMI
HDMI ports quantity

4
Console USB ports quantity

2
Serial port type

RJ-45
Headphone outputs

4
Ethernet LAN (RJ-45) ports

1
Maximum resolution

1920 x 1200 pixels
Scan interval

5,10,15,30,60,90 s
Product colour

Black
Push button

Yes
Display

LCD
Power source

DC
AC input frequency

50/60 Hz
Storage temperature (T-T)

-20 – 60 °C
Depth

480.6 mm
Weight

11.8 kg
Package depth

718 mm
Package weight

14.6 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

718 mm

Brand

Aten
