ATEN 4-Port USB KM Switch

Part No:

CS724KM

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

4-Port USB Boundless KM Switch

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS724KM Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

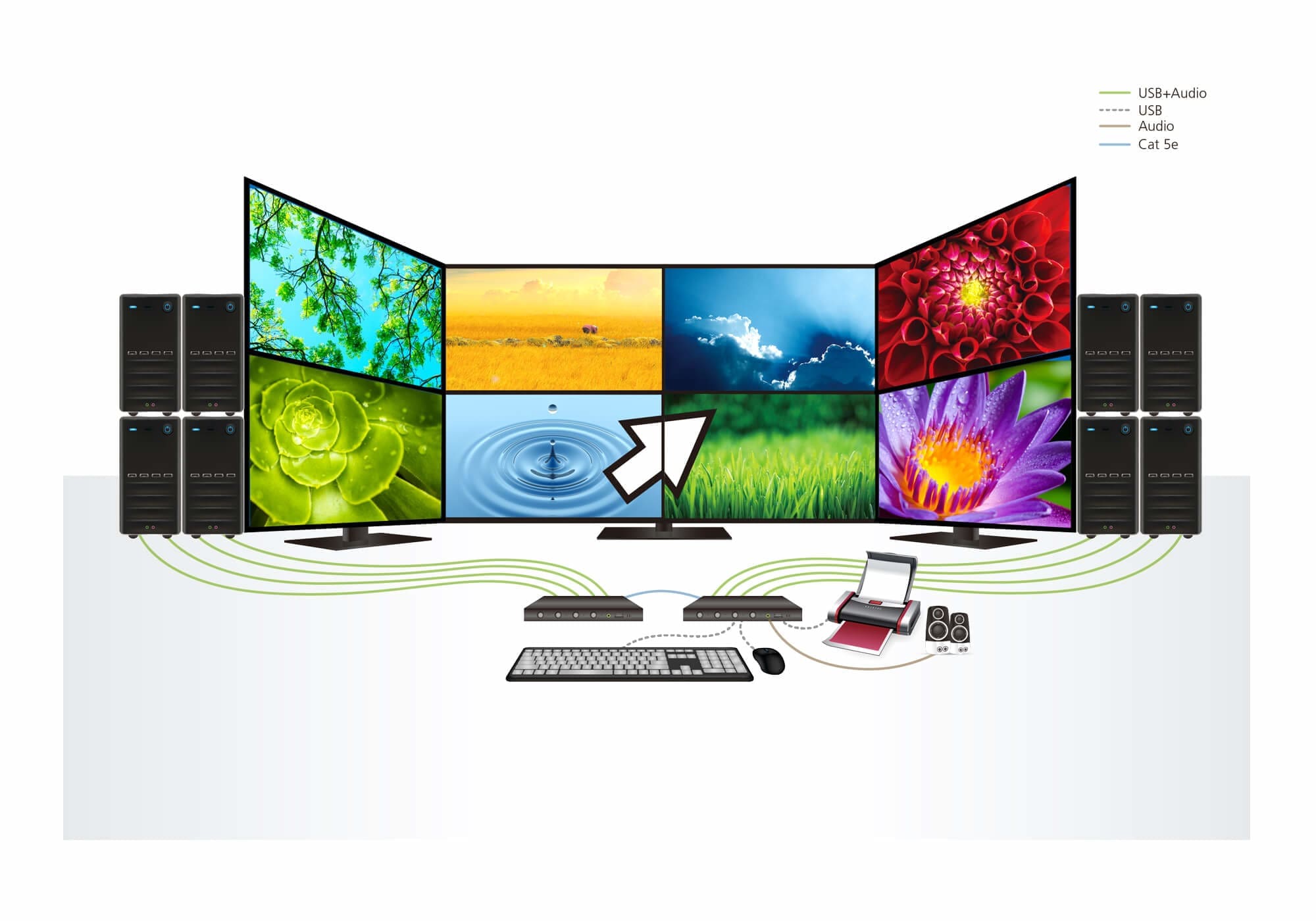

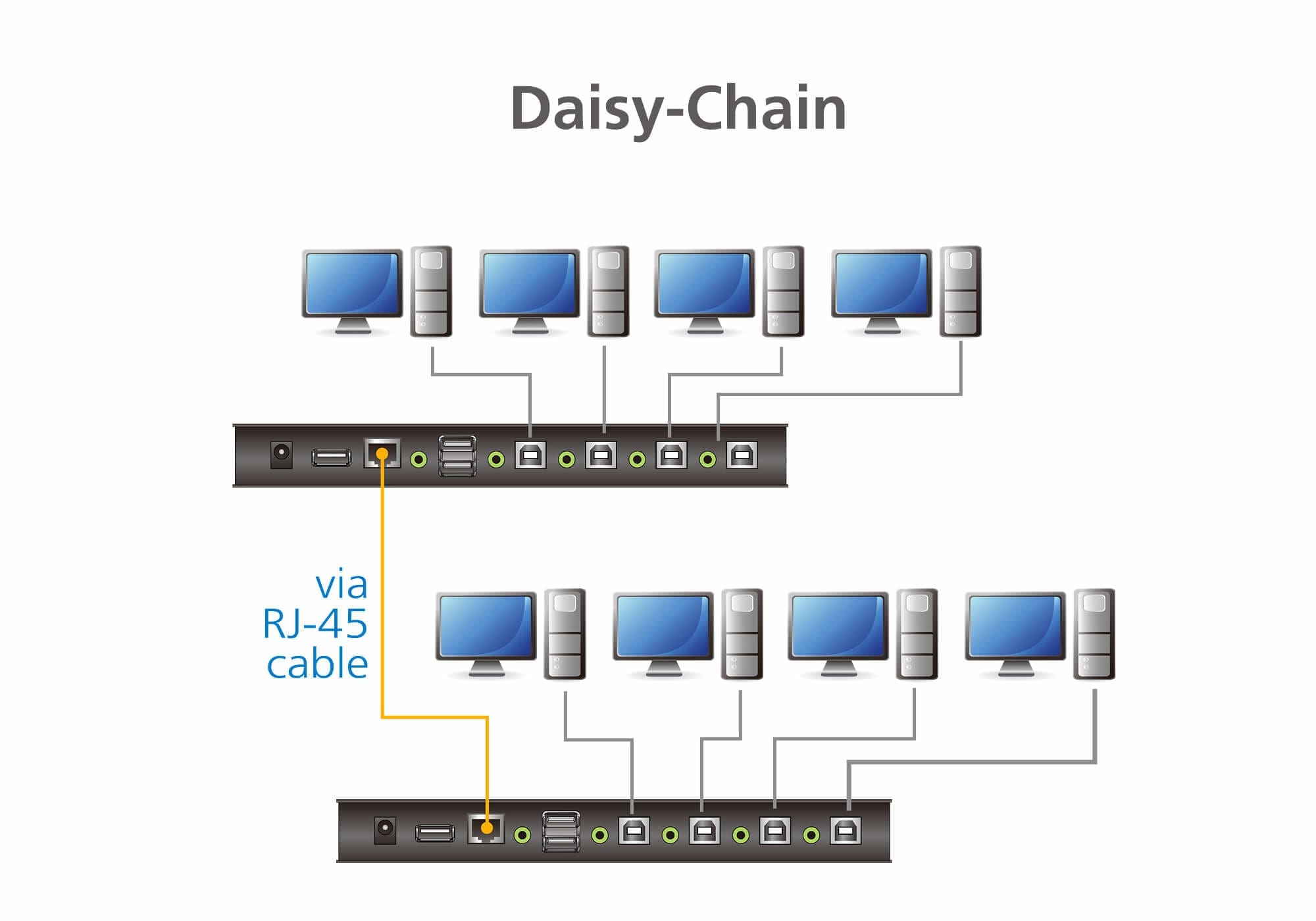

The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.

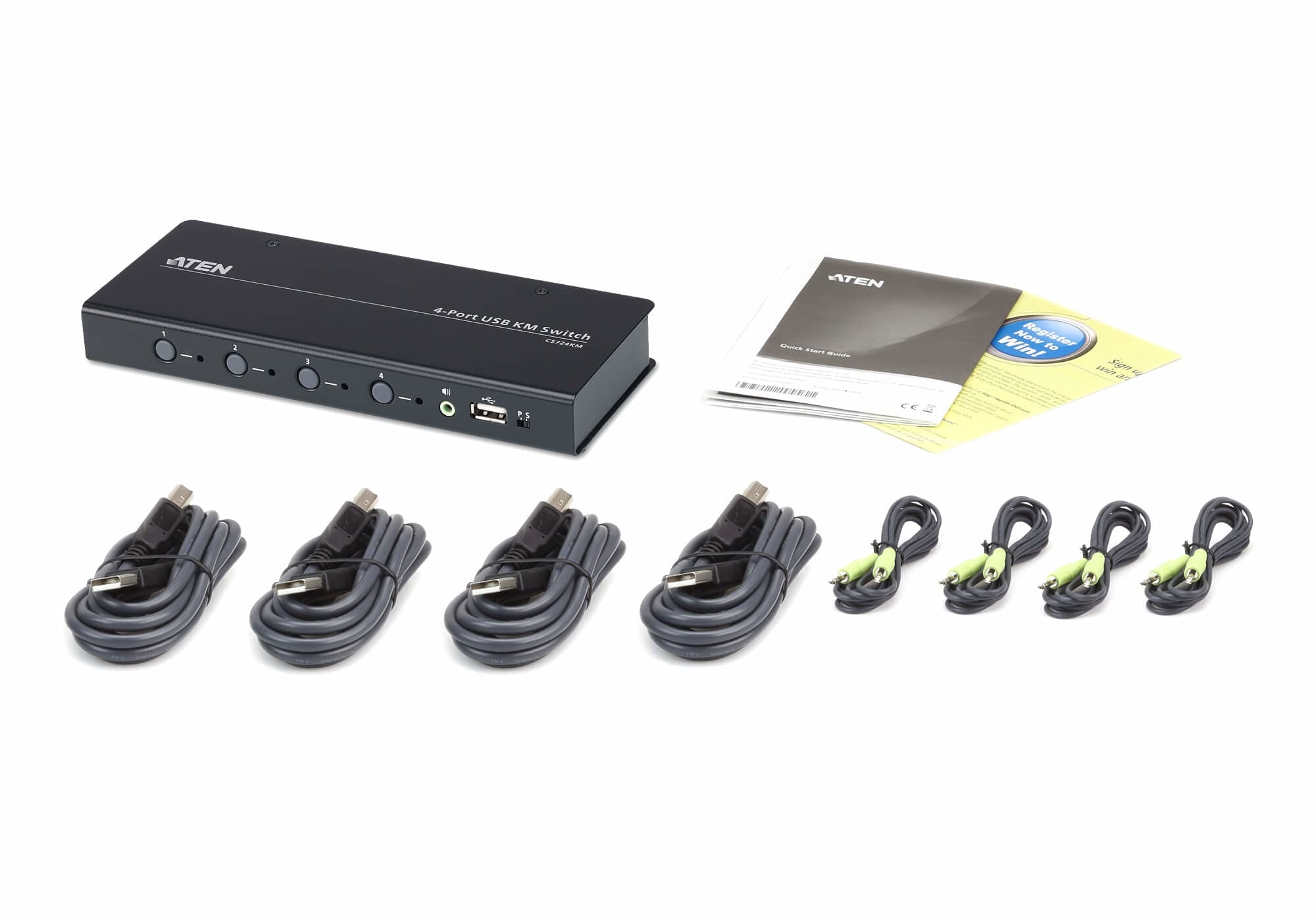

1x 4-port USB Boundless KM Switch
4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
1x User Instructions

Feature Feature Value
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Console ports 3.5mm headphone, RJ–45, USB A
USB 2.0 Type-B ports quantity 4
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
DC-in jack Yes
Daisy chain Yes
Product colour Black
Housing material Metal, Plastic
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source DC
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 200 mm
Depth 80.6 mm
Height 25 mm
Weight 899 g
Package width 62 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.07 kg
Cables included Audio (3.5mm), USB
Manual Yes
Master (outer) case net weight 4.5 kg
Harmonized System (HS) code 85176200
Master (outer) case width 300 mm
Master (outer) case length 336 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 5.73 kg
Products per master (outer) case 5 pc(s)

Additional information

Mouse port type

USB
USB hub

Yes
DC-in jack

Yes
Product colour

Black
LED indicators

Yes
Hot keys

Yes
Power source

DC
Storage temperature (T-T)

-20 – 60 °C
Width

200 mm
Height

25 mm
Package width

62 mm
Package height

173 mm
Cables included

Audio (3.5mm), USB
Master (outer) case width

300 mm
Master (outer) case height

194 mm
Keyboard port type

USB
Console ports

3.5mm headphone, RJ–45, USB A
Console USB ports quantity

2
Daisy chain

Yes
Housing material

Metal, Plastic
Push button

Yes
Built-in display

No
Operating temperature (T-T)

0 – 50 °C
Depth

80.6 mm
Weight

899 g
Package depth

283 mm
Package weight

1.07 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

336 mm

Brand

Aten
