ATEN 4-Port USB – PS/2 VGA KVM Switch (KVM Cables included)

Part No:

CS84U

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

CS84U-AT

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS84U Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

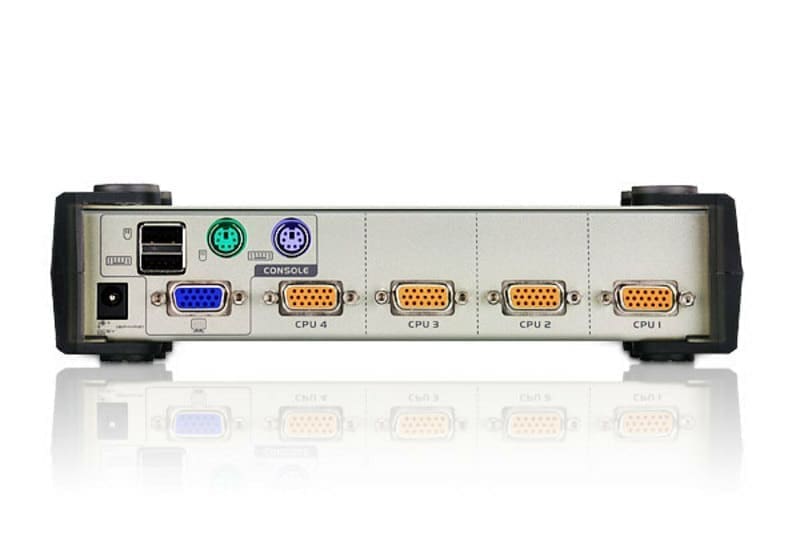

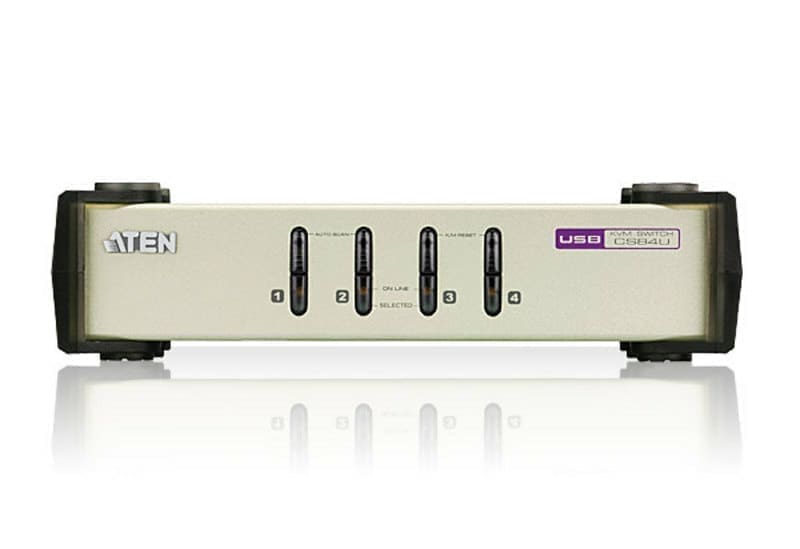

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN’s new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
1x CS84U PS/2-USB KVM Switch
2x 2L-5301UP PS/2-USB KVM Cables
2x 2L-5302UP PS/2-USB KVM Cables
1x User Instructions

Feature Feature Value
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type VGA
Console ports USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity 4
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A
DC-in jack Yes
HD type QXGA
Maximum resolution 2048 x 1536 pixels
Video bandwidth 60 Hz
Scan interval 3,5,10,20 s
DDC2B support Yes
Rack mounting No
Product colour Black, Grey
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source DC
Input voltage 5 V
Power consumption (typical) 0.45 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 210 mm
Depth 88 mm
Height 55.5 mm
Weight 1.51 kg
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.69 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 7.57 kg
Harmonized System (HS) code 85176200
Master (outer) case width 292 mm
Master (outer) case length 517 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 8.98 kg
Products per master (outer) case 5 pc(s)

Additional information

Mouse port type

USB
Console ports

USB A, VGA (D-Sub)
DC-in jack

Yes
Maximum resolution

2048 x 1536 pixels
Scan interval

3,5,10,20 s
Rack mounting

No
Housing material

Metal
Push button

Yes
Built-in display

No
Input voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Width

210 mm
Height

55.5 mm
Package width

100 mm
Package height

173 mm
Quick installation guide

Yes
Master (outer) case width

292 mm
Master (outer) case height

194 mm
Keyboard port type

USB
Video port type

VGA
VGA (D-Sub) ports quantity

4
USB connector type

USB Type-A
HD type

QXGA
Video bandwidth

60 Hz
DDC2B support

Yes
Product colour

Black, Grey
LED indicators

Yes
Hot keys

Yes
Power source

DC
Power consumption (typical)

0.45 W
Storage temperature (T-T)

-20 – 60 °C
Depth

88 mm
Weight

1.51 kg
Package depth

283 mm
Package weight

1.69 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

517 mm

Brand

Aten
