ATEN 4-Port USB – PS/2 VGA KVM Switch with Audio & USB 2.0 Hub (KVM Cables included)

Part No:

CS1734B

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

4 PORT KVMP SWITCH PS2/USB + AUDIO SUPPORT (4 CABLES INC) 4 USB HUB PORTS

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS1734B Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

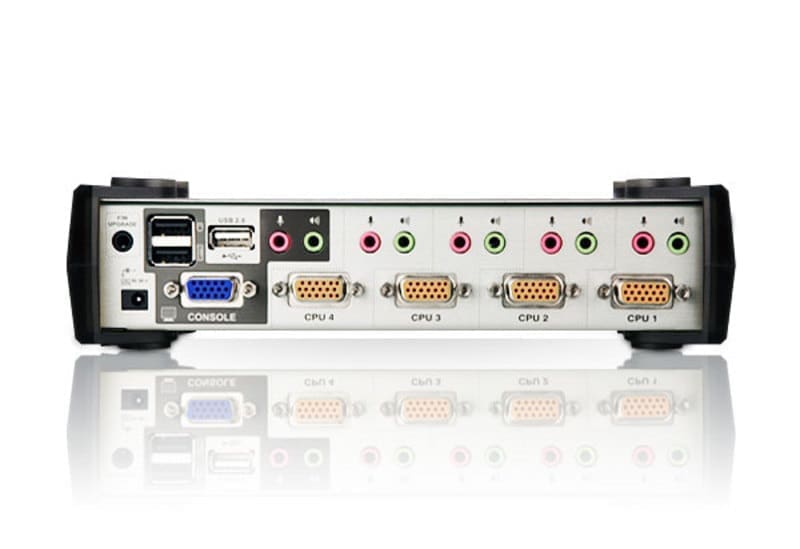

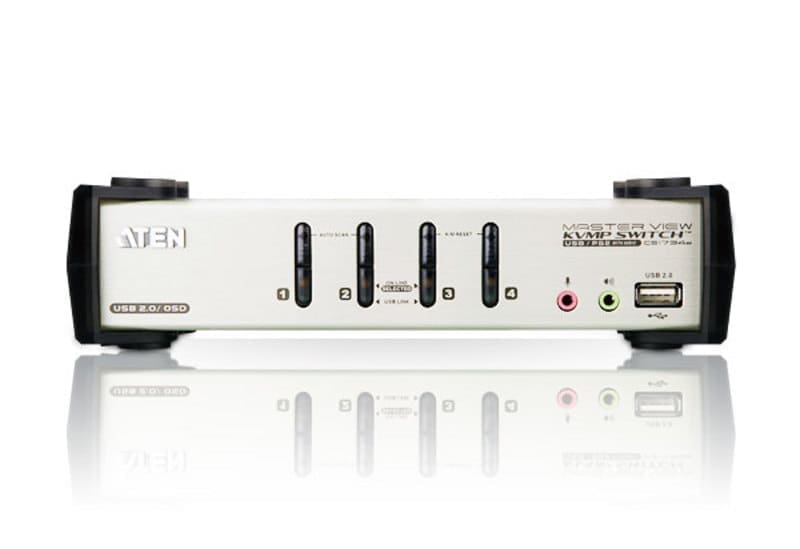

The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1x CS1734B 4-Port USB 2.0 KVMP™ Switch
2x 2L-5301U USB KVM Cables (1.2m)
2x 2L-5302U USB KVM Cables (1.8m)
2x OSD/Hotkey Stickers
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Feature Feature Value
Number of computers controlled 4
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity 1
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
Audio connections Yes
Headphone outputs 6
Number of microphone inputs 6
HD type QXGA
Maximum resolution 2048 x 1536 pixels
Video bandwidth 60 Hz
Scan interval 1,255 s
DDC2B support Yes
Firmware upgradeable Yes
Product colour Black, Metallic
Housing material Metal
Push button Yes
Hot keys Yes
Built-in display No
On Screen Display (OSD) Yes
Power source DC
DC input voltage 5 V
Power consumption (typical) 1.02 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 88 mm
Depth 210 mm
Height 55.5 mm
Weight 1.95 kg
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 2.09 kg
Cables included KVM, USB
Master (outer) case net weight 9.75 kg
Harmonized System (HS) code 85176200
Master (outer) case width 292 mm
Master (outer) case length 517 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 11 kg
Products per master (outer) case 5 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity

2
Headphone outputs

6
HD type

QXGA
Video bandwidth

60 Hz
DDC2B support

Yes
Product colour

Black, Metallic
Push button

Yes
Built-in display

No
Power source

DC
Power consumption (typical)

1.02 W
Storage temperature (T-T)

-20 – 60 °C
Width

88 mm
Height

55.5 mm
Package width

100 mm
Package height

173 mm
Cables included

KVM, USB
Harmonized System (HS) code

85176200
Master (outer) case length

517 mm
Keyboard port type

USB, PS/2
Video port type

VGA
VGA (D-Sub) ports quantity

1
USB hub

Yes
Audio connections

Yes
Number of microphone inputs

6
Maximum resolution

2048 x 1536 pixels
Scan interval

1,255 s
Firmware upgradeable

Yes
Housing material

Metal
Hot keys

Yes
On Screen Display (OSD)

Yes
DC input voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Depth

210 mm
Weight

1.95 kg
Package depth

283 mm
Package weight

2.09 kg
Master (outer) case width

292 mm
Master (outer) case height

194 mm

Brand

Aten
