ATEN 4-Port USB VGA KVM with Audio (KVM Cables included)

Part No:

CS74U

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

CS74U-AT

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS74U Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor).

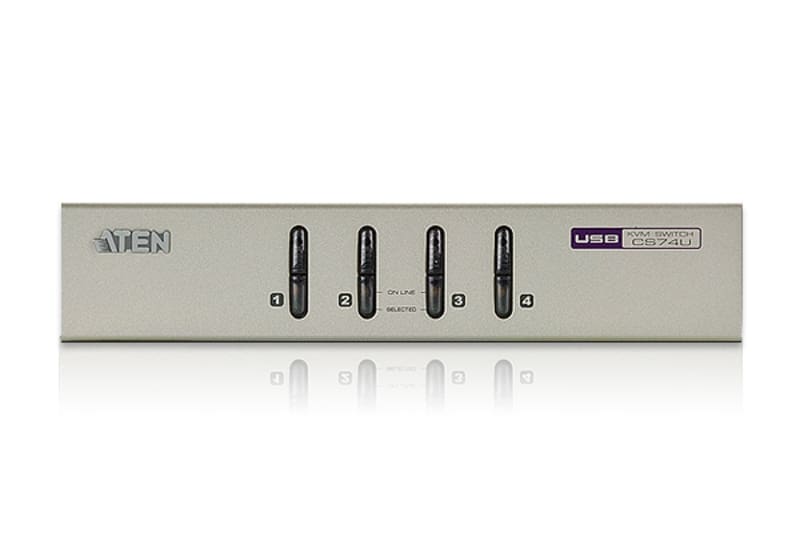

With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit’s front panel.
1x CS74U 4-Port USB KVM Switch
2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
2x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
1x User Instructions

Note: The provided custom KVM cable set is custom-made to work with CS72U / CS74U, which transmits video, audio, and USB signals from the unit to the connected PC. There are two custom KVM cable sets available for purchase (1.2 m custom KVM cable set: LIN5-23X5-X31G; 1.8 m custom KVM cable set: LIN5-23X5-X32G). To purchase additional custom-made KVM cables, please contact your ATEN dealer for more information.

Feature Feature Value
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type VGA

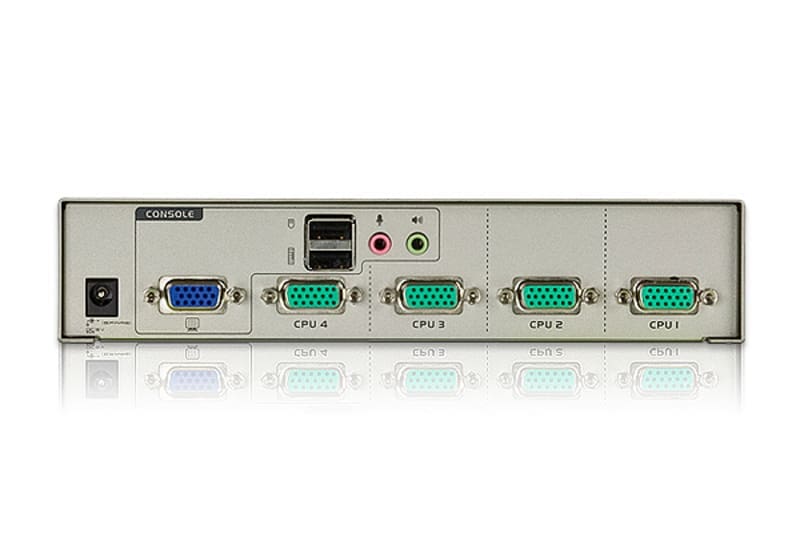

Console ports 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity 4
Console USB ports quantity 2
Audio connections Yes
Headphone outputs 1
Number of microphone inputs 1
DC-in jack Yes
HD type QXGA
DDC2B support Yes
Rack mounting No
Product colour Grey
Housing material Metal
Built-in display No
Power source DC
Input voltage 5 V
Power consumption (typical) 0.177 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 200 mm
Depth 76.5 mm
Height 44 mm
Weight 1.47 kg
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.67 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 7.33 kg
Harmonized System (HS) code 85176200
Master (outer) case width 292 mm
Master (outer) case length 517 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 8.67 kg
Products per master (outer) case 5 pc(s)

Additional information

Mouse port type

USB
Console ports

3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity

2
Headphone outputs

1
DC-in jack

Yes
DDC2B support

Yes
Product colour

Grey
Built-in display

No
Input voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Width

200 mm
Height

44 mm
Package width

100 mm
Package height

173 mm
Quick installation guide

Yes
Master (outer) case width

292 mm
Master (outer) case height

194 mm
Keyboard port type

USB
Video port type

VGA
VGA (D-Sub) ports quantity

4
Audio connections

Yes
Number of microphone inputs

1
HD type

QXGA
Rack mounting

No
Housing material

Metal
Power source

DC
Power consumption (typical)

0.177 W
Storage temperature (T-T)

-20 – 60 °C
Depth

76.5 mm
Weight

1.47 kg
Package depth

283 mm
Package weight

1.67 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

517 mm

Brand

Aten
