4P USB3.0 4K DP TRIPLE VIEW KVMP SW

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS1964 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

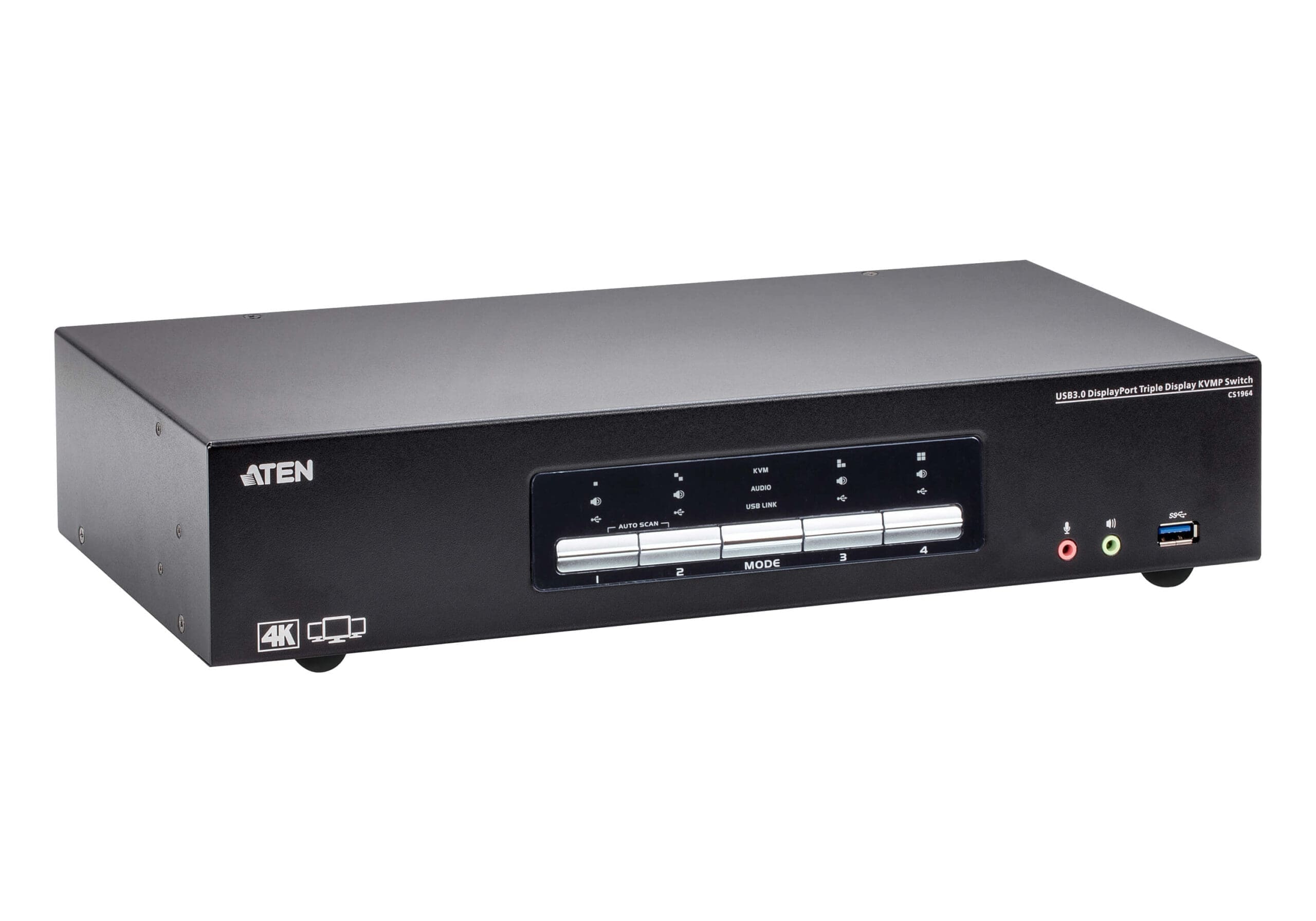

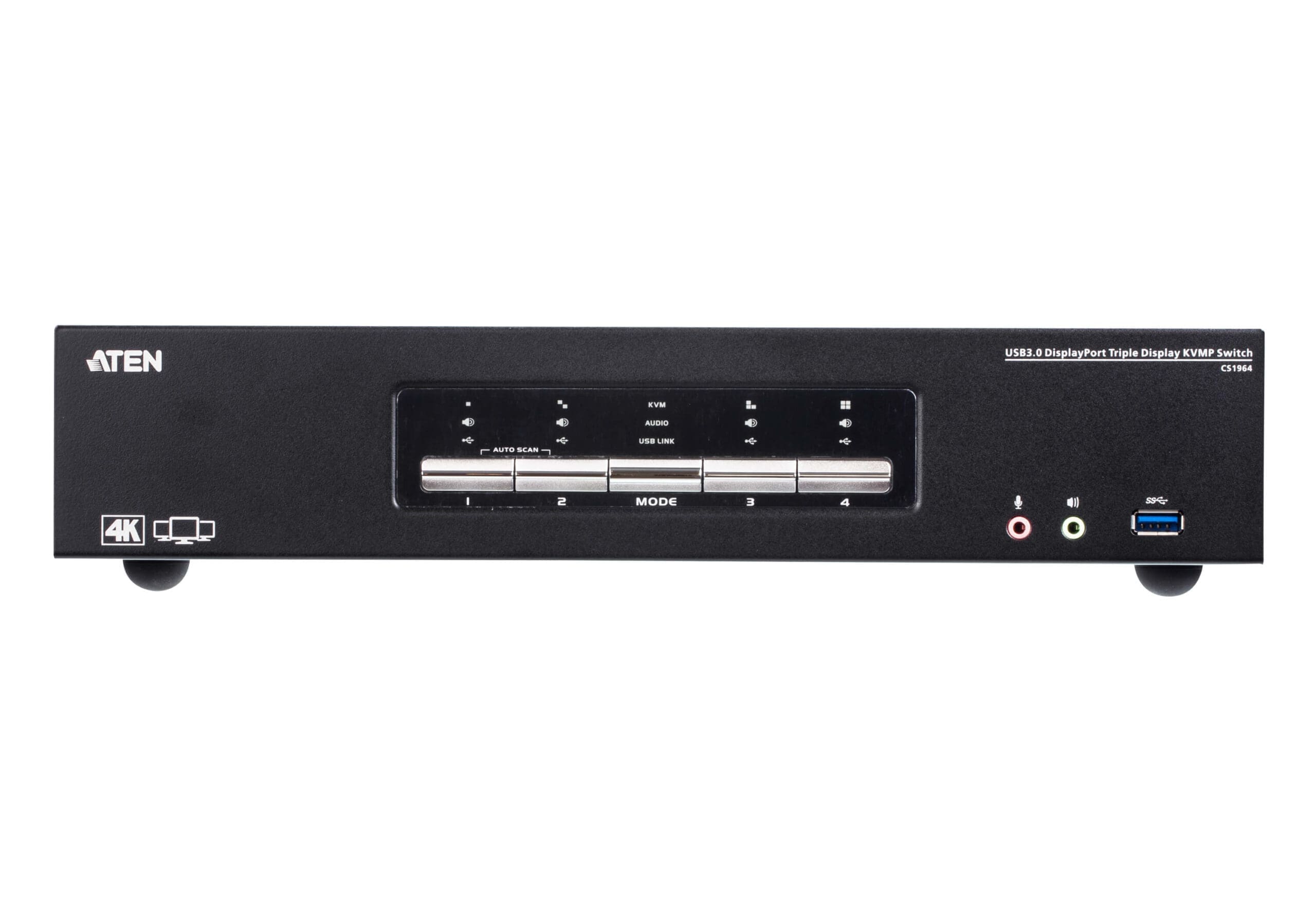

1x 4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch
6x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
2x LIN5-0205-21DG Audio Cables
1x 0AD8-8012-33MG Power Adapter
1x LIN2-418K-E12G Power cable
1x User Instructions
Note: The included cable sets are for two computer port connection only. Optional cable sets (2L-7D02UDPX6) are available with a separate purchase for the remaining computer port connection.

Feature Feature Value
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort

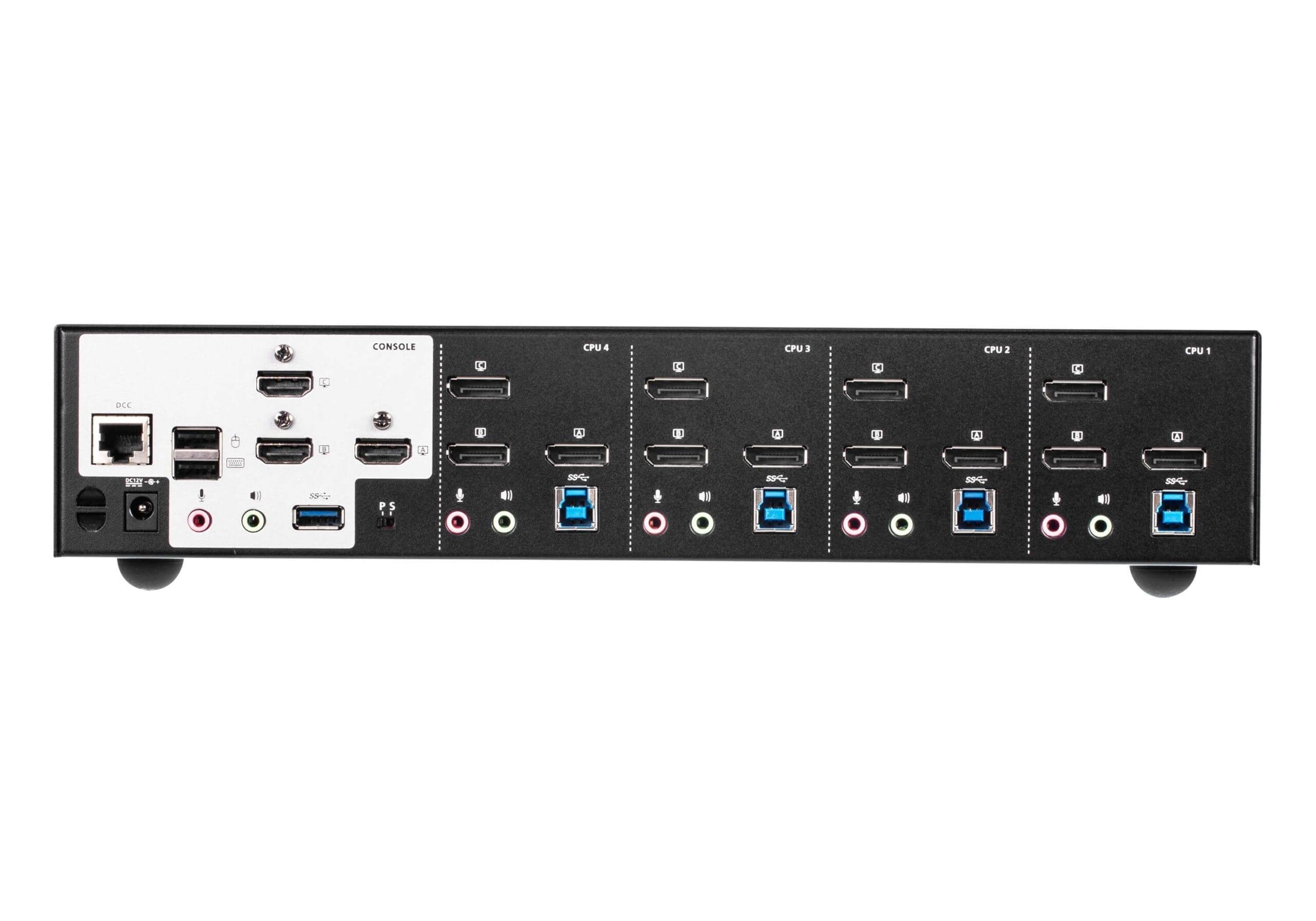

Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
DisplayPorts quantity 12
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 4
Console USB ports quantity 2
USB hub Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 6
Number of microphone inputs 6
DC-in jack Yes
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 60 Hz
Scan interval 1,5,99 s
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source DC
DC input voltage 12 V
Power consumption (typical) 15.49 W
Windows operating systems supported Yes
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 335 mm
Depth 156 mm
Height 65.5 mm
Weight 3.57 kg
Package width 131 mm
Package depth 540 mm
Package height 233 mm
Package weight 4.03 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 10.7 kg
Harmonized System (HS) code 85176200
Master (outer) case width 420 mm
Master (outer) case length 555 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 13 kg
Products per master (outer) case 3 pc(s)
