ATEN 8-Port 17″ LCD CAT5e/6 KVM Switch (Dual Rail)

Part No:

KL1508AM

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

8 port CAT5 1U Hideaway 17′ INCH’ LCD KVM Switch Daisy Chain Dual Rail

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: KL1508AM Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

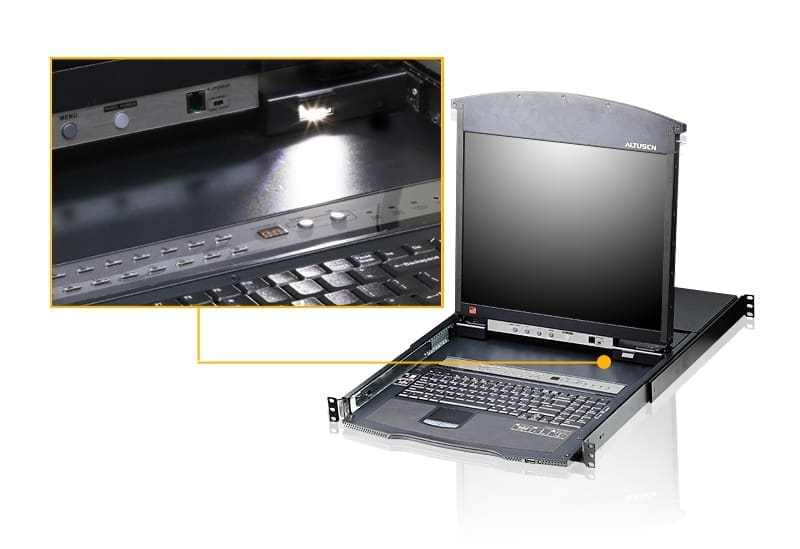

ALTUSEN KL1508A LCD KVM Switch features independently retractable, dual slide 17″ or 19″ LED-backlit LCD monitor and keyboard with built-in touchpad. The KL1508A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.
1 x KL1508A 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
1 x LIN5-04A2-J11G Firmware Upgrade Cable
1 x LIN2-418K-E12G Power Cord
2x L Brackets
1 x User Instructions

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports PS/2, USB A, VGA (D-Sub)
Console USB ports quantity 2
USB connector type USB Type-A
PS/2 ports quantity 2
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 8
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Video bandwidth 60 Hz
Scan interval 1,255 s
Rack mounting Yes
Product colour Black
Rack capacity 1U
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display Yes
Display LCD
Display diagonal 43.2 cm (17″)
On Screen Display (OSD) Yes
Power source AC
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Input current 1 A
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 480 mm
Depth 701.2 mm
Height 44 mm
Weight 15.5 kg
Package width 668 mm
Package depth 833 mm
Package height 135 mm
Package weight 18.7 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 15.5 kg
Harmonized System (HS) code 85176200
Master (outer) case width 668 mm
Master (outer) case length 833 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 18.7 kg
Products per master (outer) case 1 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

PS/2, USB A, VGA (D-Sub)
USB connector type

USB Type-A
Ethernet LAN

Yes
HD type

WUXGA
Video bandwidth

60 Hz
Rack mounting

Yes
Rack capacity

1U
LED indicators

Yes
Hot keys

Yes
Display

LCD
On Screen Display (OSD)

Yes
AC input voltage

100 – 240 V
Input current

1 A
Storage temperature (T-T)

-20 – 60 °C
Depth

701.2 mm
Weight

15.5 kg
Package depth

833 mm
Package weight

18.7 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

833 mm
Keyboard port type

USB, PS/2
Video port type

VGA
Console USB ports quantity

2
PS/2 ports quantity

2
Ethernet LAN (RJ-45) ports

8
Maximum resolution

1920 x 1200 pixels
Scan interval

1,255 s
Product colour

Black
Housing material

Metal
Push button

Yes
Built-in display

Yes
Display diagonal

43.2 cm (17")
Power source

AC
AC input frequency

50/60 Hz
Operating temperature (T-T)

0 – 40 °C
Width

480 mm
Height

44 mm
Package width

668 mm
Package height

135 mm
Quick installation guide

Yes
Master (outer) case width

668 mm
Master (outer) case height

135 mm

Brand

Aten
