ATEN 8-Port 17″ LCD KVM Switch (USB – PS/2 VGA) with USB Peripheral
Lock Added: N/A
8 port Combo(PS/2 & USB) 1U Slideway 17′ INCH’ LCD KVMP Switch Daisy Chain
Related products
Description

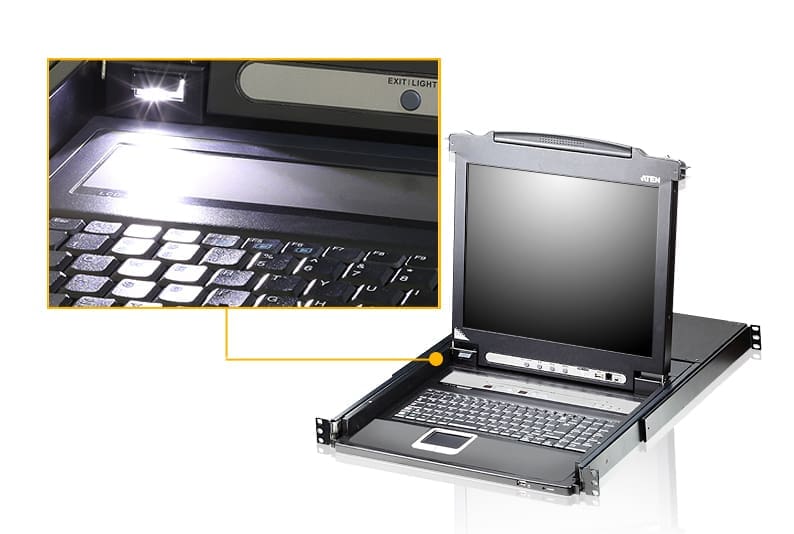

The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
1x CL5708 LCD KVM Switch with standard Rack Mount Kit
2x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord (AC Power Models)
1x User Instructions
| Feature | Feature Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | VGA (D-Sub) |
| USB connector type | USB Type-A |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Hot-swap | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 43.2 cm (17″) |
| On Screen Display (OSD) | Yes |
| Power source | AC |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 642.7 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 13.7 kg |
| Package width | 668 mm |
| Package depth | 718 mm |
| Package height | 135 mm |
| Package weight | 16.8 kg |
| Quick installation guide | Yes |
| Manual | Yes |
| Master (outer) case net weight | 13.7 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 668 mm |
| Master (outer) case length | 718 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 16.8 kg |
| Products per master (outer) case | 1 pc(s) |
Additional information
| Mouse port type | USB |
|---|---|
| Console ports | VGA (D-Sub) |
| HD type | WUXGA |
| Scan interval | 1,255 s |
| Hot-swap | Yes |
| Product colour | Black |
| Housing material | Metal, Plastic |
| Built-in display | Yes |
| Display diagonal | 43.2 cm (17") |
| Power source | AC |
| AC input frequency | 50/60 Hz |
| Operating temperature (T-T) | 0 – 40 °C |
| Depth | 480 mm |
| Weight | 13.7 kg |
| Package depth | 718 mm |
| Package weight | 16.8 kg |
| Manual | Yes |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case length | 718 mm |
| Keyboard port type | USB |
| Video port type | VGA |
| USB connector type | USB Type-A |
| Maximum resolution | 1920 x 1200 pixels |
| DDC2B support | Yes |
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Yes |
| Display | LCD |
| On Screen Display (OSD) | Yes |
| AC input voltage | 100 – 240 V |
| Storage temperature (T-T) | -20 – 60 °C |
| Width | 642.7 mm |
| Height | 44 mm |
| Package width | 668 mm |
| Package height | 135 mm |
| Quick installation guide | Yes |
| Master (outer) case width | 668 mm |
| Master (outer) case height | 135 mm |
