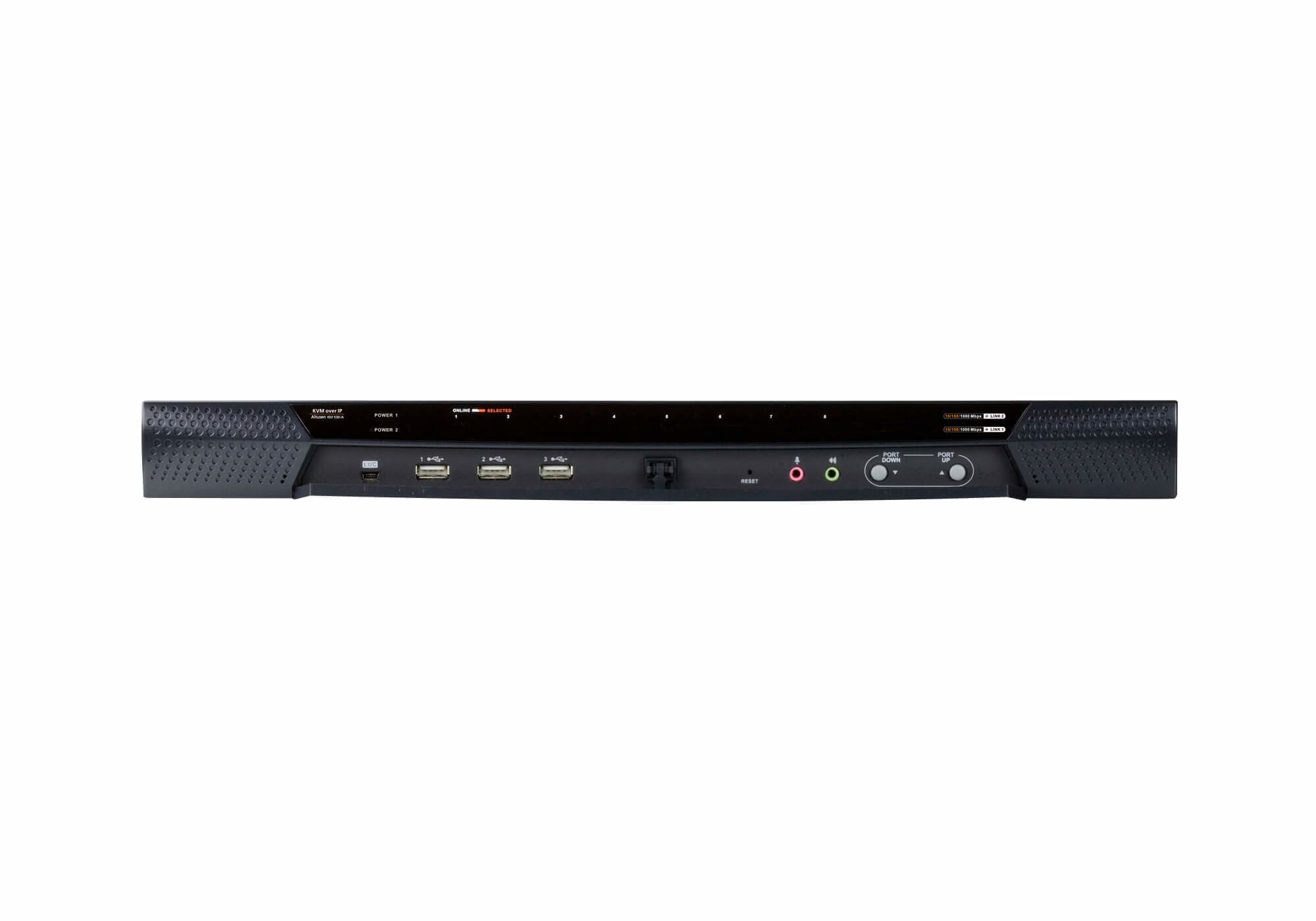

ATEN 8-Port 2-Bus CAT5e/6 KVM Over IP Switch, LUC (Laptop USB Console), with Audio & Virtual Media Support

Part No:

KN1108VA

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

1 User 8 Port CAT5 IP VM

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: KN1108VA Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

Aten’s new generation of KVM over IP switches – KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
1x KN1108VA KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x LIN2-418K-E12G Power Cords
1x LIN6-04U1-M18G Laptop USB Console Cable
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports USB A
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 3
USB connector type Mini-USB B, USB Type-A
PS/2 ports quantity 2
Serial port type RJ-45
Serial ports quantity 2
Audio connections Yes
Headphone outputs 1
Number of microphone inputs 1
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 14
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security algorithms 802.1x RADIUS, FIPS 140-2, RSA, SSL/TLS
Maximum resolution 1920 x 1200 pixels
Scan interval 1,255 s
Number of users 64 user(s)
Firmware upgradeable Yes
Rack mounting No
Product colour Black
Rack capacity 1U
Housing material Metal
Wired remote switch Yes
Cascadable Yes
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source AC
AC input voltage 100 – 240 V
AC input frequency 50 / 60 Hz
Input current 1 A
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Sustainability certificates RoHS
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 438.4 mm
Depth 287.8 mm
Height 44 mm
Weight 4.37 kg
Package width 338 mm
Package depth 515 mm
Package height 155 mm
Package weight 5.58 kg
Cables included AC
Manual Yes
Rack mount kit Yes
Master (outer) case net weight 4.37 kg
Harmonized System (HS) code 85176200
Master (outer) case width 338 mm
Master (outer) case length 515 mm
Master (outer) case height 155 mm
Master (outer) case gross weight 5.58 kg
Products per master (outer) case 1 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

USB A
USB hub

Yes
USB connector type

Mini-USB B, USB Type-A
Serial port type

RJ-45
Audio connections

Yes
Number of microphone inputs

1
Ethernet LAN (RJ-45) ports

14
Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Maximum resolution

1920 x 1200 pixels
Number of users

64 user(s)
Rack mounting

No
Rack capacity

1U
Wired remote switch

Yes
LED indicators

Yes
Hot keys

Yes
Power source

AC
AC input frequency

50/60 Hz
Operating temperature (T-T)

0 – 50 °C
Depth

287.8 mm
Weight

4.37 kg
Package depth

515 mm
Package weight

5.58 kg
Manual

Yes
Master (outer) case width

338 mm
Master (outer) case height

155 mm
Keyboard port type

USB, PS/2
Video port type

VGA
Console USB ports quantity

2
PS/2 ports quantity

2
Serial ports quantity

2
Headphone outputs

1
Ethernet LAN

Yes
Cabling technology

10/100/1000Base-T(X)
Security algorithms

802.1x RADIUS, FIPS 140-2, RSA, SSL/TLS
Scan interval

1,255 s
Firmware upgradeable

Yes
Product colour

Black
Housing material

Metal
Cascadable

Yes
Push button

Yes
Built-in display

No
AC input voltage

100 – 240 V
Input current

1 A
Sustainability certificates

RoHS
Storage temperature (T-T)

-20 – 60 °C
Width

438.4 mm
Height

44 mm
Package width

338 mm
Package height

155 mm
Cables included

AC
Rack mount kit

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

515 mm

Brand

Aten
