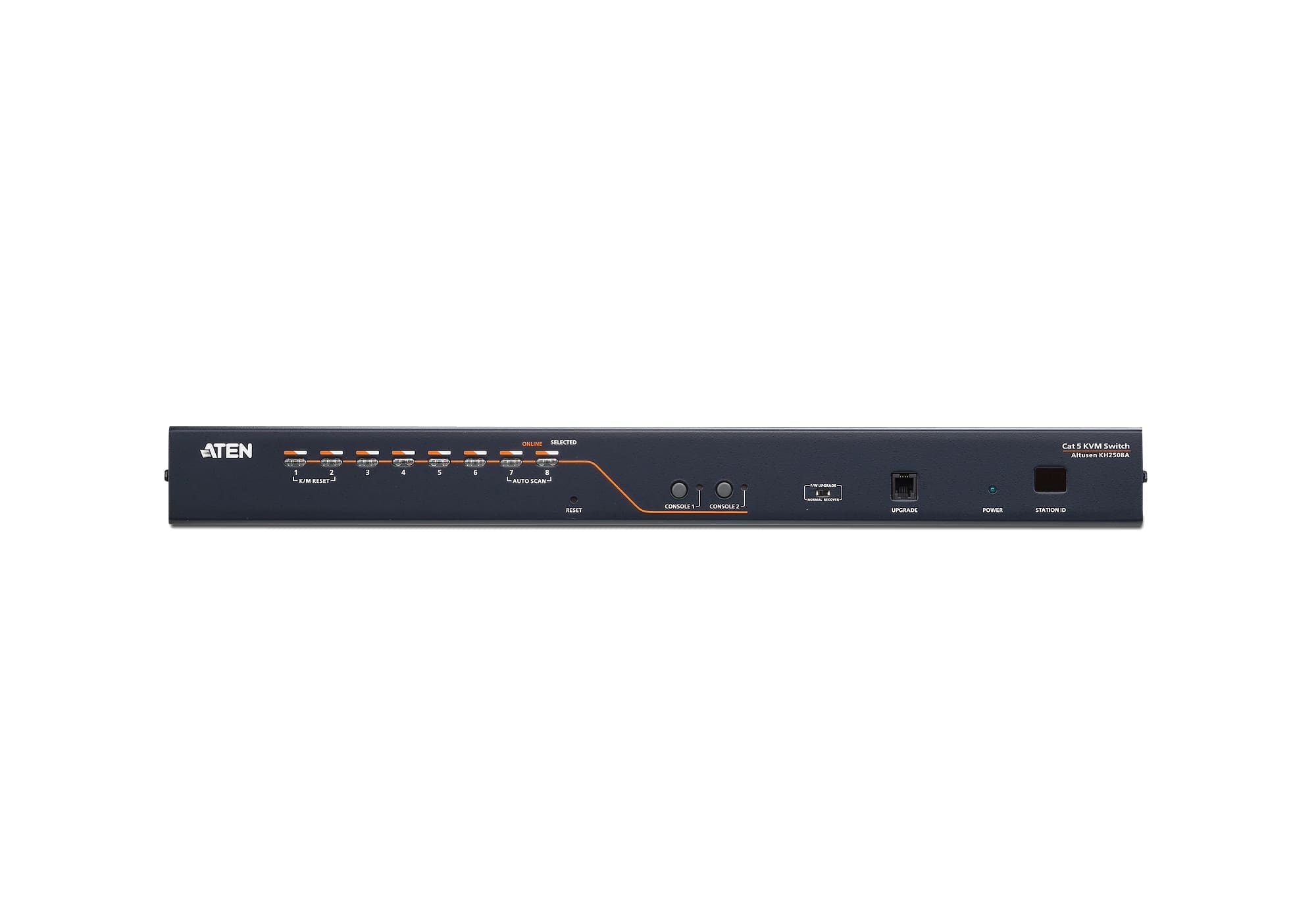

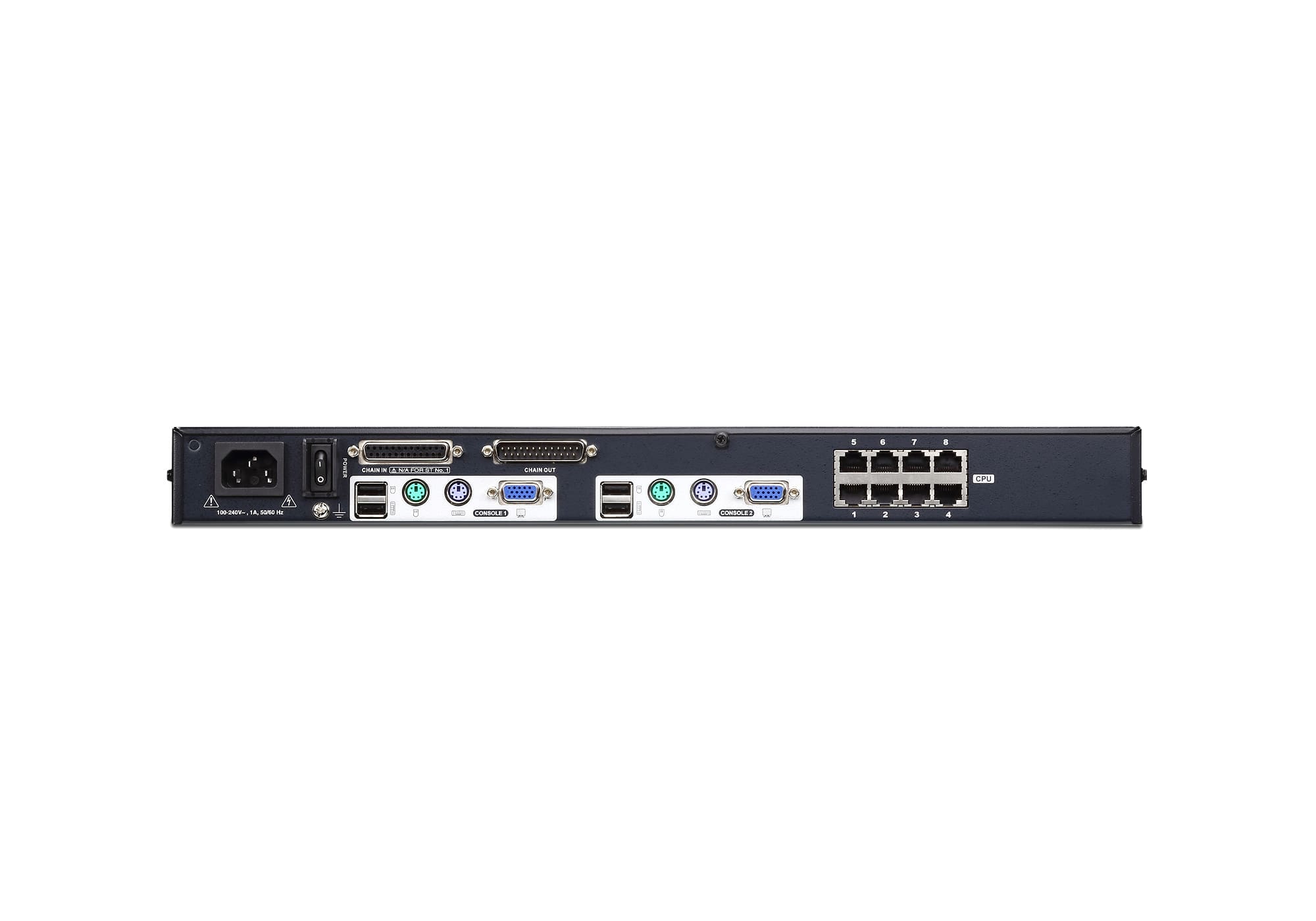

ATEN 8-Port 2-console Cat 5e/6 KVM Switch

Part No:

KH2508A

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

8-Port Cat 5 High Density KVM Switch

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: KH2508A Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The KH2508A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (two bus). Operators working at up to two consoles can independently and simultaneously take control of up to 8 computers. By daisy chaining up to 15 additional switches, as many as 128 computers can be controlled from the original KVM consoles.
1x KH2508A Cat 5 High-Density KVM Switch
1x Firmware LINS04A2-J11G Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports PS/2, USB A, VGA (D-Sub)
Console USB ports quantity 4
USB connector type USB Type-A
PS/2 ports quantity 4
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 8
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Video bandwidth 60 Hz
Scan interval 1,255 s
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source AC
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Input current 1 A
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 437.2 mm
Depth 155.8 mm
Height 44 mm
Weight 3.16 kg
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 3.73 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 9.48 kg
Harmonized System (HS) code 85176200
Master (outer) case width 420 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 12.5 kg
Products per master (outer) case 3 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

PS/2, USB A, VGA (D-Sub)
USB connector type

USB Type-A
Ethernet LAN

Yes
HD type

WUXGA
Video bandwidth

60 Hz
Product colour

Black
LED indicators

Yes
Hot keys

Yes
Power source

AC
AC input frequency

50/60 Hz
Operating temperature (T-T)

0 – 50 °C
Width

437.2 mm
Height

44 mm
Package width

116 mm
Package height

233 mm
Quick installation guide

Yes
Master (outer) case width

420 mm
Master (outer) case height

258 mm
Keyboard port type

USB, PS/2
Video port type

VGA
Console USB ports quantity

4
PS/2 ports quantity

4
Ethernet LAN (RJ-45) ports

8
Maximum resolution

1920 x 1200 pixels
Scan interval

1,255 s
Housing material

Metal
Push button

Yes
Built-in display

No
AC input voltage

100 – 240 V
Input current

1 A
Storage temperature (T-T)

-20 – 60 °C
Depth

155.8 mm
Weight

3.16 kg
Package depth

540 mm
Package weight

3.73 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

565 mm

Brand

Aten
