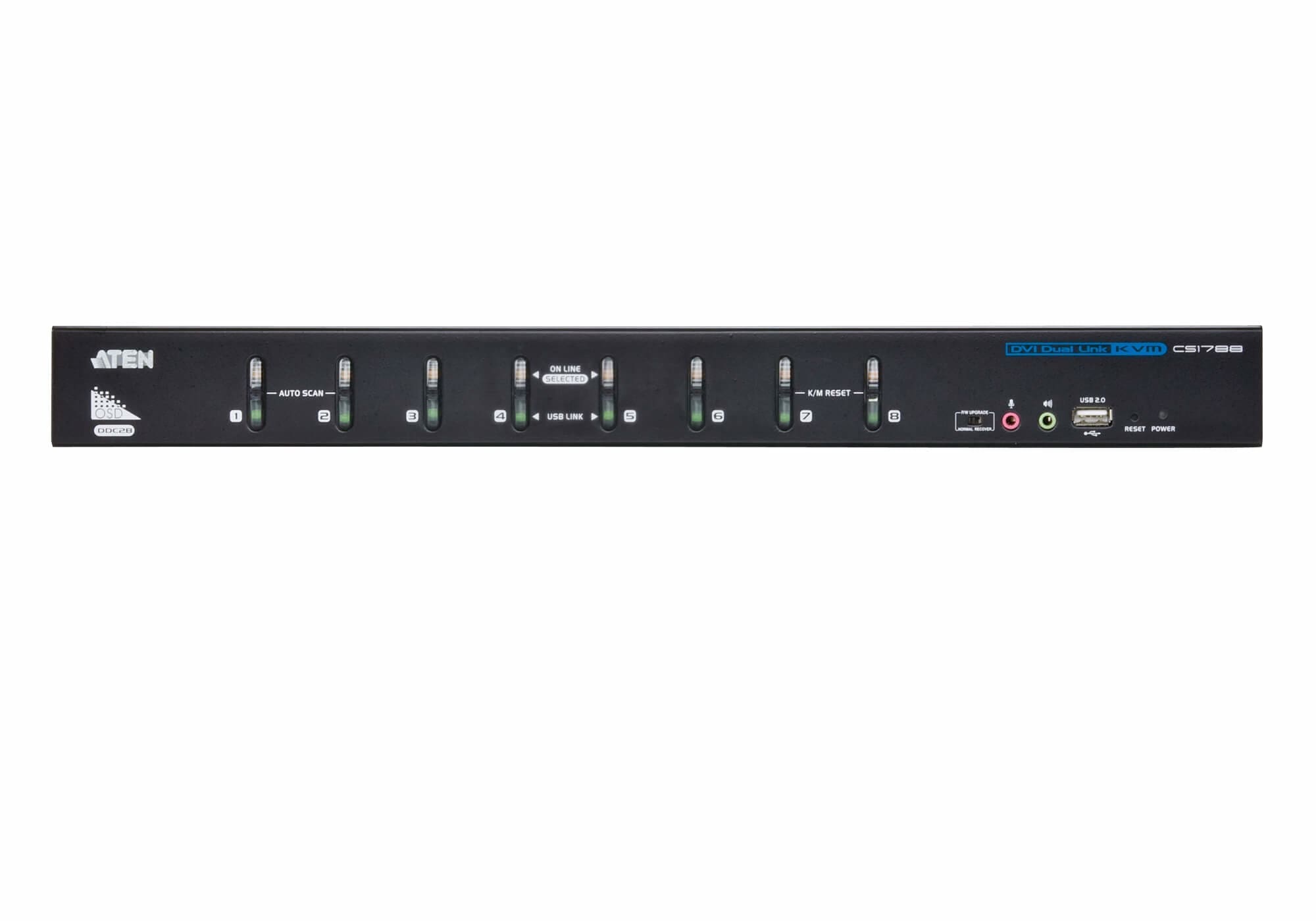

ATEN 8-Port USB DVI Dual Link KVM Switch with Audio

Part No:

CS1788

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

8-Port USB DVI Dual-Link KVM Switch Audio

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS1788 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.

It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.

In addition, the CS1788 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02UD USB DVI-D Dual Link KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-8605-40MG Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type DVI-I
Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
DVI-I ports quantity 8
USB 2.0 Type-B ports quantity 8
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 10
Number of microphone inputs 10
DC-in jack Yes
HD type WQXGA
Maximum resolution 2560 x 1600 pixels
Video bandwidth 60 Hz
Scan interval 1,5,255 s
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Built-in display No
Power source DC
DC input voltage 5.3 V
Power consumption (typical) 8.26 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 437.2 mm
Depth 161.2 mm
Height 44 mm
Weight 3.96 kg
Package width 131 mm
Package depth 540 mm
Package height 233 mm
Package weight 4.48 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 11.9 kg
Harmonized System (HS) code 85176200
Master (outer) case width 420 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 14.2 kg
Products per master (outer) case 3 pc(s)

Additional information

Mouse port type

USB
Console ports

3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
USB hub

Yes
USB connector type

USB Type-A, USB Type-B
Headphone outputs

10
DC-in jack

Yes
Maximum resolution

2560 x 1600 pixels
Scan interval

1,5,255 s
Housing material

Metal
Push button

Yes
Power source

DC
Power consumption (typical)

8.26 W
Storage temperature (T-T)

-20 – 60 °C
Depth

161.2 mm
Weight

3.96 kg
Package depth

540 mm
Package weight

4.48 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

565 mm
Keyboard port type

USB
Video port type

DVI-I
DVI-I ports quantity

8
Console USB ports quantity

2
Audio connections

Yes
Number of microphone inputs

10
HD type

WQXGA+
Video bandwidth

60 Hz
Product colour

Black
LED indicators

Yes
Built-in display

No
DC input voltage

5.3 V
Operating temperature (T-T)

0 – 50 °C
Width

437.2 mm
Height

44 mm
Package width

131 mm
Package height

233 mm
Quick installation guide

Yes
Master (outer) case width

420 mm
Master (outer) case height

258 mm

Brand

Aten
