ATEN 8-Port USB DVI KVM Switch with Audio

Part No:

CS1768

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

8-Port USB DVI KVM Switch

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CS1768 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

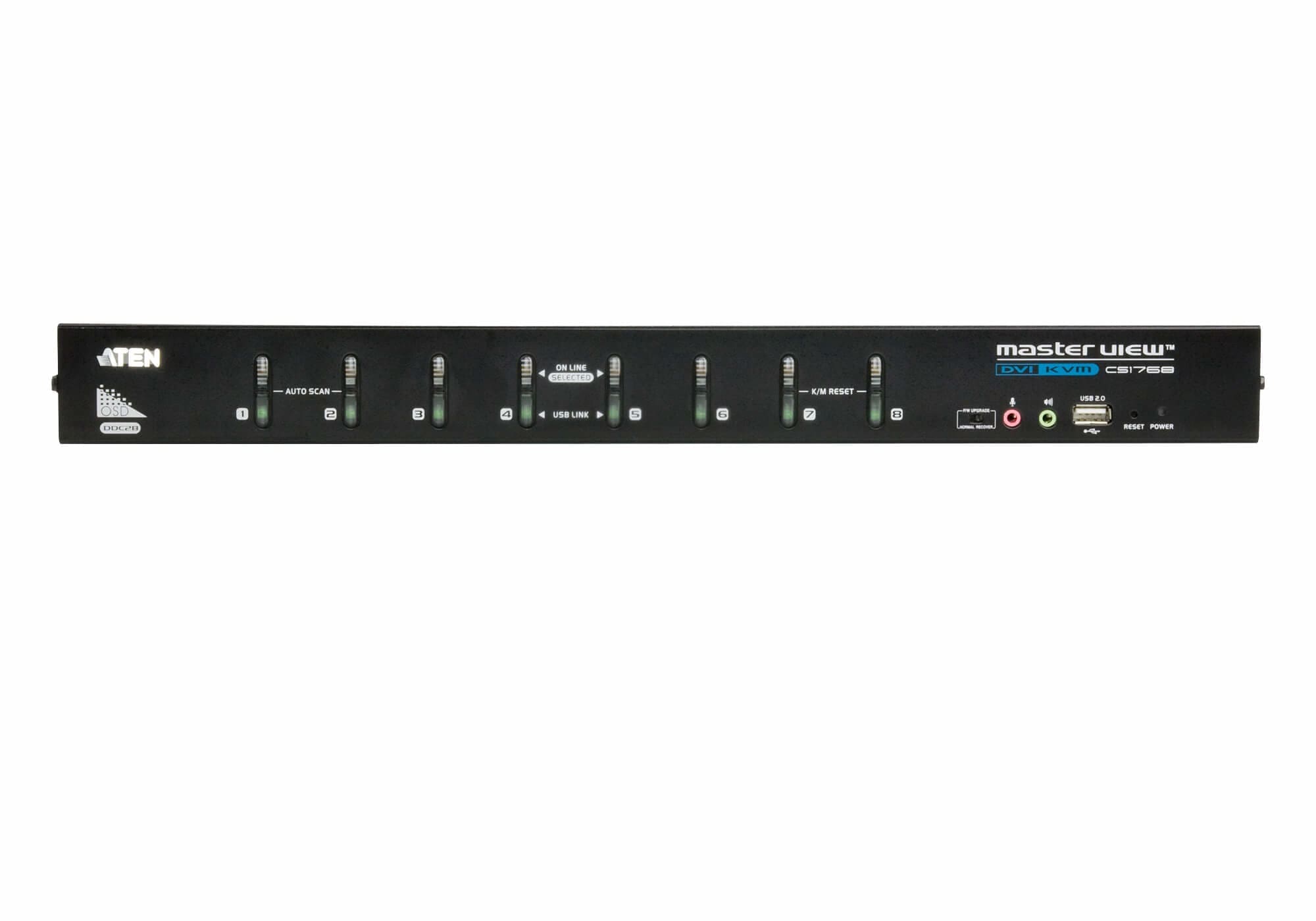

The CS1768 8-port USB DVI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.

It can be cascaded to three levels – allowing up to 73 CS1768s to control up to 512 computers – all from the original single console, making it ideal for industry-grade IT applications and management.
1x CS1768 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02U USB DVI-D KVM Cable Sets
1x Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type DVI-I

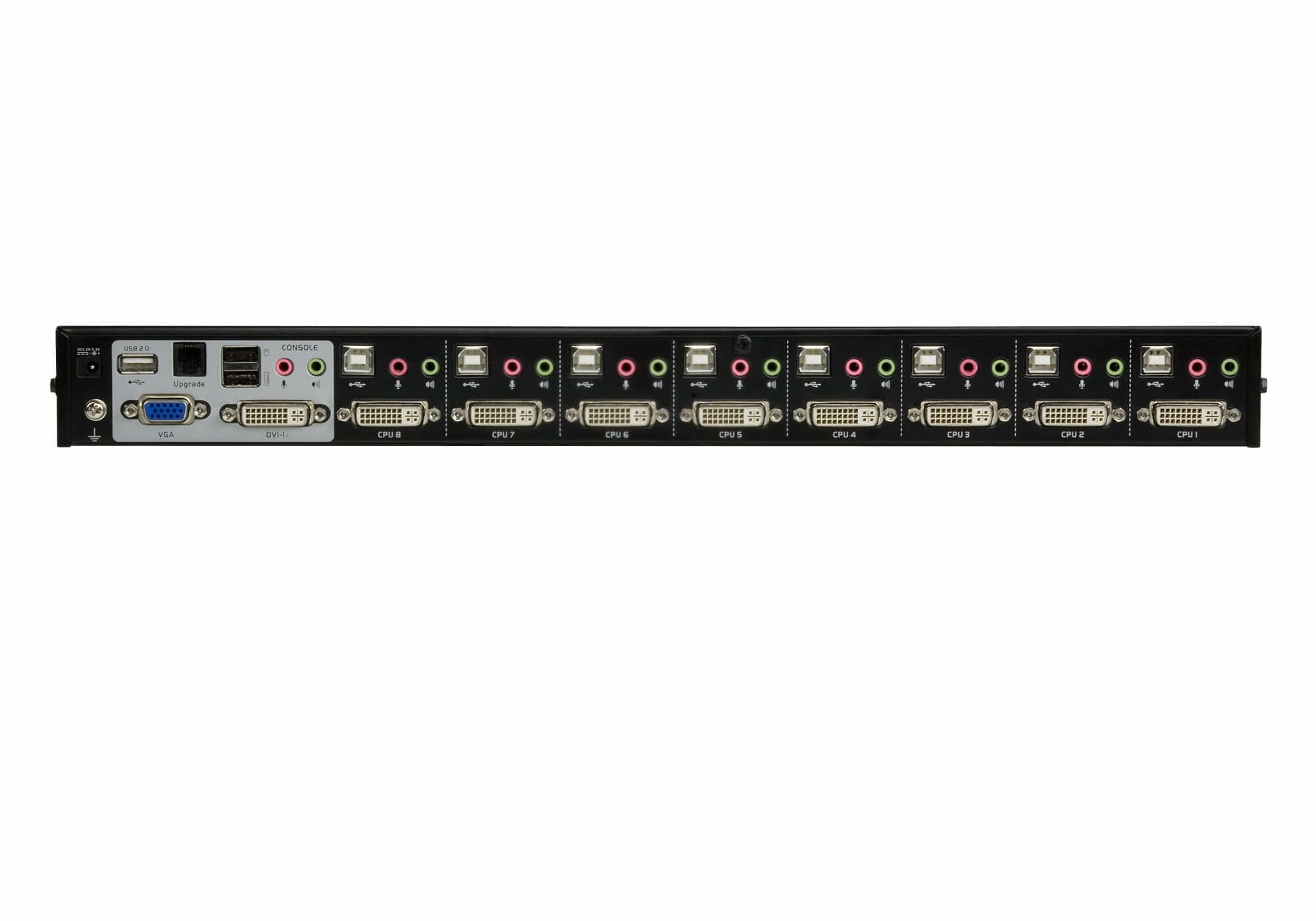

Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
DVI-I ports quantity 8
USB 2.0 Type-B ports quantity 8
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 10
Number of microphone inputs 10
DC-in jack Yes
HD type QXGA
Maximum resolution 2048 x 1536 pixels
Video bandwidth 60 Hz
Scan interval 1,5,255 s
DDC2B support Yes
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Power source DC
DC input voltage 5.3 V
Power consumption (typical) 4.53 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 437.2 mm
Depth 161.2 mm
Height 44 mm
Weight 3.61 kg
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 4.07 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 10.8 kg
Harmonized System (HS) code 85176200
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 13.6 kg
Products per master (outer) case 3 pc(s)

Additional information

Mouse port type

USB
Console ports

3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
USB hub

Yes
USB connector type

USB Type-A, USB Type-B
Headphone outputs

10
DC-in jack

Yes
Maximum resolution

2048 x 1536 pixels
Scan interval

1,5,255 s
Product colour

Black
LED indicators

Yes
Hot keys

Yes
Power source

DC
Power consumption (typical)

4.53 W
Storage temperature (T-T)

-20 – 60 °C
Depth

161.2 mm
Weight

3.61 kg
Package depth

540 mm
Package weight

4.07 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

565 mm
Keyboard port type

USB
Video port type

DVI-I
DVI-I ports quantity

8
Console USB ports quantity

2
Audio connections

Yes
Number of microphone inputs

10
HD type

QXGA
Video bandwidth

60 Hz
DDC2B support

Yes
Housing material

Metal
Push button

Yes
Built-in display

No
DC input voltage

5.3 V
Operating temperature (T-T)

0 – 50 °C
Width

437.2 mm
Height

44 mm
Package width

116 mm
Package height

233 mm
Quick installation guide

Yes
Master (outer) case width

375 mm
Master (outer) case height

258 mm

Brand

Aten
