ATEN 8-Port USB – HDMI KVM Switch with USB Peripheral port

Part No:

CS1798

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£401.63
£481.96
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Last few available! Order now: Only 3 left!

8 port HDMI KVM switch

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: CS1798 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

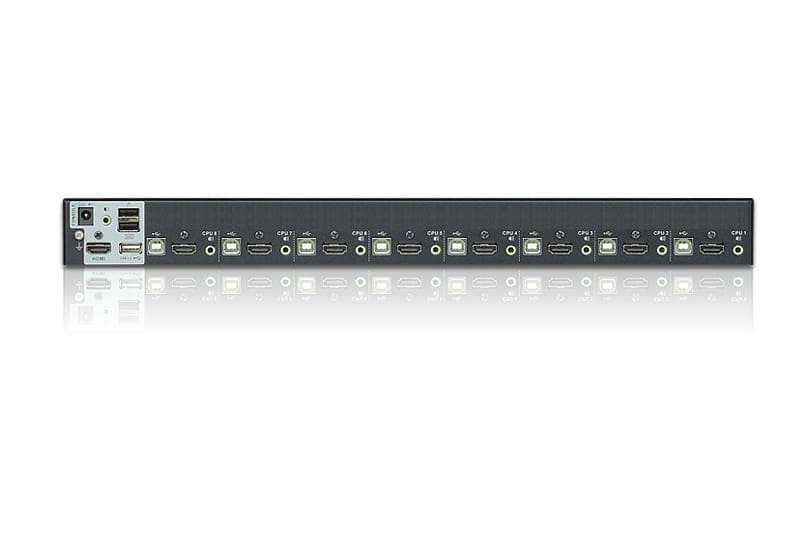

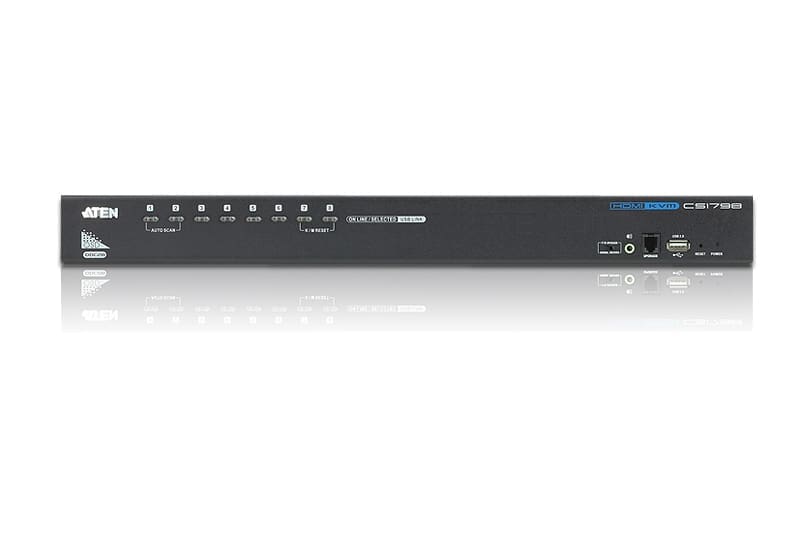

The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
1x CS1798 8-Port USB HDMI KVM Switch
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
&x Rackmounting Kit
1x User Instructions

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type HDMI
Console ports 3.5mm headphone, 3.5mm mic, HDMI, USB A
HDMI ports quantity 8
USB 2.0 Type-B ports quantity 8
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 9
Number of microphone inputs 1
DC-in jack Yes
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Video bandwidth 60 Hz
Scan interval 1,5,255 s
Product colour Black
Housing material Metal
LED indicators Yes
Built-in display No
Power source DC
DC input voltage 5 V
Power consumption (typical) 8.56 W
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 432.4 mm
Depth 257.2 mm
Height 440 mm
Weight 4.63 kg
Package width 133 mm
Package depth 499 mm
Package height 324 mm
Package weight 5.22 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 13.9 kg
Harmonized System (HS) code 85176200
Master (outer) case width 427 mm
Master (outer) case length 519 mm
Master (outer) case height 348 mm
Master (outer) case gross weight 16.7 kg
Products per master (outer) case 3 pc(s)

Additional information

Mouse port type

USB
Console ports

3.5mm headphone, 3.5mm mic, HDMI, USB A
USB hub

Yes
USB connector type

USB Type-A, USB Type-B
Headphone outputs

9
DC-in jack

Yes
Maximum resolution

1920 x 1200 pixels
Scan interval

1,5,255 s
Housing material

Metal
Built-in display

No
DC input voltage

5 V
Storage temperature (T-T)

-20 – 60 °C
Depth

257.2 mm
Weight

4.63 kg
Package depth

499 mm
Package weight

5.22 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

519 mm
Keyboard port type

USB
Video port type

HDMI
HDMI ports quantity

8
Console USB ports quantity

2
Audio connections

Yes
Number of microphone inputs

1
HD type

WUXGA
Video bandwidth

60 Hz
Product colour

Black
LED indicators

Yes
Power source

DC
Power consumption (typical)

8.56 W
Operating temperature (T-T)

0 – 50 °C
Width

432.4 mm
Height

440 mm
Package width

133 mm
Package height

324 mm
Quick installation guide

Yes
Master (outer) case width

427 mm
Master (outer) case height

348 mm

Brand

Aten
