Description

Features
– Integrated KVM console with 17″ LCD monitor in a Slideaway™ housing
– Available with or without Fingerprint Identification Reader**

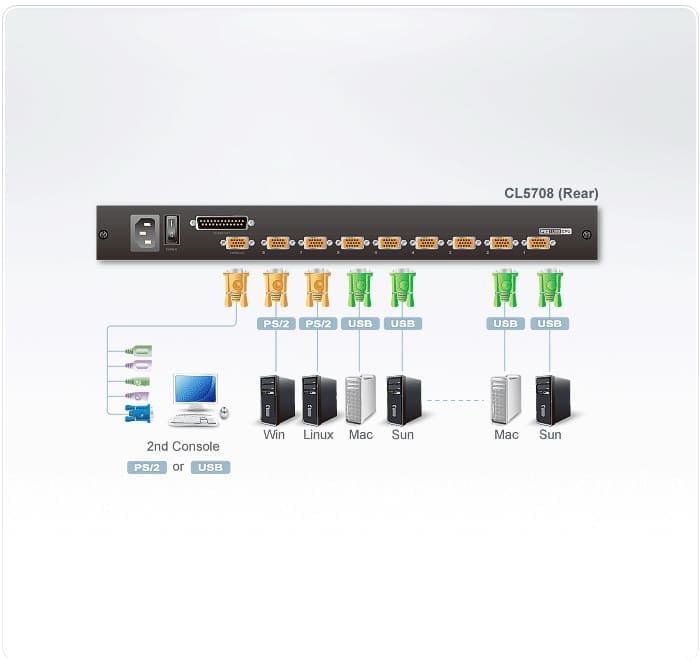

– Space saving technology – up to two consoles (one bus) control up to 8 computers
– Daisy-chain up to 31 additional units – control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
– Dual Interface – supports computers and console with PS/2 or USB keyboards and mice
– LCD module USB port allows each computer to access USB peripherals*
– LCD module rotates up to 115 degrees for a more comfortable viewing angle
– Multiplatform support – Windows, Linux, Mac, and Sun
– Supports multimedia USB keyboards for PC, Mac and Sun
– Auto PS/2 and USB interface detection
– Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
– Supports external USB mouse
– Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz
– No software required – convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
– Auto-senses station’s position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station’s position
– Port names automatically reconfigured when station sequence is changed
– Two level password security – only authorized users can view and control computers
– Supports one administrator and four user accounts with separate profiles
– Auto Scan mode enables continuous monitoring of user-selected computers
– Broadcast support – commands from the keyboard can be broadcast to all available computers on the installation
– Hot pluggable – add or remove computers without having to power down the switch
– Beeper on/off via hotkey and OSD
– Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable

Package Contents
– 1x CL5708 LCD KVM Switch with standard Rack Mount Kit
– 2x Custom KVM Cable Sets
– 1x 5-in-1 USB / PS/2 Console Cable
– 1x Firmware Upgrade Cable
– 1x Power Cord (AC Power Models)
– 1x User Instructions
