Description
The CL5716 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

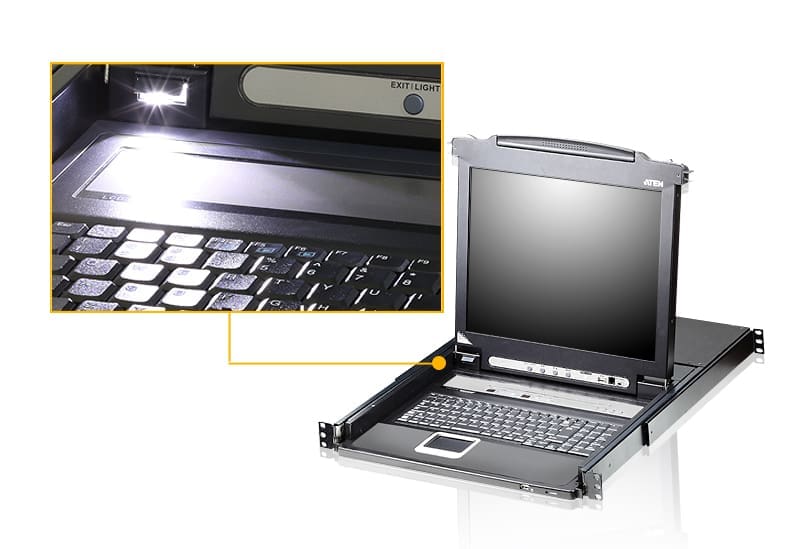

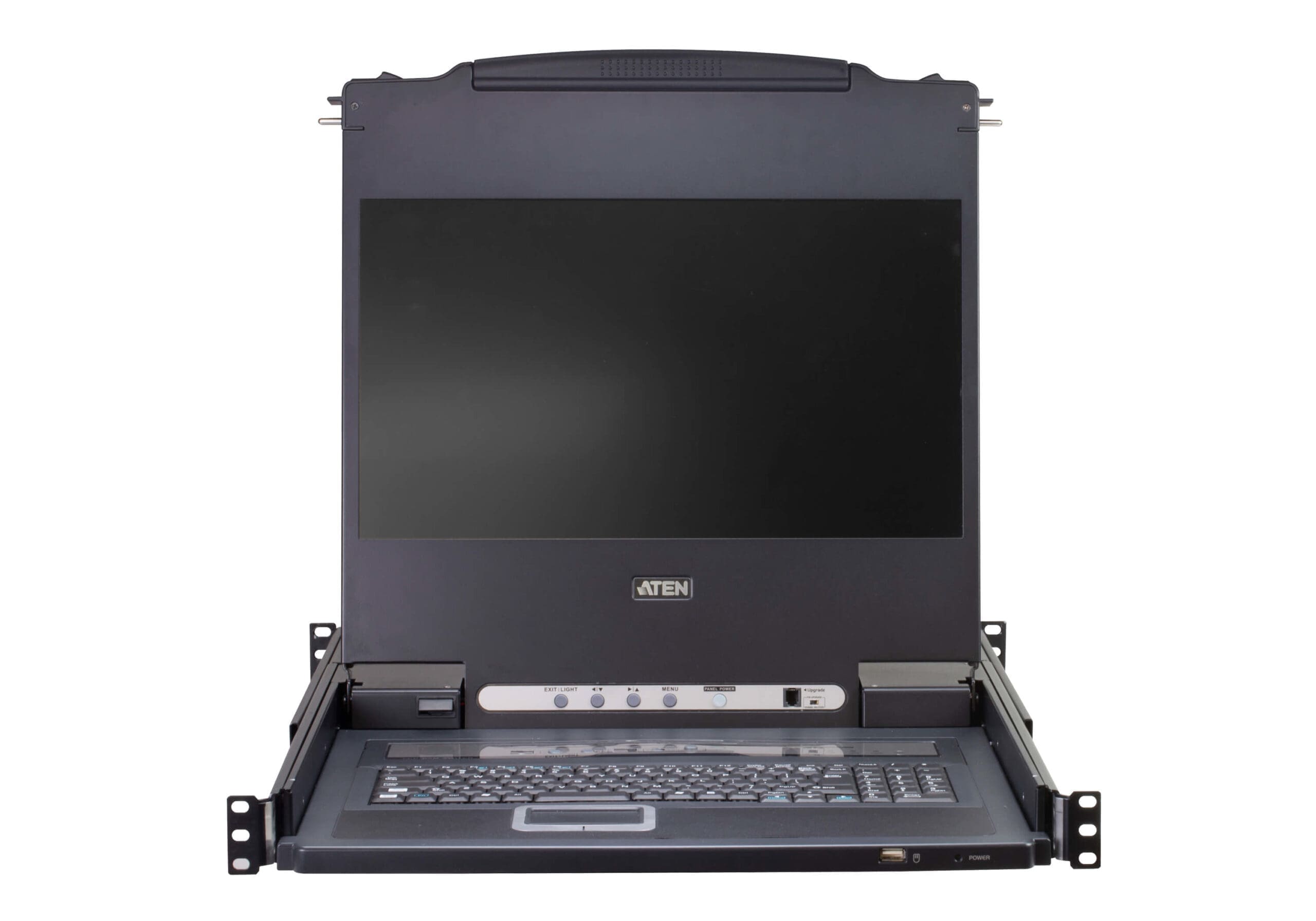

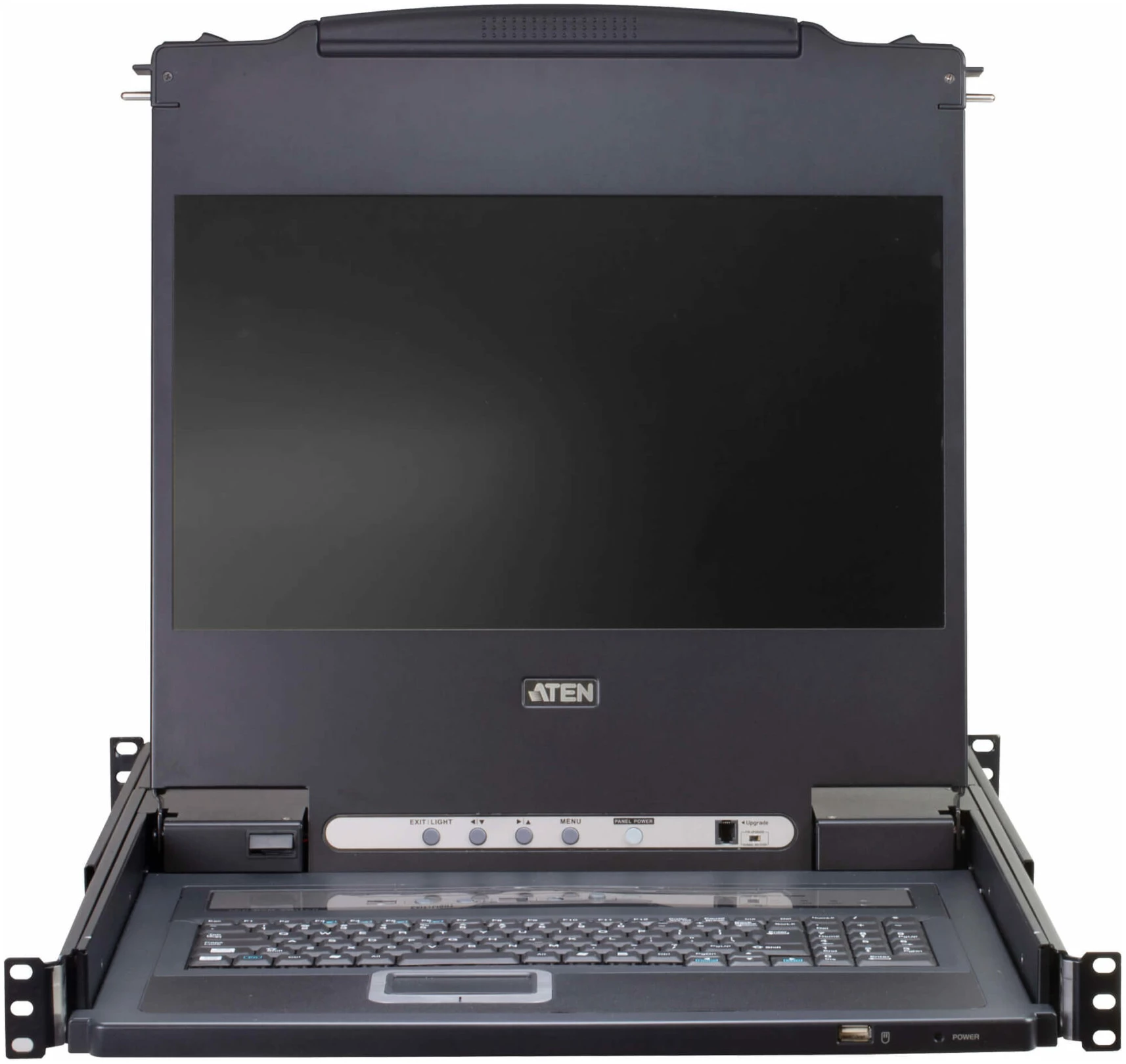

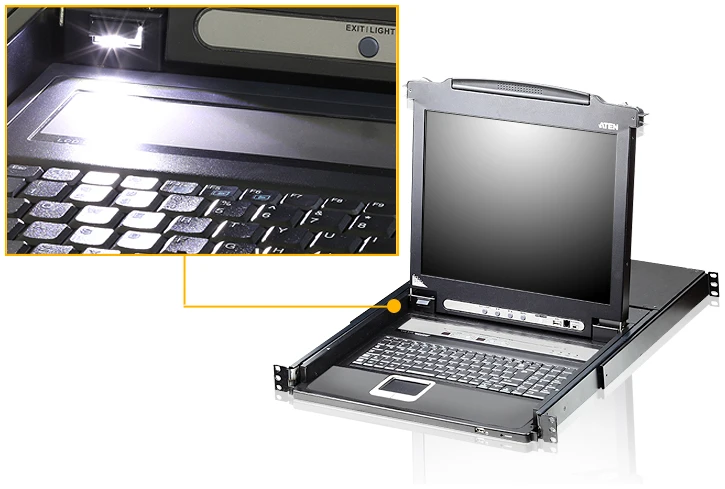

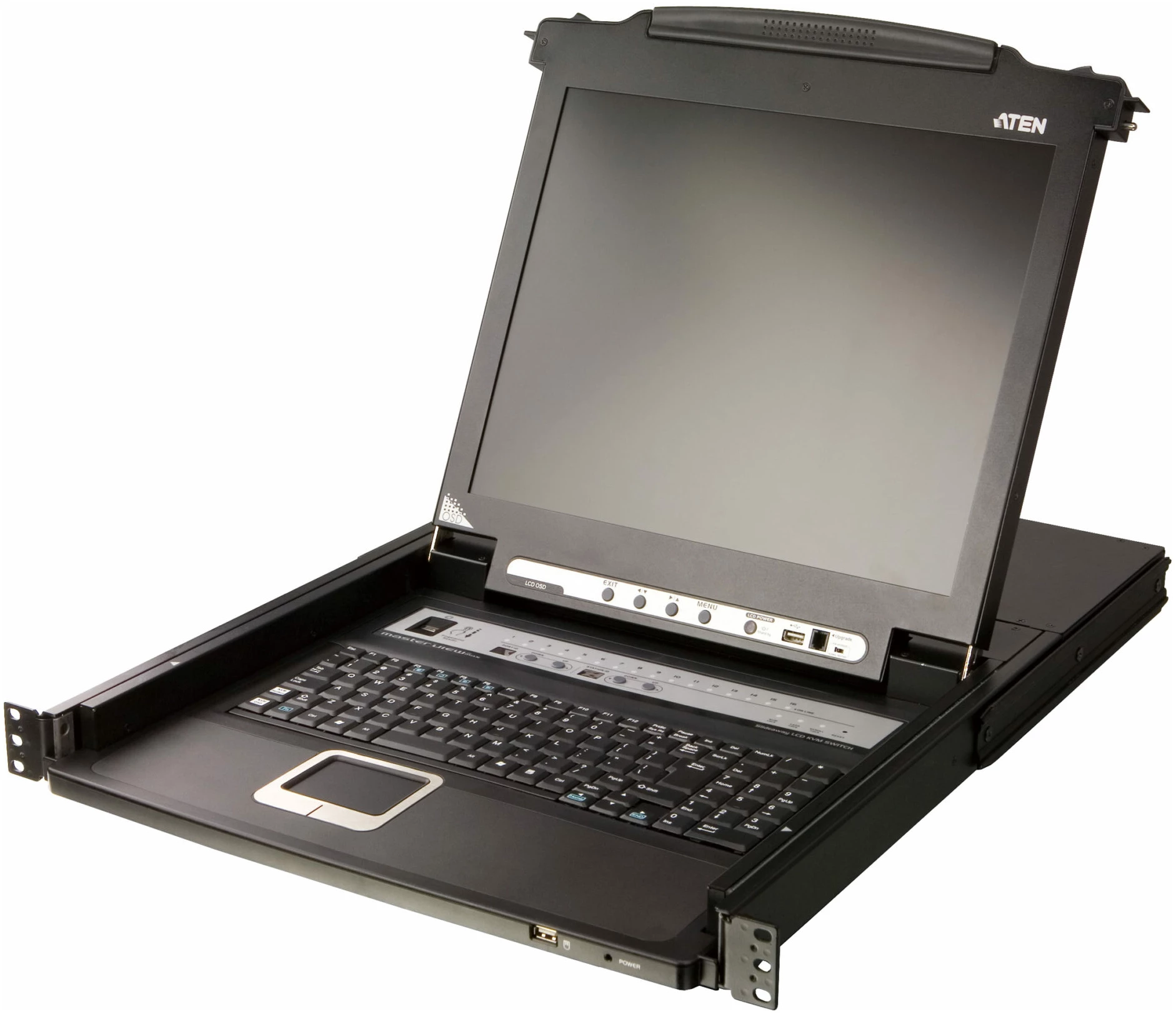

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17″, 17.3″ or 19″ LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5716 offers the option to use a fingerprint identification system for controlling access to both the CL5716 itself and the servers it commands.
The CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.
| Feature |
Feature Value |
| Number of computers controlled |
512 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| Console ports |
VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
16 |
| RJ-11 ports quantity |
1 |
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
1,255 s |
| DDC2B support |
Yes |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Daisy chain |
Yes |
| Firmware upgradeable |
Yes |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Metal, Plastic |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Built-in display |
Yes |
| Display |
LCD |
| Display diagonal |
43.9 cm (17.3″) |
| On Screen Display (OSD) |
Yes |
| Power source |
AC |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
1 A |
| Power consumption (typical) |
15.6 W |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 85% |
| Width |
689.2 mm |
| Depth |
480 mm |
| Height |
44 mm |
| Weight |
13.7 kg |
| Package width |
668 mm |
| Package depth |
833 mm |
| Package height |
135 mm |
| Package weight |
16.2 kg |
| Cables included |
AC, KVM |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Rack mount kit |
Yes |
| Harmonized System (HS) code |
84718000 |
| Master (outer) case width |
668 mm |
| Master (outer) case length |
833 mm |
| Master (outer) case height |
135 mm |
| Master (outer) case gross weight |
16.2 kg |
| Country of origin |
China |
