Description
Features
– Integrated KVM console with 19″ LCD monitor in a Slideaway™ housing
– Available with or without Fingerprint Identification Reader**
– Space saving technology – up to two consoles (one bus) control up to 16 computers
– Daisy-chain up to 31 additional units – control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A)
– Dual Interface – supports computers and console with PS/2 or USB keyboards and mice
– LCD module USB port allows each computer to access USB peripherals*
– LCD module rotates up to 115 degrees for a more comfortable viewing angle
– Multiplatform support – Windows, Linux, Mac, and Sun
– Supports multimedia USB keyboards for PC, Mac and Sun
– Auto PS/2 and USB interface detection
– Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
– Supports external USB mouse
– Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz
– No software required – convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
– Auto-senses station’s position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station’s position
– Port names automatically reconfigured when station sequence is changed
– Two level password security – only authorized users can view and control computers
– Supports one administrator and four user accounts with separate profiles
– Auto Scan mode enables continuous monitoring of user-selected computers
– Broadcast support – commands from the keyboard can be broadcast to all available computers on the installation
– Hot pluggable – add or remove computers without having to power down the switch
– Beeper on/off via hotkey and OSD
– Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Package Contents

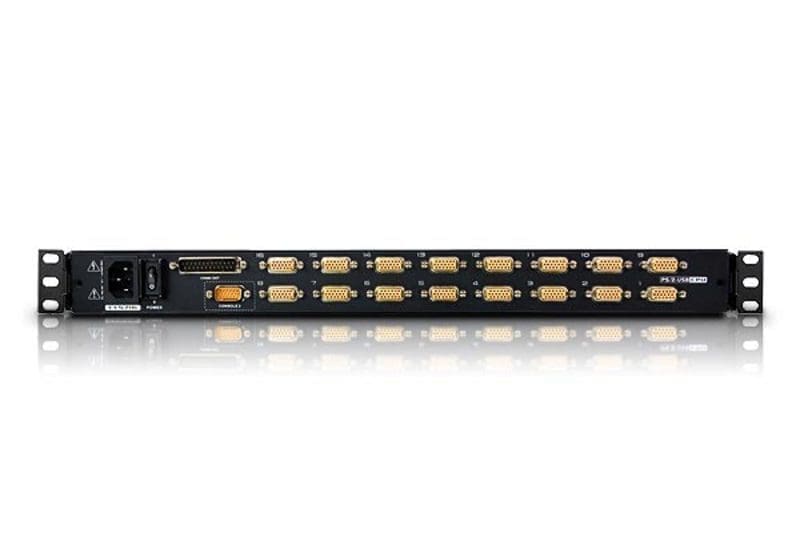

– 1x CL5716 LCD KVM Switch with standard Rack Mount Kit
– 2x Custom KVM Cable Sets
– 1x 5-in-1 USB / PS/2 Console Cable
– 1x Firmware Upgrade Cable
– 1x Power Cord (AC Power Models)
– 1x User Instructions
| Feature |
Feature Value |
| Number of computers controlled |
16 |
| Keyboard port type |
No |
| Mouse port type |
USB |
| USB 2.0 ports quantity |
2 |
| Console port |
RS-232 |
| DC-in jack |
Yes |
| Maximum resolution |
1280 x 1024 pixels |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Metal, Plastic |
| LED indicators |
Yes |
| Certification |
Windows 7
CN ZL 200610081929.7 (19), CN ZL 200710181531.5, TW I339467, TW I340311 (19), US 6564275, US 7505255 (19), US 7585176 |
| Built-in display |
Yes |
| Display |
LCD |
| AC input voltage |
100-240 V |
| AC input frequency |
50 – 60 Hz |
| Power consumption (typical) |
21.2 W |
| USB powered |
No |
| Sustainability certificates |
RoHS |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
480 mm |
| Depth |
634 mm |
| Height |
44 mm |
| Weight |
14.7 kg |
| Package dimensions (WxDxH) |
654 x 327.7 x 136.5 mm |
| Package weight |
15.4 kg |
| Cables included |
AC, KVM |
| Manual |
Yes |
| Connectivity technology |
Wired |
