Description
ATEN PSD PP v4.0 Secure KVM Switch CS1188D4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1188D4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

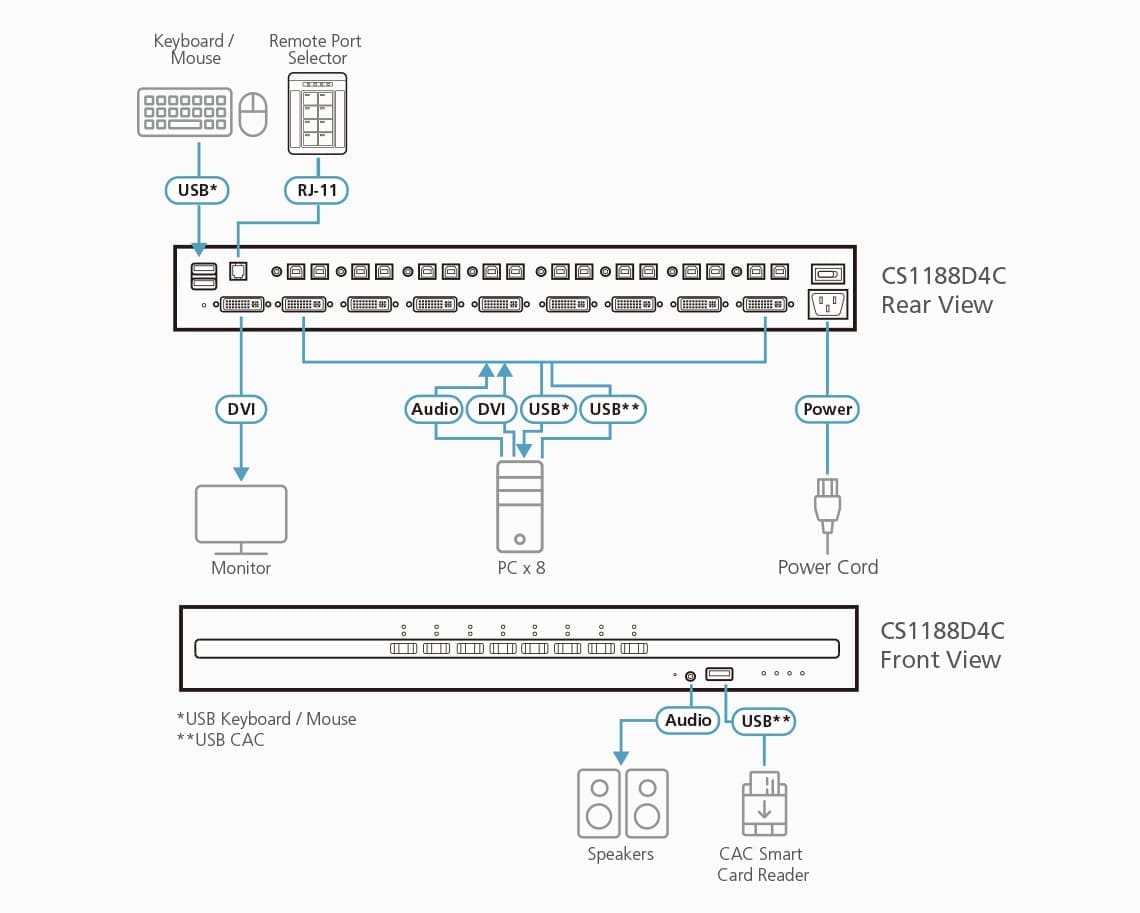

ATEN PSD PP v4.0 Secure KVM Switch CS1188D4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM SwitchCS1188D4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi – layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1188D4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
| Feature |
Feature Value |
| Number of computers controlled |
8 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DVI-I |
| Console ports |
DVI-I, USB A |
| DVI-I ports quantity |
8 |
| USB 2.0 Type-B ports quantity |
16 |
| Console USB ports quantity |
2 |
| Console DVI-I ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-B |
| Audio connections |
Yes |
| Headphone outputs |
9 |
| RJ-11 ports quantity |
1 |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Video bandwidth |
30 Hz |
| Rack mounting |
Yes |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Built-in display |
No |
| Power source |
AC |
| Input voltage |
100 – 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
1 A |
| Power consumption (typical) |
11 W |
| Compliance certificates |
RoHS |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
432.4 mm |
| Depth |
204.9 mm |
| Height |
65.5 mm |
| Weight |
3 kg |
| Cables included |
AC |
| Manual |
Yes |
