Description

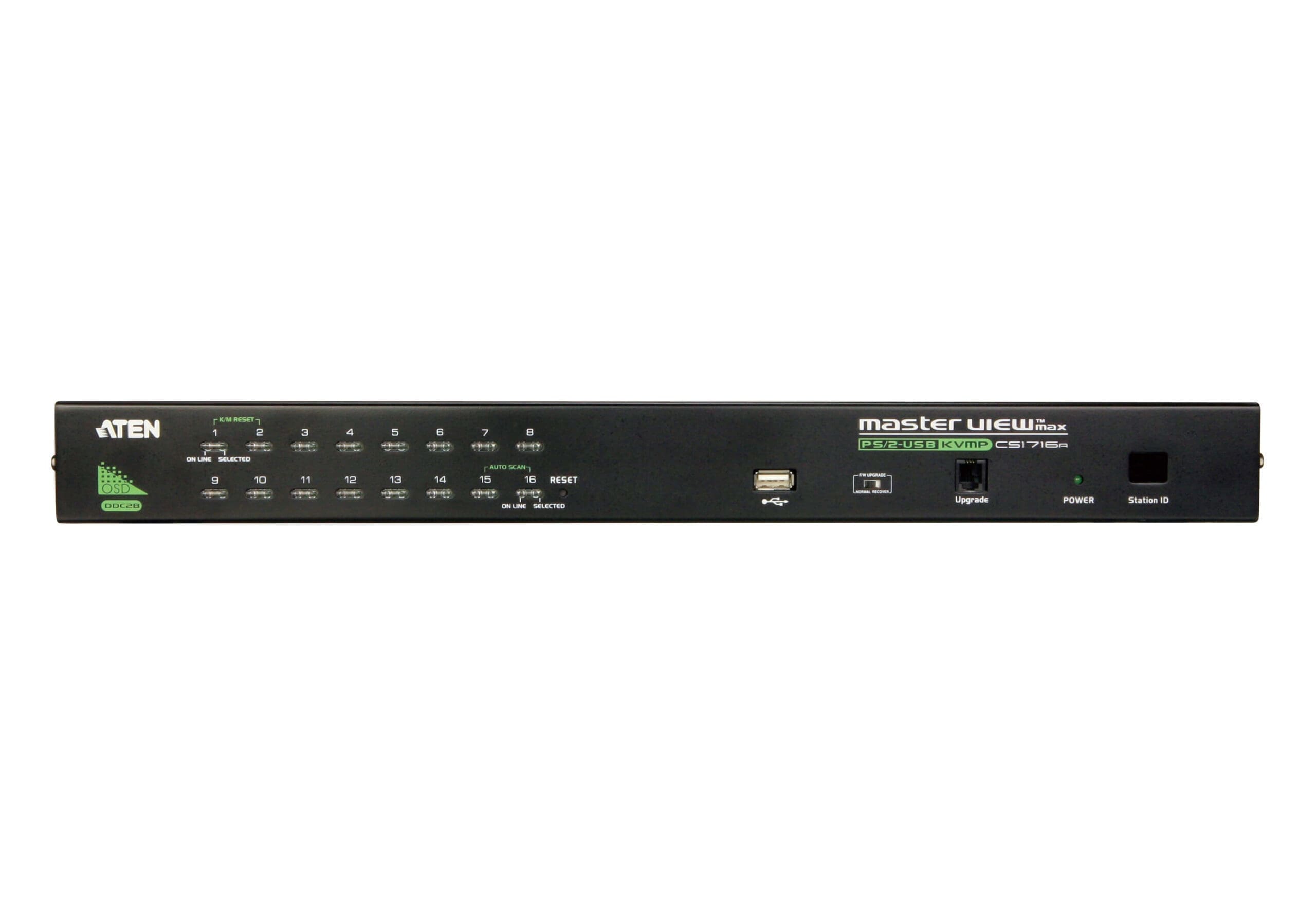

The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
| Feature |
Feature Value |
| Number of computers controlled |
512 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| Console ports |
USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
17 |
| Console USB ports quantity |
1 |
| DC-in jack |
Yes |
| Maximum resolution |
2048 x 1536 pixels |
| Scan interval |
1,255 s |
| DDC2B support |
No |
| Hot-Plug support |
Yes |
| Daisy chain |
Yes |
| Firmware upgradeable |
Yes |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Built-in display |
No |
| On Screen Display (OSD) |
Yes |
| Power source |
DC |
| DC input voltage |
5.3 V |
| Power consumption (typical) |
6.6 W |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Other operating systems supported |
Yes |
| Sustainability certificates |
RoHS |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
437.2 mm |
| Depth |
159.9 mm |
| Height |
44 mm |
| Weight |
2.85 kg |
| Cables included |
KVM |
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Rack mount kit |
Yes |
| Harmonized System (HS) code |
85176200 |
