Description

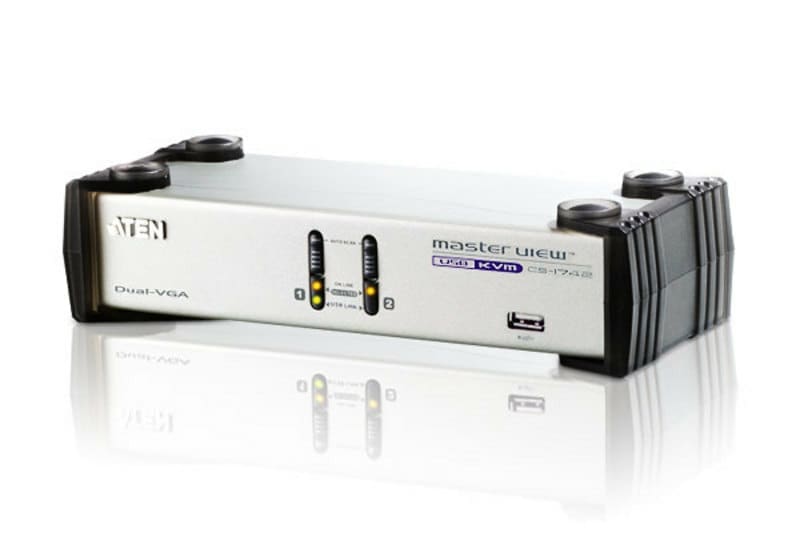

CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.
Features:
-Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
-2 port USB Hub built in
-Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
-With speaker and microphone support
-Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
-Buzzer On/Off via hotkey
-Keyboard and mouse emulation for error free booting
-Computer selection via front panel pushbuttons and hotkeys
-Superior video quality – up to 2048 x 1536; DDC2B
-Firmware upgradeable
-OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
-SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
1x 2-Port USB Dual-View KVMP™ Switch
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
2x Custom KVM Cable (VGA, Audio; 1.8m/6ft)
1x Firmware Upgrade Cable
1x User Instructions
| Feature |
Feature Value |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |

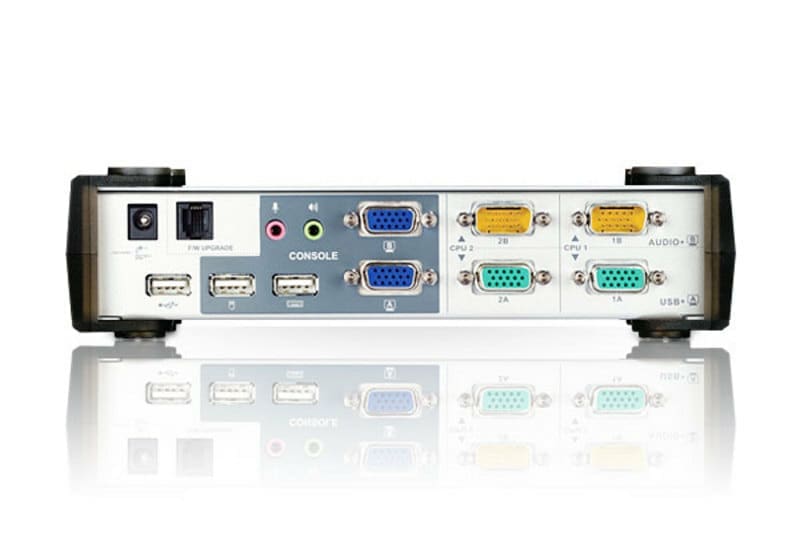

| Console ports |
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
6 |
| Console USB ports quantity |
2 |
| USB hub |
Yes |
| USB 2.0 ports quantity |
4 |
| USB connector type |
USB Type-A |
| USB version |
2.0 |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| Number of microphone inputs |
1 |
| DC-in jack |
Yes |
| Maximum resolution |
2048 x 1536 pixels |
| Scan interval |
1,99 s |
| DDC2B support |
Yes |
| Firmware upgradeable |
Yes |
| Rack mounting |
No |
| Product colour |
Silver |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
1.25 W |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Other operating systems supported |
Yes |
| Compliance certificates |
RoHS |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
210 mm |
| Depth |
88 mm |
| Height |
55.5 mm |
| Weight |
820 g |
| Cables included |
KVM |
| Manual |
Yes |
| Harmonized System (HS) code |
85176200 |
