8-Port USB 3.0 4K 60Hz DisplayPort KVMP Switch

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: CS19208-AT-E Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

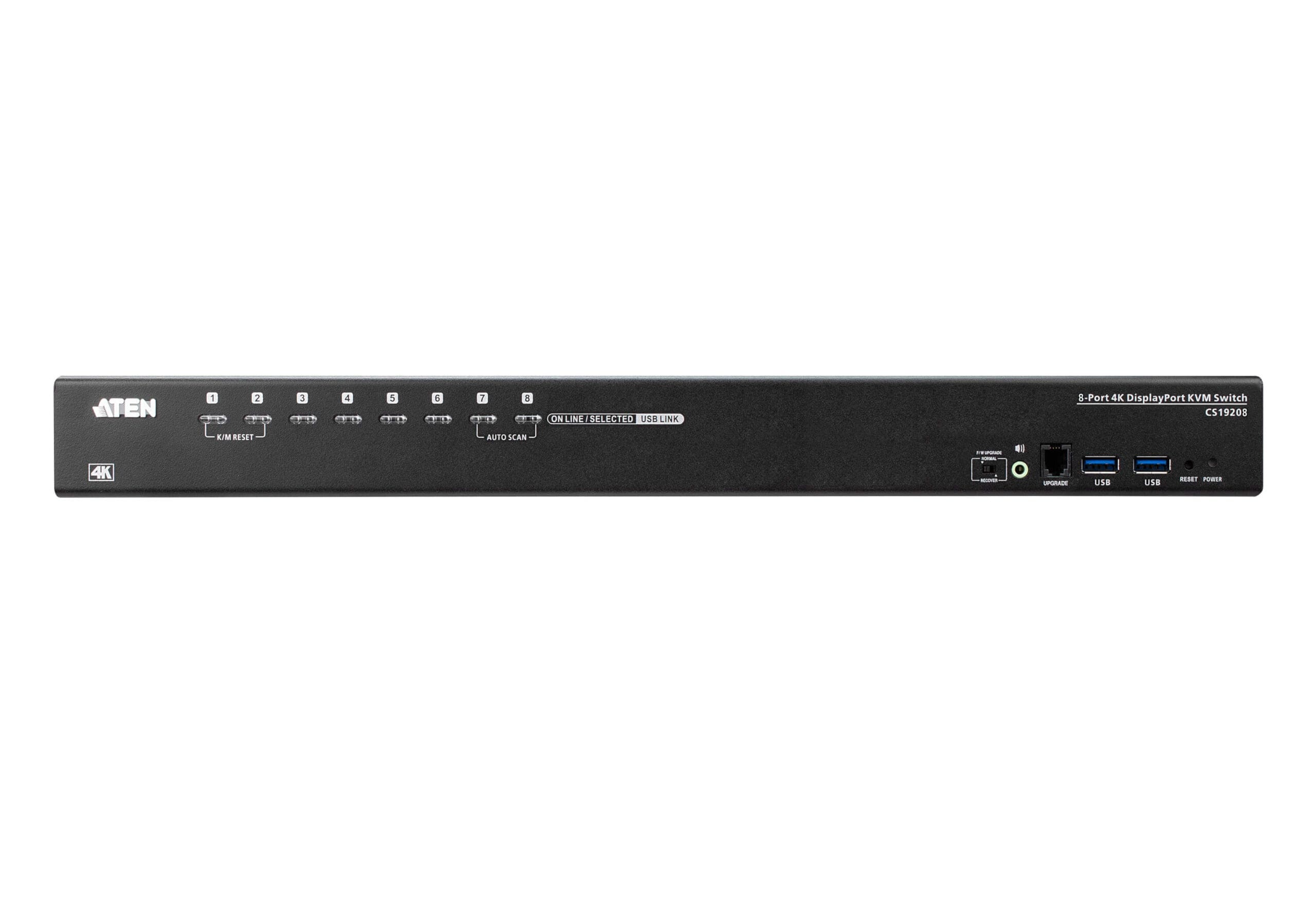

The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x 0AD8-8012-33MG + LIN2-418K-E12G Power Adapter
1x User Instructions

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Console ports 3.5mm headphone, DisplayPort, HDMI, USB A
DisplayPorts quantity 8
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 8
Console USB ports quantity 2
USB hub Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 9
Number of microphone inputs 1
DC-in jack Yes
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 60 Hz
Scan interval 1,5,255 s
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display No
Input voltage 12 V
Power consumption (typical) 18.44 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 432.4 mm
Depth 214.3 mm
Height 44 mm
Weight 3.75 kg
Package width 133 mm
Package depth 499 mm
Package height 324 mm
Package weight 4.83 kg
Quick installation guide Yes
Manual Yes

Additional information

Mouse port type

USB
Console ports

3.5mm headphone, DisplayPort, HDMI, USB A
USB hub

Yes
USB connector type

USB Type-A, USB Type-B
Headphone outputs

9
DC-in jack

Yes
Maximum resolution

4096 x 2160 pixels
Scan interval

1,5,255 s
Housing material

Metal
Push button

Yes
Built-in display

No
Power consumption (typical)

18.44 W
Storage temperature (T-T)

-20 – 60 °C
Depth

214.3 mm
Weight

3.75 kg
Package depth

499 mm
Package weight

4.83 kg
Manual

Yes
Keyboard port type

USB
Video port type

DisplayPort
DisplayPorts quantity

8
Console USB ports quantity

2
Audio connections

Yes
Number of microphone inputs

1
HD type

4K Ultra HD
Video bandwidth

60 Hz
Product colour

Black
LED indicators

Yes
Hot keys

Yes
Input voltage

12 V
Operating temperature (T-T)

0 – 40 °C
Width

432.4 mm
Height

44 mm
Package width

133 mm
Package height

324 mm
Quick installation guide

Yes

Brand

Aten
