Description

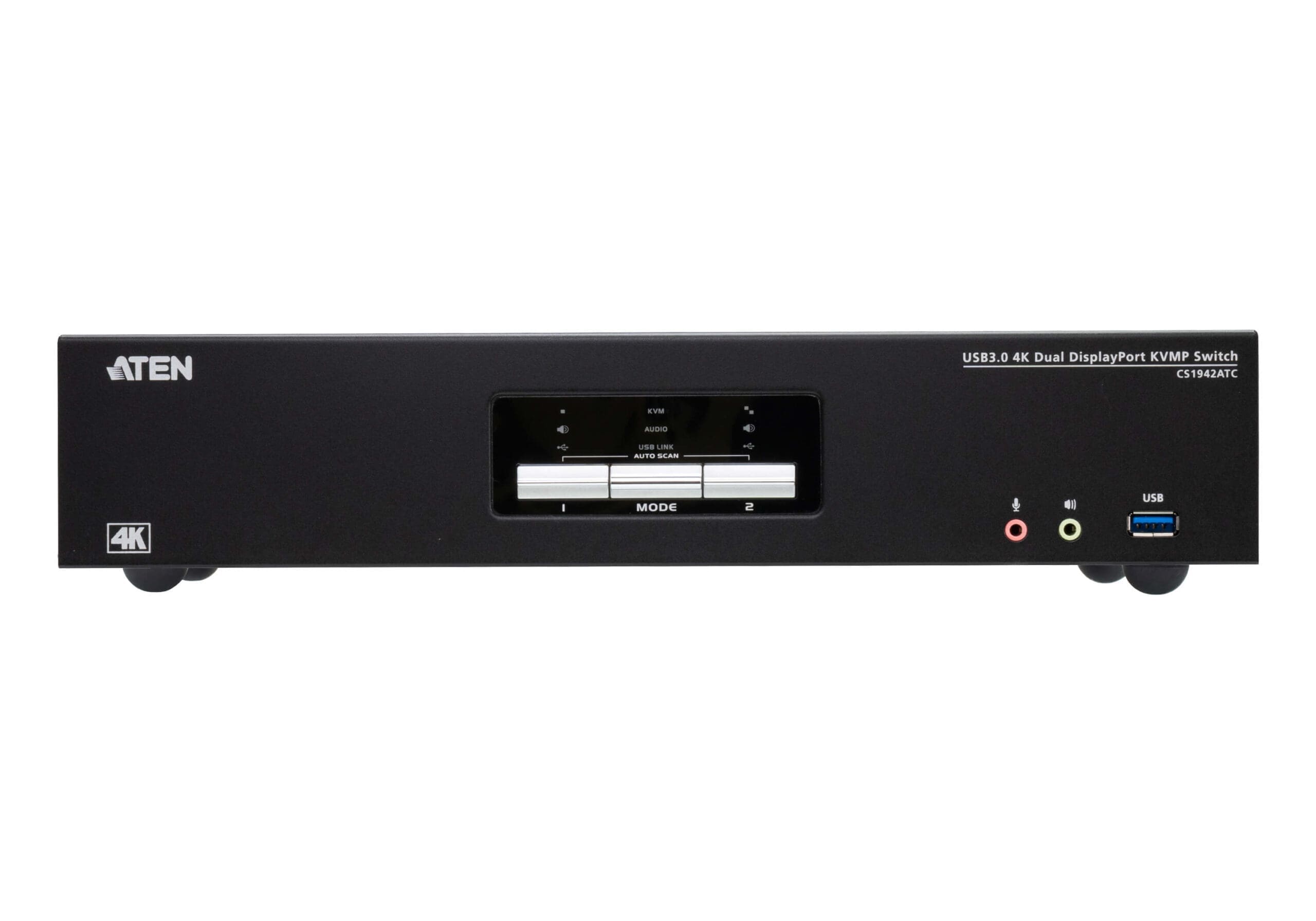

The ATEN CS1942ATC 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes. Incorporating dual display capability, users can enjoy a wider screen and easy switch between the two DisplayPort systems.
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.
| Feature |
Feature Value |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
3 |
| DisplayPorts quantity |
4 |
| Console USB ports quantity |
2 |
| Console DisplayPorts ports quantity |
2 |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| USB connector type |
Micro-USB, USB Type-A |
| Audio connections |
Yes |
| Headphone outputs |
2 |
| Number of microphone inputs |
2 |
| RJ-11 ports quantity |
1 |
| DC-in jack |
Yes |
| HD type |
4K Ultra HD |
| Maximum resolution |
4096 x 2160 pixels |
| Video bandwidth |
60 Hz |
| Firmware upgradeable |
Yes |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
No |
| Built-in display |
Yes |
| Power source |
DC |
| DC input voltage |
12 V |
| Power consumption (typical) |
17.8 W |
| Operating temperature (T-T) |
0 – 20 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
161 mm |
| Depth |
335 mm |
| Height |
65.5 mm |
| Weight |
1.88 kg |
| Package width |
133 mm |
| Package depth |
499 mm |
| Package height |
324 mm |
| Package weight |
4.21 kg |
| Harmonized System (HS) code |
84718000 |
| Master (outer) case width |
427 mm |
| Master (outer) case length |
519 mm |
| Master (outer) case height |
348 mm |
| Master (outer) case gross weight |
13.7 kg |
| Country of origin |
Taiwan |
