Description

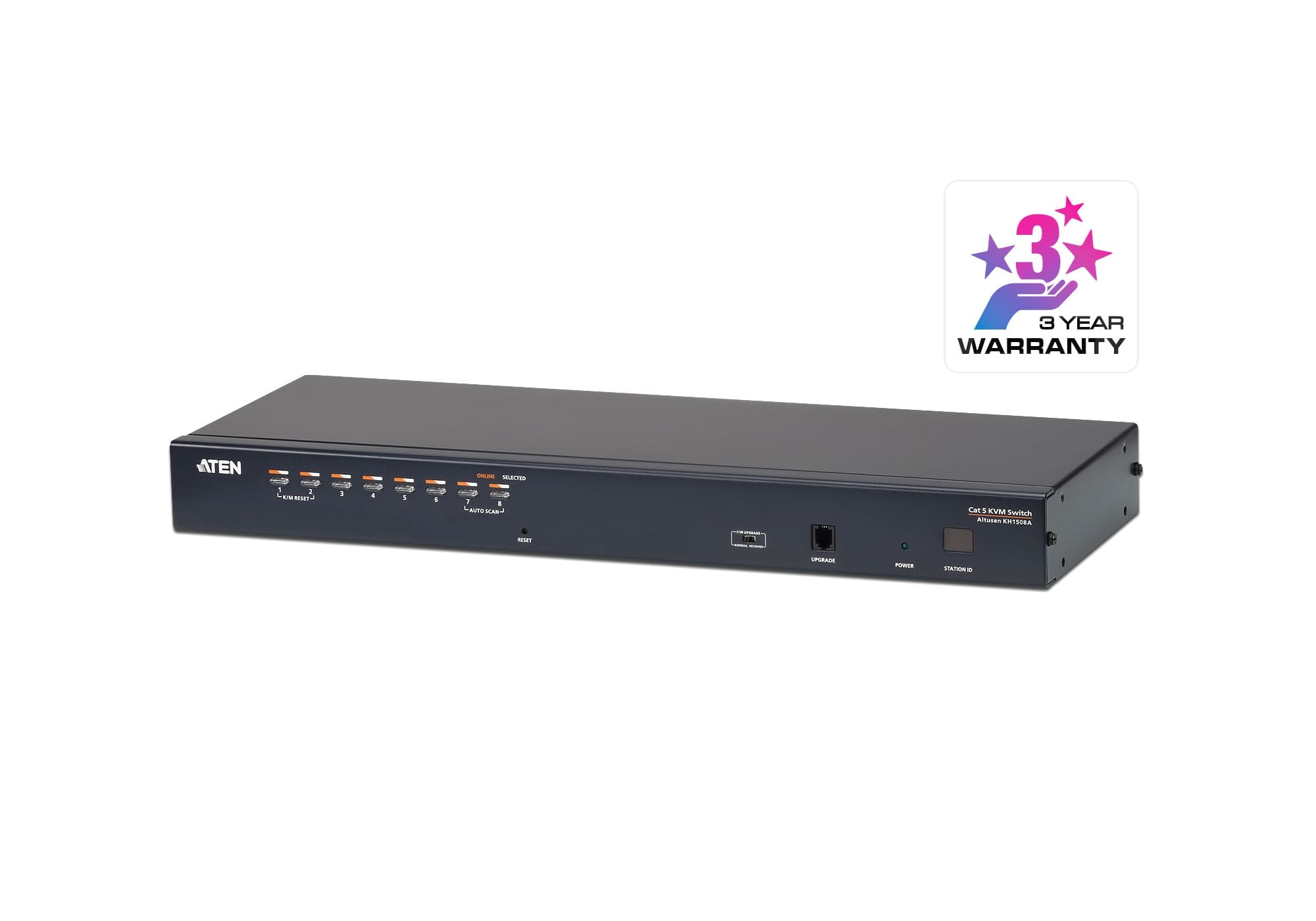

The KH1508A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 8 computers. By daisy chaining up to 31 additional switches, as many as 256 computers can be controlled from the original KVM console.
These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
For example, the advanced Adapter ID feature stores the Adapter Cable’s configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Another advantage found in these switches is Full HD video quality – extending the distance to the servers to up to 30 m at a resolution of 1920 x 1200 *.
In addition, the switches are compatible with ATEN KVM adapter cable. This allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types.
A KH1508A installation provides one of the best, and most economical, solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH1508A KVM switch.
| Feature |
Feature Value |
| Number of computers controlled |
8 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| Console ports |
PS/2 |
| Console USB ports quantity |
2 |
| Console RJ-45 ports quantity |
8 |
| RJ-11 ports quantity |
1 |
| AC-in ports quantity |
1 |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
8 |
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
1,255 s |
| Daisy chain |
Yes |
| Number of users |
256 user(s) |
| Firmware upgradeable |
Yes |
| Rack mounting |
Yes |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Built-in display |
No |
| On Screen Display (OSD) |
Yes |
| Power source |
AC |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
5.1 W |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Width |
437.2 mm |
| Depth |
163.6 mm |
| Height |
44 mm |
| Weight |
2.65 kg |
| Cables included |
AC |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Rack mount kit |
Yes |

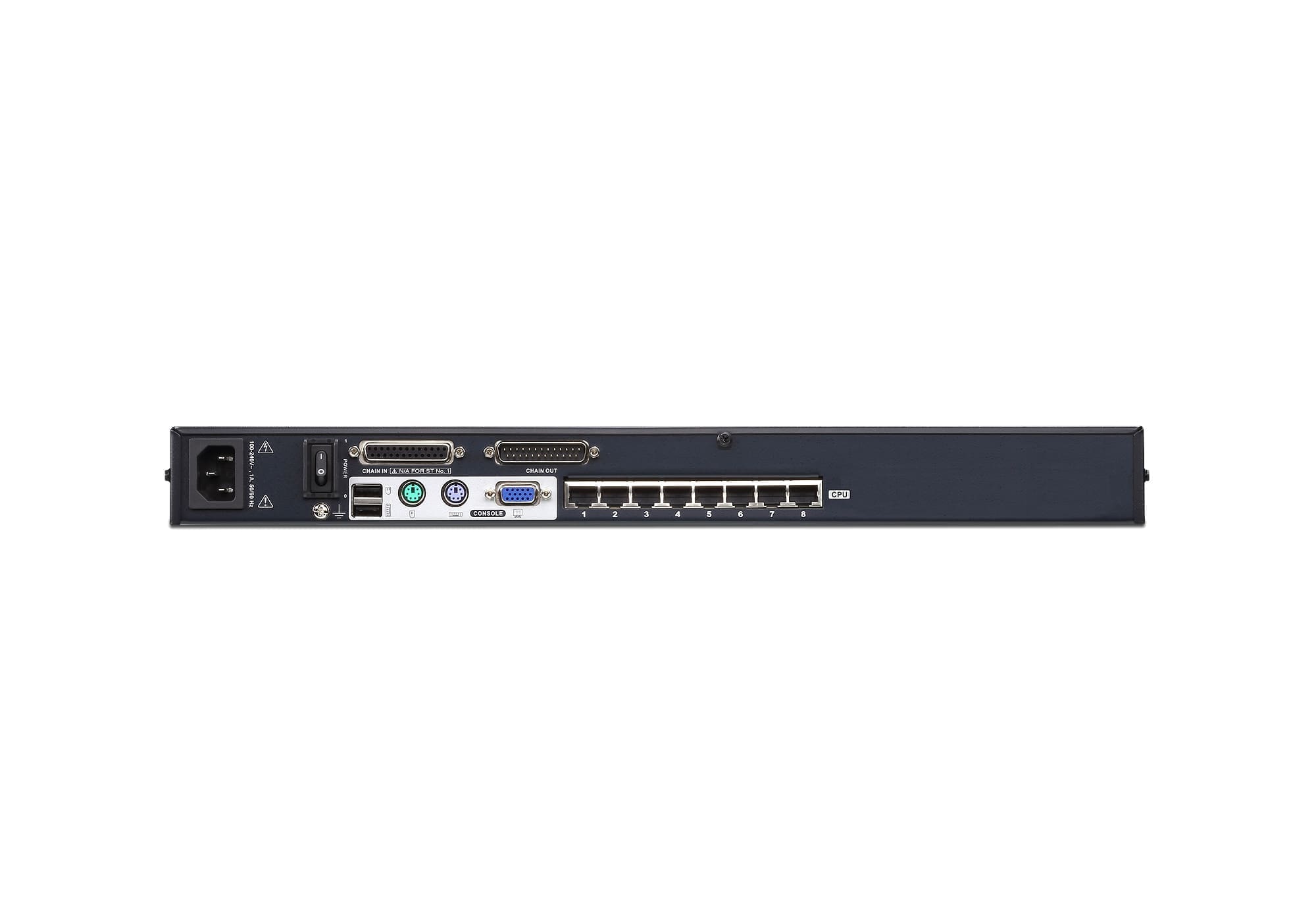

| I/O ports |
1 x DB-25 Female
1 x DB-25 Male |
