Description

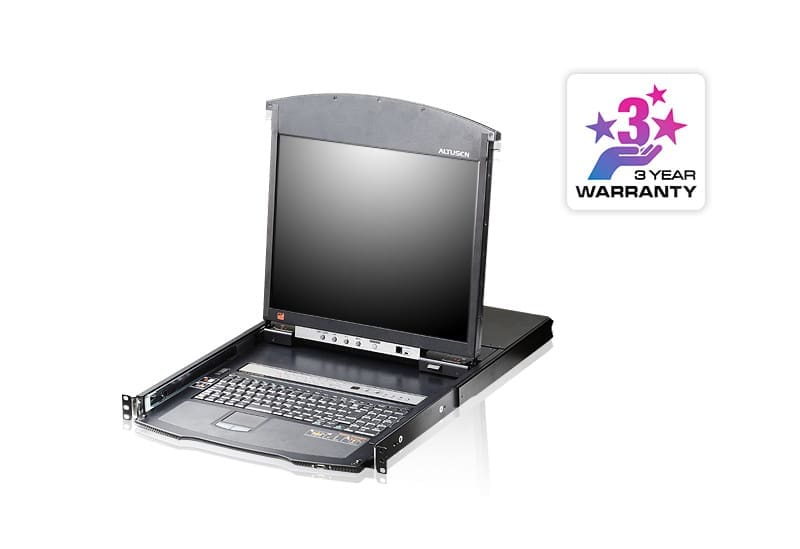

The KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.
The KL1508Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
1x KL1508Ai Dual Rail LCD KVM Switch
1x LIN2-418K-E12G Power Cord
1x Standard Rack Mount Kit
1x LIN5-04A2-J11G Firmware Upgrade Cable
2x L Brackets
1x User Instructions
| Feature |
Feature Value |
| Number of computers controlled |
8 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| Console ports |
PS/2, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
1 |
| Console USB ports quantity |
2 |
| USB connector type |
USB Type-A |
| PS/2 ports quantity |
2 |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
1,255 s |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Built-in display |
Yes |
| Display |
LCD |
| Display diagonal |
43.2 cm (17″) |
| On Screen Display (OSD) |
Yes |
| Power source |
AC |
| Input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Input current |
1 A |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Width |
480 mm |
| Depth |
701.2 mm |
| Height |
44 mm |
| Weight |
15.5 kg |
| Quick installation guide |
Yes |
| Manual |
Yes |
