Description
Hardware

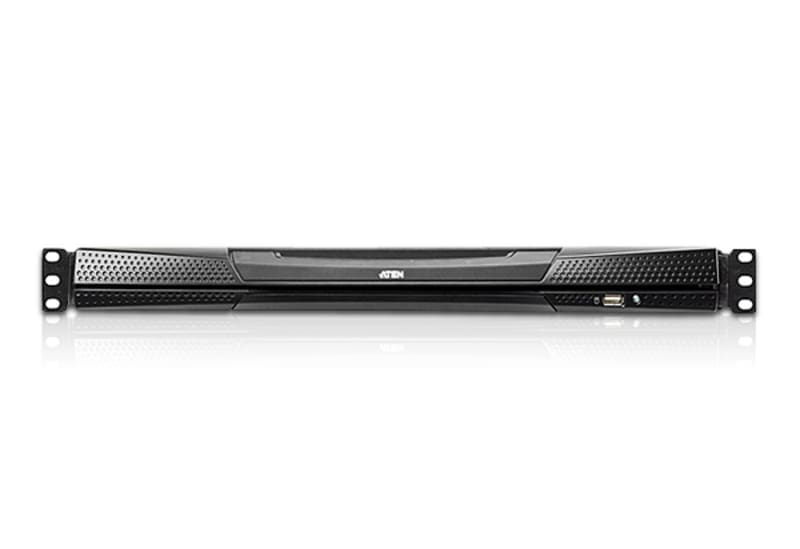

– Integrated KVM console with 17¨ or 19¨ LCD monitor in a Dual Rail housing
– A single console controls up to 16 computers
– Daisy chain up to 15 additional KVM switches to control up to 256 computers*

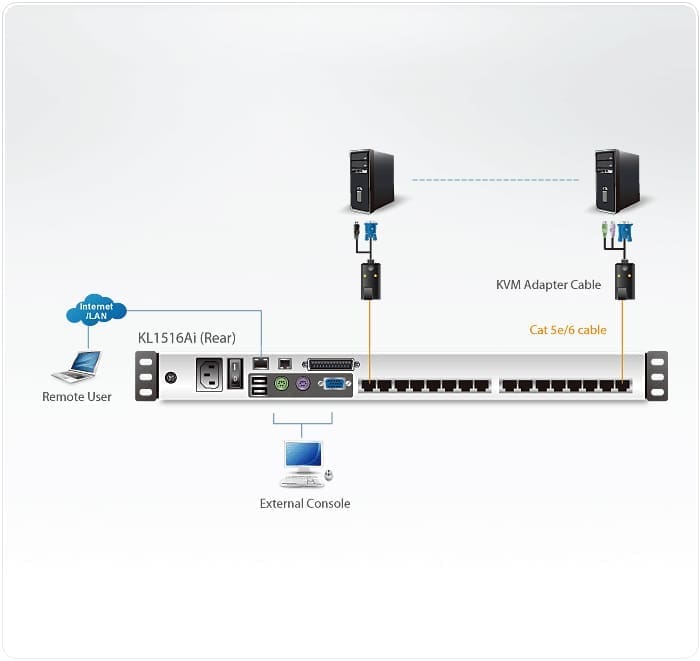

– One bus for remote KVM over IP access

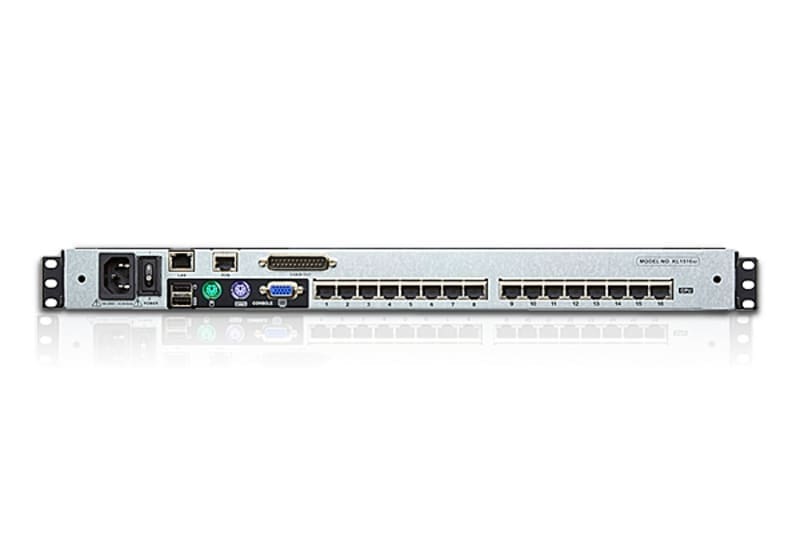

– Space-saving RJ-45 connectors and Cat 5e/6 cabling
– KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
– Extra console por – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
– Multiplatform support: PC, Mac, Sun and Serial
– Supports external USB mouse
– Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
– Dual Rail – LCD monitor slides independently of the keyboard/touchpad
– LCD module rotates up to 120 degrees for a more comfortable viewing angle
– Console lock – enables the console drawer to remain securely locked away in position when not in use
– LCD power button helps save energy and prolong displays´ life
Management
– Up to 64 user accounts – up to 32 concurrent remote logins
– End session feature – administrators can terminate any running session
– Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
– Port Share Mode allows multiple users to gain access to a server simultaneously
– Remote power control for attached Power Over the NET™ devices
– Integration with ALTUSEN CC2000 Management software
– Event logging and Windows-based Log Server support
– Local Log Event
– Firmware upgradeable
– IPv6 capable
Easy-to-Use Interface
– Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
– Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
– Multiplatform client support (Windows, Mac OS X, Linux, Sun)
– Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
– Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
– Panel Array Mode™
– Keyboard broadcast* – keyboard input can be duplicated on all the attached servers
Advanced Security
– Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
– 128-bit SSL encryption to protect password when users log in
– Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
– IP/MAC Filter support for enhanced security protection
– Configurable user and group permissions for server access and control
Virtual Remote Desktop
– Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
– Full-screen or sizable and scalable Virtual Remote Desktop
– Message board feature allows logged in users to communicate with each other
– Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
– On-screen keyboard with multi language support
– BIOS-level access
Package Contents
– 1x KL1516Ai Dual Rail LCD KVM Switch
– 1x 1ADP-0005-005G Power Cord
– 1x Standard Rack Mount Kit
– 1x Firmware Upgrade Cable
– 1x User Instructions
| Feature |
Feature Value |
| Number of computers controlled |
16 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| DC-in jack |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
16 |
| Cabling technology |
10/100Base-T(X) |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Maximum resolution |
1600 x 1200 pixels |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Metal |
| LED indicators |
Yes |
| Built-in display |
Yes |
| Display |
LCD |
| Display diagonal |
43.2 cm (17″) |
| AC input voltage |
120-230 V |
| AC input frequency |
50 – 60 Hz |
| Power consumption (typical) |
34 W |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Width |
480 mm |
| Depth |
701.2 mm |
| Height |
44 mm |
| Weight |
16 kg |
| Manual |
Yes |
| Connectivity technology |
Wired |
| I/O ports |
1 x DB-25
1 x RJ-11 |
