Description

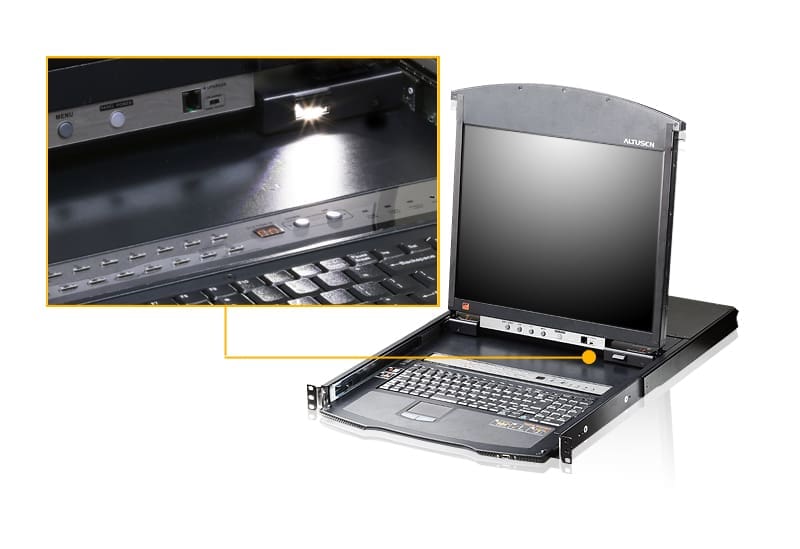

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.
The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
Compact, high-density, RJ-45 connectors and Cat 5e/6 cable make for a compact, efficient, wiring configuration, while the use of KVM Adapter Cables to link to the computers, permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
For added convenience, ports for an external keyboard, monitor, and mouse are provided on the rear panel – permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad.
Enhanced features include a Panel Array Mode™ that displays the video output of up to 16 computers at the same time, and a Message Board that allows logged in users to conveniently and instantly communicate with one other – no matter where in the world they actually are. The KL1516Ai is an ideal solution for your server room management.
| Feature |
Feature Value |
| Number of computers controlled |
256 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| Console ports |
PS/2, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
1 |
| Console USB ports quantity |
2 |
| PS/2 ports quantity |
2 |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
18 |
| Cabling technology |
10/100Base-T(X) |
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
1,255 s |
| Auto scan delay (min) |
1 s |
| Auto scan delay (max) |
255 s |
| Daisy chain |
Yes |
| Firmware upgradeable |
Yes |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Built-in display |
Yes |
| Display |
LCD |
| Display diagonal |
43.2 cm (17″) |
| On Screen Display (OSD) |
Yes |
| Power source |
AC |
| Input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Input current |
1 A |
| Power consumption (typical) |
23.1 W |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
480 mm |
| Depth |
701.2 mm |
| Height |
44 mm |
| Weight |
15.2 kg |
| Cables included |
AC, KVM |
| Manual |
Yes |
| Rack mount kit |
Yes |
