Description

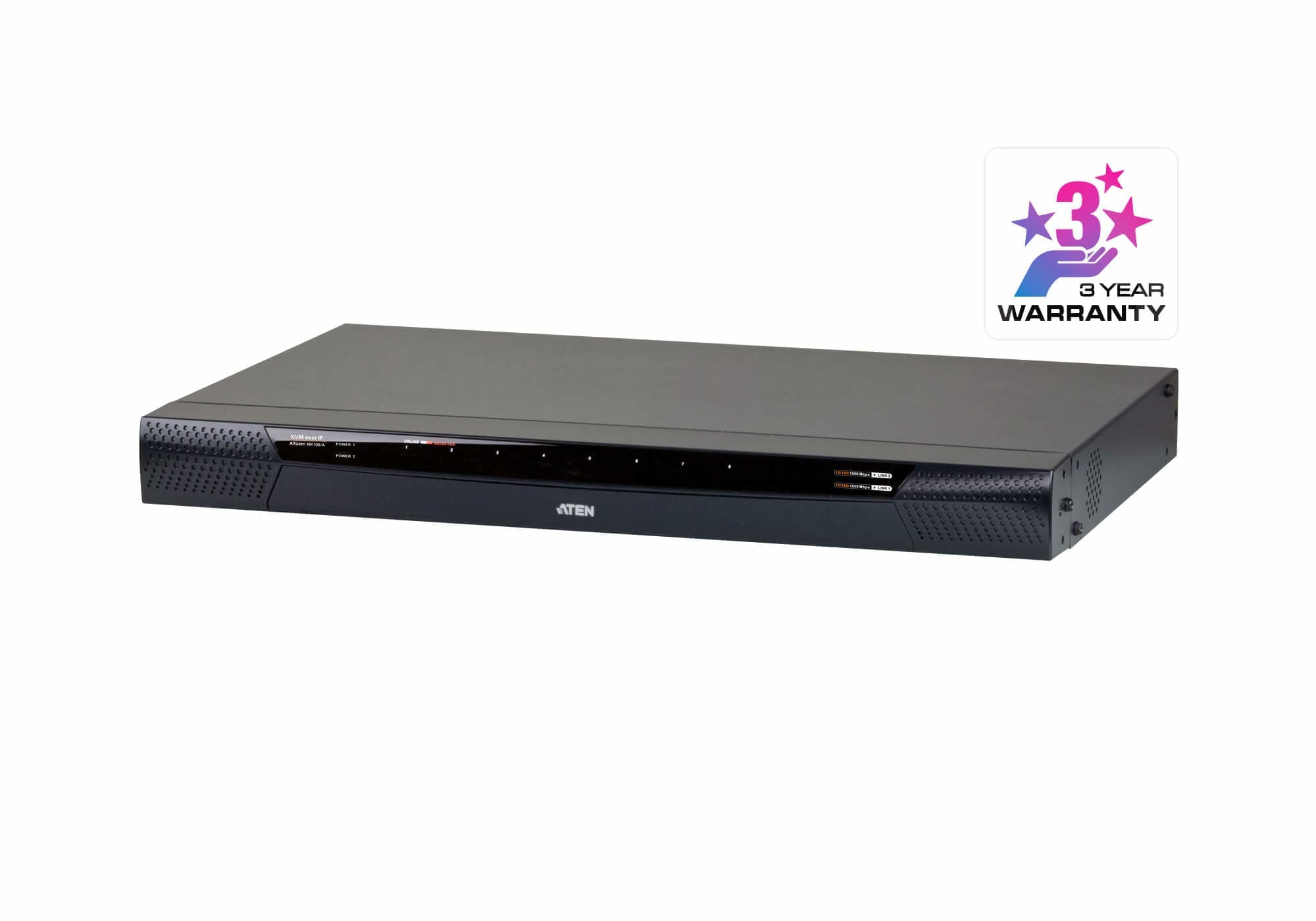

Aten’s new generation of KVM over IP switches – KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
1x KN1108VA KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x LIN2-418K-E12G Power Cords
1x LIN6-04U1-M18G Laptop USB Console Cable
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
| Feature |
Feature Value |
| Number of computers controlled |
8 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| Console ports |
USB A |
| Console USB ports quantity |
2 |
| USB hub |
Yes |
| USB 2.0 Type-A hub ports quantity |
3 |
| USB connector type |
Mini-USB B, USB Type-A |
| PS/2 ports quantity |
2 |
| Serial port type |
RJ-45 |
| Serial ports quantity |
2 |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| Number of microphone inputs |
1 |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
14 |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Security algorithms |
802.1x RADIUS, FIPS 140-2, RSA, SSL/TLS |
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Scan interval |
1,255 s |
| Number of users |
64 user(s) |
| Firmware upgradeable |
Yes |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Metal |
| Wired remote switch |
Yes |
| Cascadable |
Yes |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Built-in display |
No |
| Power source |
AC |
| Input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Input current |
1 A |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
438.4 mm |
| Depth |
287.8 mm |
| Height |
44 mm |
| Weight |
4.37 kg |
| Cables included |
AC |
| Manual |
Yes |
| Rack mount kit |
Yes |
