ATEN KN4116VA-AX-E KVM switch Rack mounting G
Part No:
KN4116VA-AX-E
Price Locked for 30 Days:
Lock Added: N/A
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers.
This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

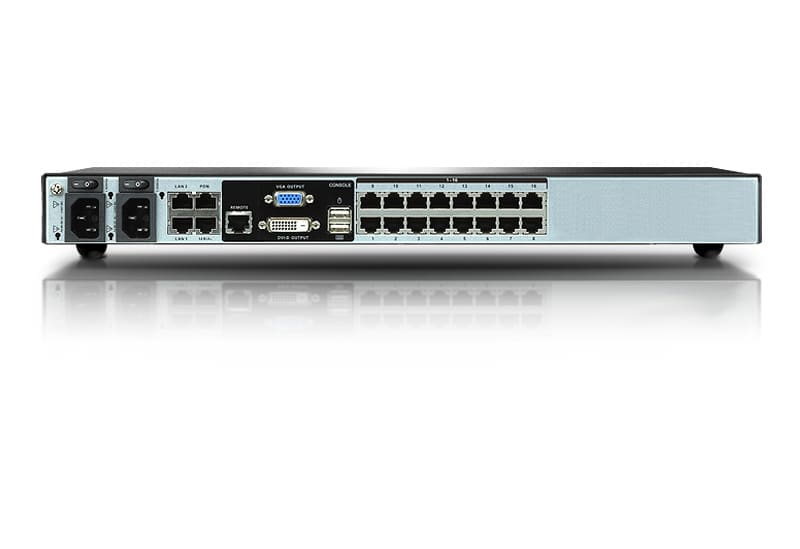

16 Port CAT5 High Density KVM Switch over IP with 1 local console and 4 remote user access (5 bus), Cascade, Panel Array Mode, Out-of-band access, Smart Card Reader and Virtual Media Support
Related products
Description
682616
| Feature | Feature Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D/VGA |
| Console ports | DVI-D, RJ–45, USB A, VGA (D-Sub) |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 3 |
| USB connector type | Mini-USB, USB Type-A |
| Serial port type | RJ-45 |
| Serial ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 20 |
| Cabling technology | 10/100/1000Base-T(X) |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 255 s |
| Rack mounting | Yes |
| Product colour | Grey |
| Rack capacity | 1U |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Built-in display | No |
| Power source | AC |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Input current | 1 A |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 433.6 mm |
| Depth | 412.1 mm |
| Height | 44 mm |
| Weight | 6.63 kg |
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Additional information
| Mouse port type | USB |
|---|---|
| Console ports | DVI-D, RJ–45, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity | 1 |
| USB hub | Yes |
| USB connector type | Mini-USB, USB Type-A |
| Serial ports quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 20 |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Auto scan delay (min) | 1 s |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Cascadable | Yes |
| Push button | Yes |
| Power source | AC |
| AC input frequency | 50/60 Hz |
| Operating temperature (T-T) | 0 – 40 °C |
| Depth | 412.1 mm |
| Weight | 6.63 kg |
| Manual | Yes |
| Keyboard port type | USB |
| Video port type | DVI-D/VGA |
| DVI-D ports quantity | 1 |
| Console USB ports quantity | 2 |
| Serial port type | RJ-45 |
| Audio connections | Yes |
| Number of microphone inputs | 1 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,255 s |
| Auto scan delay (max) | 255 s |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Yes |
| Built-in display | No |
| AC input voltage | 100 – 240 V |
| Input current | 1 A |
| Storage temperature (T-T) | -20 – 60 °C |
| Width | 433.6 mm |
| Height | 44 mm |
| Cables included | AC |
| Rack mount kit | Yes |
