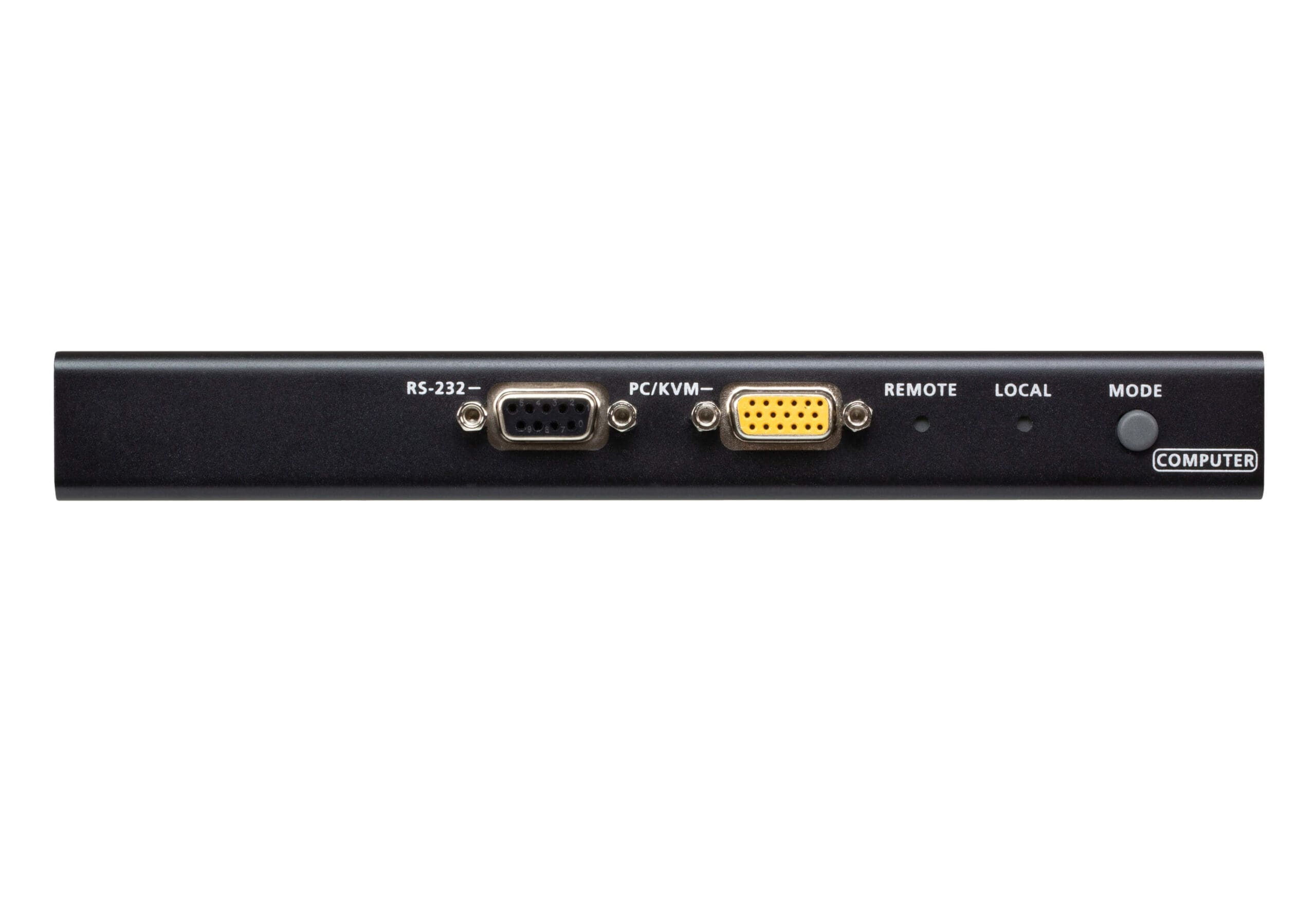

ATEN KVM Adapter Module with USB, PS/2, and RS-232 Local Console

Part No:

KA7174

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

USB/PS2 VGA Module witch console

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: KA7174 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

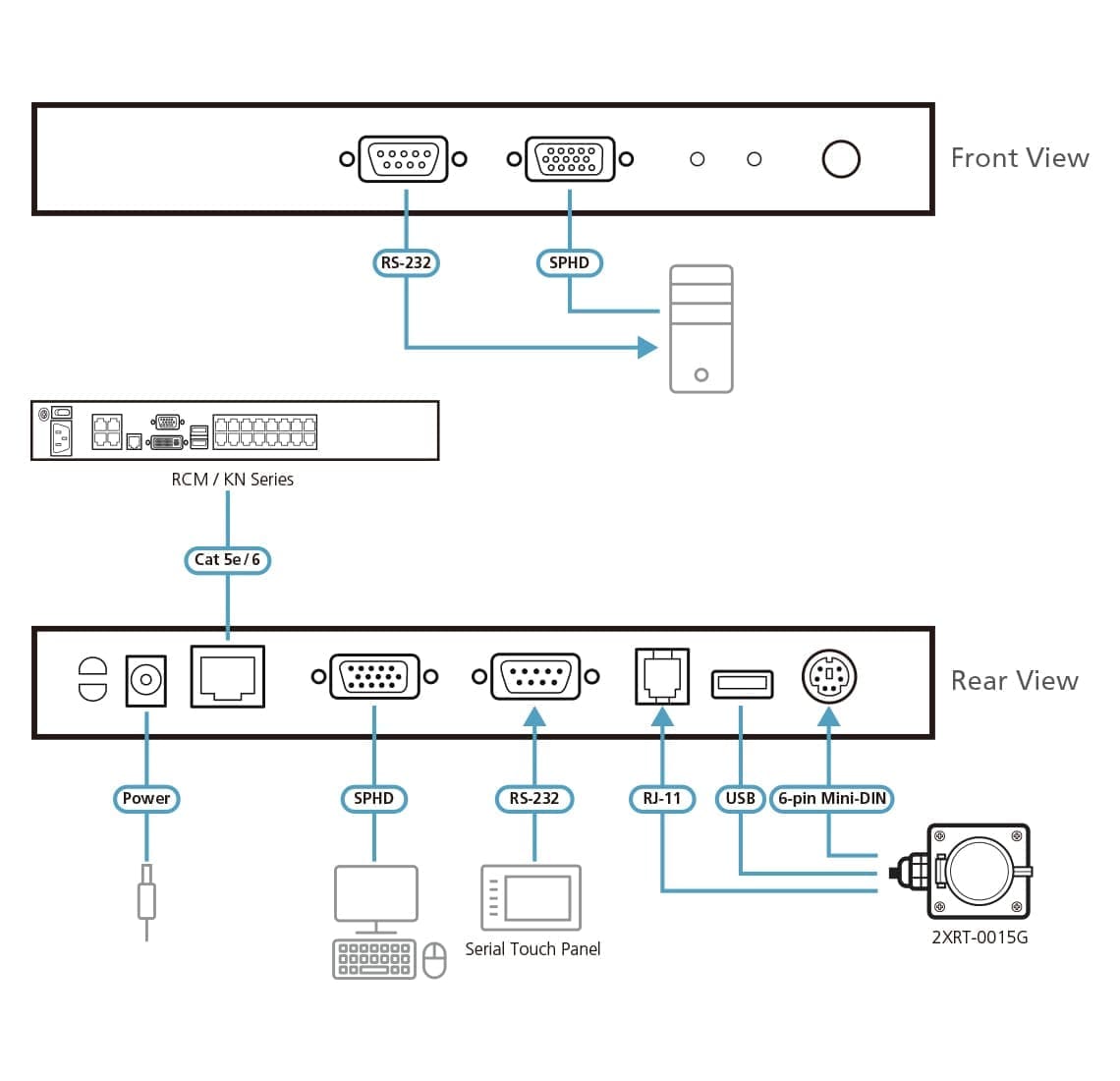

KA7174 KVM Adapter Module is designed to provide a convenient local console connection in a KVM over IP switch or matrix KVM installation. KA7174 allows a PS/2, USB, or RS-232 server to be connected to an ATEN KVM over IP switch via Cat 5e / 6 cable while providing an extra local console connection supporting USB or PS/2 keyboard and mouse, monitor, and / or RS-232 touch panel for convenient local operation. In addition, the KA7174 also features Privileged Console Control function with OSD tag notifications indicating denial of access to the local or remote users when configured as such.

Feature Feature Value
Console ports SPHD
Serial port type DE-9 (DB-9)
Serial ports quantity 2
DC-in jack Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Video bandwidth 60 Hz
Rack mounting No
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Built-in display No
DC input voltage 5 V
Power consumption (typical) 1.75 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Width 86.4 mm
Depth 203 mm
Height 25 mm
Weight 490 g
Package width 62 mm
Package depth 283 mm
Package height 173 mm
Package volume 3114.85 cm³
Package weight 1.02 kg
Package type Box
Packaging content 1x KA7174 KVM Adapter Module with USB, PS/2, and RS-232 Local Console
1x power adapter
1x KVM cable (VGA, USB, PS/2)
1x console cable (VGA, USB, PS/2)
1x foot pad set (4pcs)
1x user instructions
Harmonized System (HS) code 85176200
Master (outer) case width 300 mm
Master (outer) case length 336 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 5.61 kg
Master (outer) case volume 19538.62 cm³
Products per master (outer) case 5 pc(s)
Country of origin Taiwan
Compatibility KN2116VA,KN2132VA,KN4116VA,KN4132VA,KN4164V,2L-5301UP,KN8132V,2L-5302UP,KN8164V,2L-5303UP,KN2124VA,KN2140VA,KN4124VA,KN4140VA,VE-RMK1U,KN1132V,2XRT-0015G,KA7171AK

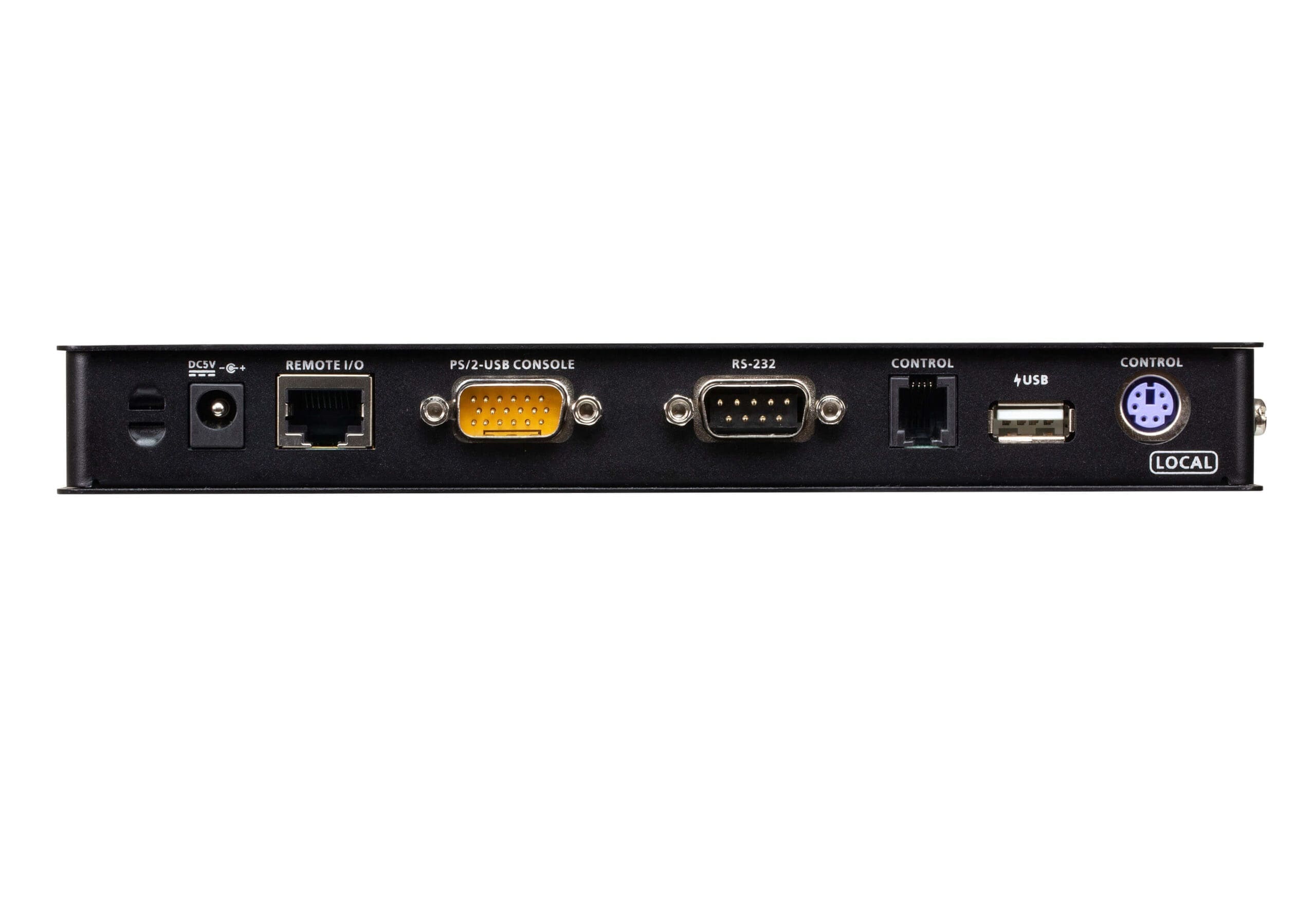

I/O ports 1 x SPHD, 1 x 6-pin Mini-DIN, 1 x USB Type A

Additional information

Console ports

SPHD
Serial ports quantity

2
Ethernet LAN

Yes
HD type

WUXGA
Video bandwidth

60 Hz
Product colour

Black
LED indicators

Yes
Built-in display

No
Power consumption (typical)

1.75 W
Storage temperature (T-T)

-20 – 60 °C
Depth

203 mm
Weight

490 g
Package depth

283 mm
Package volume

3114.85 cm³
Package type

Box
Harmonized System (HS) code

85176200
Master (outer) case length

336 mm
Compatibility

KN2116VA,KN2132VA,KN4116VA,KN4132VA,KN4164V,2L-5301UP,KN8132V,2L-5302UP,KN8164V,2L-5303UP,KN2124VA,KN2140VA,KN4124VA,KN4140VA,VE-RMK1U,KN1132V,2XRT-0015G,KA7171AK
Serial port type

DE-9 (DB-9)
DC-in jack

Yes
Ethernet LAN (RJ-45) ports

1
Maximum resolution

1920 x 1200 pixels
Rack mounting

No
Housing material

Metal
Push button

Yes
DC input voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Width

86.4 mm
Height

25 mm
Package width

62 mm
Package height

173 mm
Package weight

1.02 kg
Packaging content

1x KA7174 KVM Adapter Module with USB, PS/2, and RS-232 Local Console 1x power adapter 1x KVM cable (VGA, USB, PS/2) 1x console cable (VGA, USB, PS/2) 1x foot pad set (4pcs) 1x user instructions
Master (outer) case width

300 mm
Master (outer) case height

194 mm
Master (outer) case volume

19538.62 cm³
Country of origin

Taiwan
I/O ports

1 x SPHD, 1 x 6-pin Mini-DIN, 1 x USB Type A

Brand

Aten
